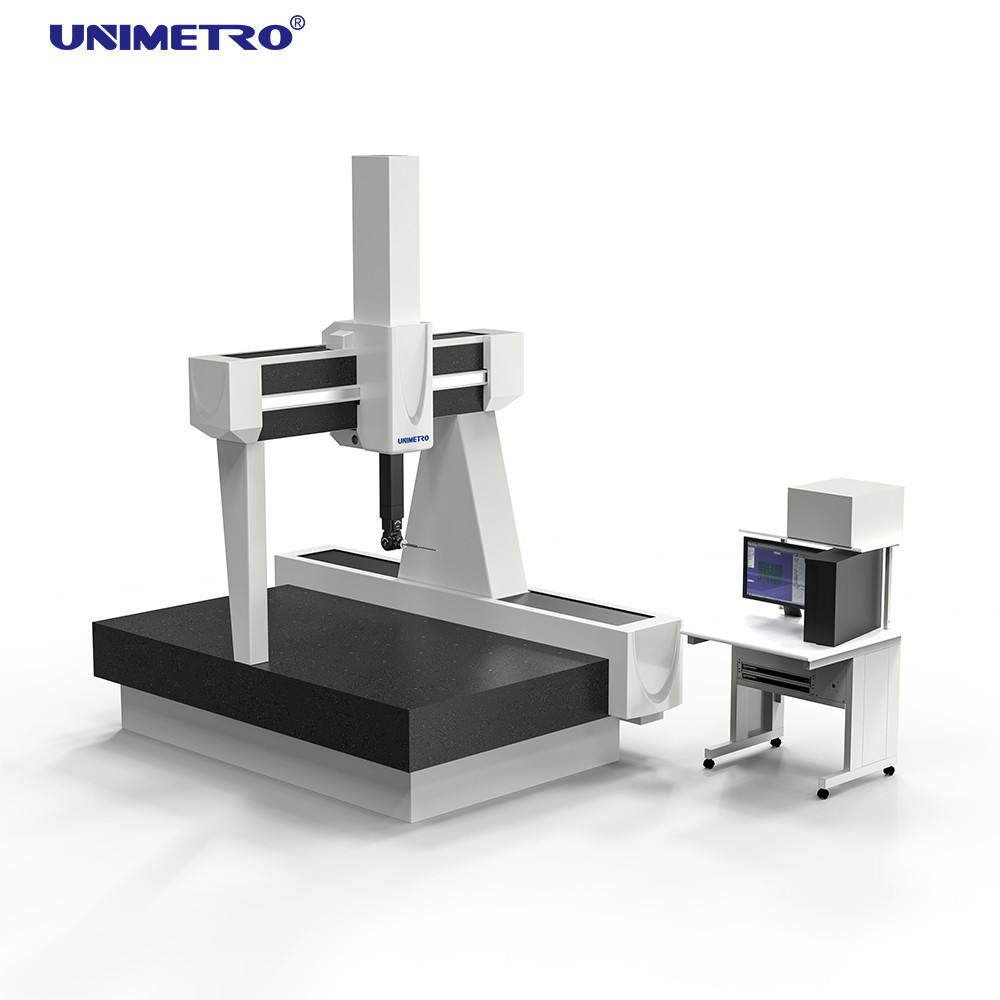

Coordinate Measuring Machine (CMM) Equipment with Small Hole Measurement Technology

"Helium" represents the highest precision measuring machine wholly developed and designed by UNIMETRO. Each component undergoes strict selection during manufacturing, ensuring perfect and timely integration during assembly. All measuring machines are certified according to ISO 10360-2 standards, utilizing two standardized acceptance procedures. Precision verification includes ultra-precision laser measurement and standardized testing with DKD-certified solid measures such as gauge blocks and ball plates.

Measuring SW: Rational-DMIS Advanced version (CAD)
Manual: Manual + disk

Includes joystick control with RENISHAW control system and MCU joystick
Probe sets: RENISHAW MH20i/MCP/PH10T+TP20/PH10M+TP200/PH10M+SP25M/PH10MQ+SP25M...
Probe stylus: RENISHAW M2 M3 stylus

• Patent double passive vibration damping: Integrated directly in the machine frame, allowing placement near production without special foundation requirements.
• High quality granite worktable: Made with high precision, heavy and stable natural granite from "Mount TAI" for superior vibration damping and performance.
• Enclosed guides in all axes: Protects guideways from damage, dirt, and direct thermal influences, suitable for dusty environments.
• Imported key parts: Utilizes famous brand components (servo motor, transmission system, pneumatic system) for optimal precision and service life.
• RENISHAW optical scale: High accuracy optical scale with 0.5um resolution for superior measurement precision.
• Air bearing surround guide way: 4-sided surrounded structure with multiple air pressure regulators and annular pneumatic bearing design for instrument stability.
• Small holes technology: Air consumption: 150NL/Min. Creates condensate zone between air bearing and guide way to offset heat from motion friction, improving thermal stability and long-term precision.

Rational-DMIS is a newly developed large-scale integrated 3D measurement software package designed to meet both beginner and advanced user requirements. Developed with full native DMIS kernel (ISO 22093:2003 standard), it represents the model for CMM measurement software standardization.
