Product Name: Gantry Type Coordinate Measuring Machine CMM For Automobile Inspection Model: Xeon
MPEe: ≤ 2.0+L/350 (μm) MPEp: 2.0μm
Waranty: 12 Months Advantage: Stable Structure, Large Range
High Light:

Gantry Type Coordinate Measuring Machines

,

CMM Coordinate Measuring Machines And Systems

,

ISO Coordinate Measuring Machines


Product Description



Gantry Type Coordinate Measuring Machine CMM For Automobile Inspection



Product overview

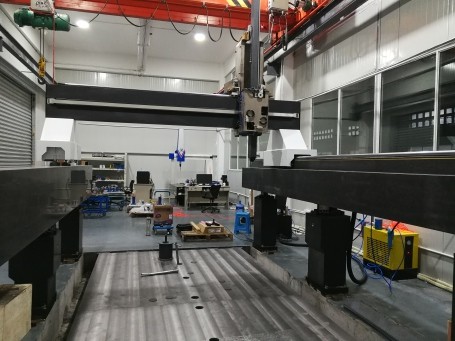

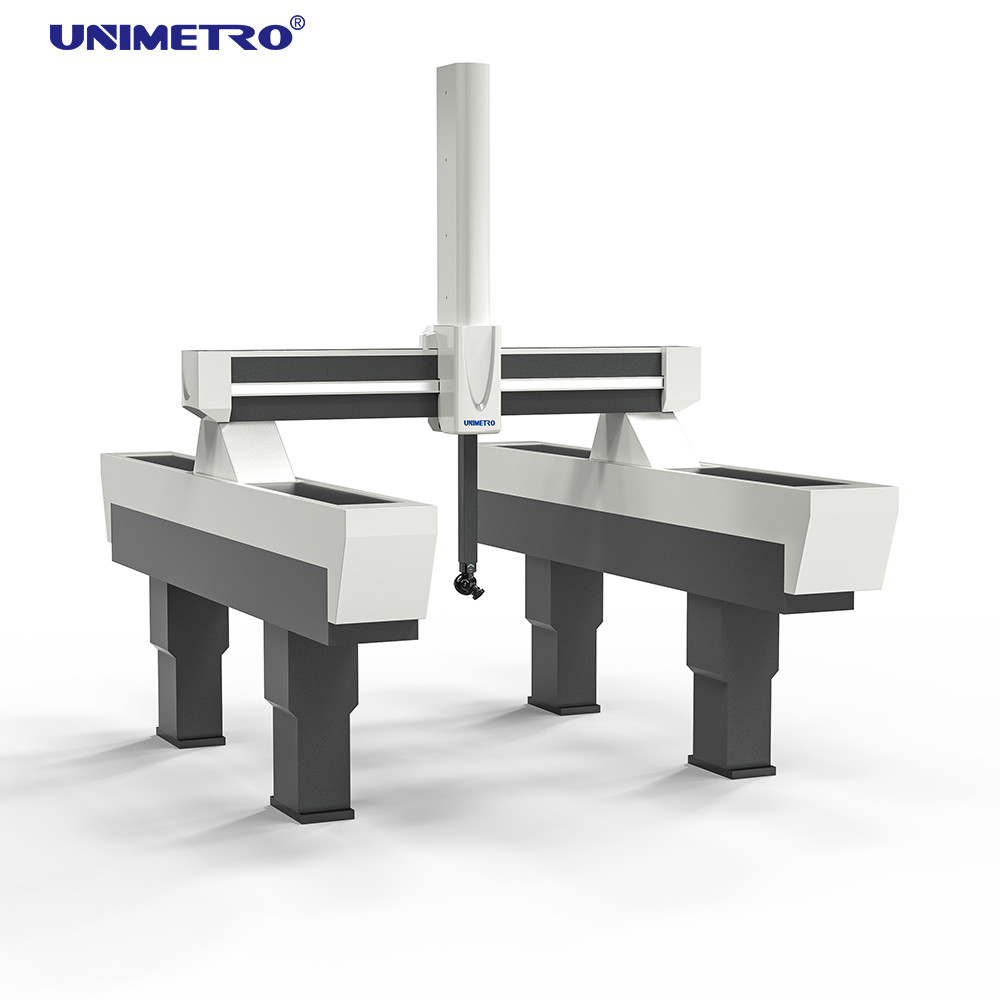

The Xe series gantry type three-coordinate measuring instrument adopts the measurement space overhead laser structure, which is characterized by high precision and is suitable for the measurement of jacks and parts structure. Optional trigger probe, analog scanning probe, scanning probe. For companies with the same large-scale structural parts, it can help solve difficult problems.

TECHNICAL PARAMETERS

Product name Gantry Type Coordinate Measuring Machine CMM For Automobile Inspection
  Travel range (mm) Accuracy (um)
Xe series X Axis Y Axis Z Axis MPEe MPEp
1800,2000, 2500 2000-4000 1500 2.0+L/350um 2.0um
3000, 4000, 5000 2500-6000 1800
2500, 3000, 4000 2500-6000 2000
2500,3000,4000 2500-8000 2500
3000, 4000, 5000 3500-8000 3000
5000, 6000 5000-8000 4000
Software system Measuring SW Rational-DMIS Advanced version (CAD)
Manual Manual+disk
Control system &probe system Include the joystick RENISHAW control system, include MCU joystick
Probe set RENISHAW MH20i/MCP/PH10T+TP20/PH10M+TP200/PH10M+SP25M/PH10MQ+SP25M...
Probe stylus RENISHAW M2 M3 stylus





Typical application

High repeatability: One-way repeatability∠1μm
Automobile engine and gearbox parts Aviation blades, engines and aircraft parts General Precision Engineering· Pharmaceutical Manufacturing

Features

Three-axis guideway-fully enclosed, all granite material:
We are equipped with enclosed guide rails on all machines, which can prevent damage to the track caused by external dust erosion, and are protected from pollution and temperature. This is especially important for the harsh environment. All three axes are made of granite, which is corrosion-resistant and has exactly the same coefficient of thermal expansion, so the accuracy is higher!
Grating ruler—Renishaw high precision grating ruler:
The grating ruler is an important part of the three-axis coordinate system. Our landing gantry machine adopts Renishaw's latest high-precision Tonic grating ruler.
Air-floating guide rail-surrounded design on all sides:
Adopting four-sided air-floating guide rail structure, it is the embodiment of stability and high quality! We are equipped with multiple air pressure regulating valves and air bearings in different directions for each axis. The encircling air bearing design ensures the stability of the instrument during the movement.

Software

Rational - DMIS is a newly developed large-scale integrated 3D measurement software package. In addition to the development and design of the software, which takes into account the requirements of beginners for easy learning and use of the software and high-level users for the function of the software, more importantly, it becomes a model of CMM measurement software standardization.
Rational DMIS programs are designed with the full and native DMIS kernel until version 5.0 of DMIS, which is totally different from the so-called "support DMIS" (the kernel is not DMIS). As we all know, DMIS has become an ISO standard (ISO 22093:2003)
