3D Coordinate Measuring Machine Featuring Ceramic Beam Construction for Enhanced Precision
Ceramic Beam Design 3D Coordinate Measuring Machine With Higher Precision
Product Overview

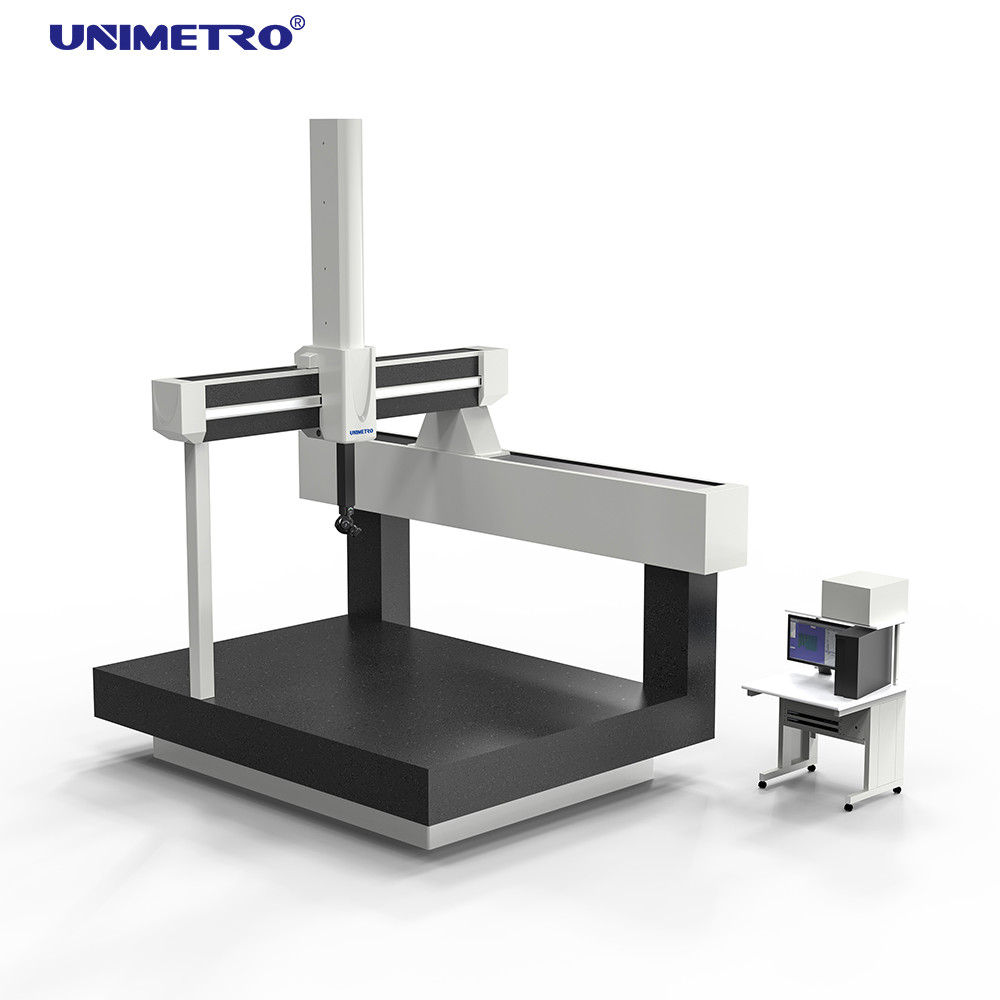

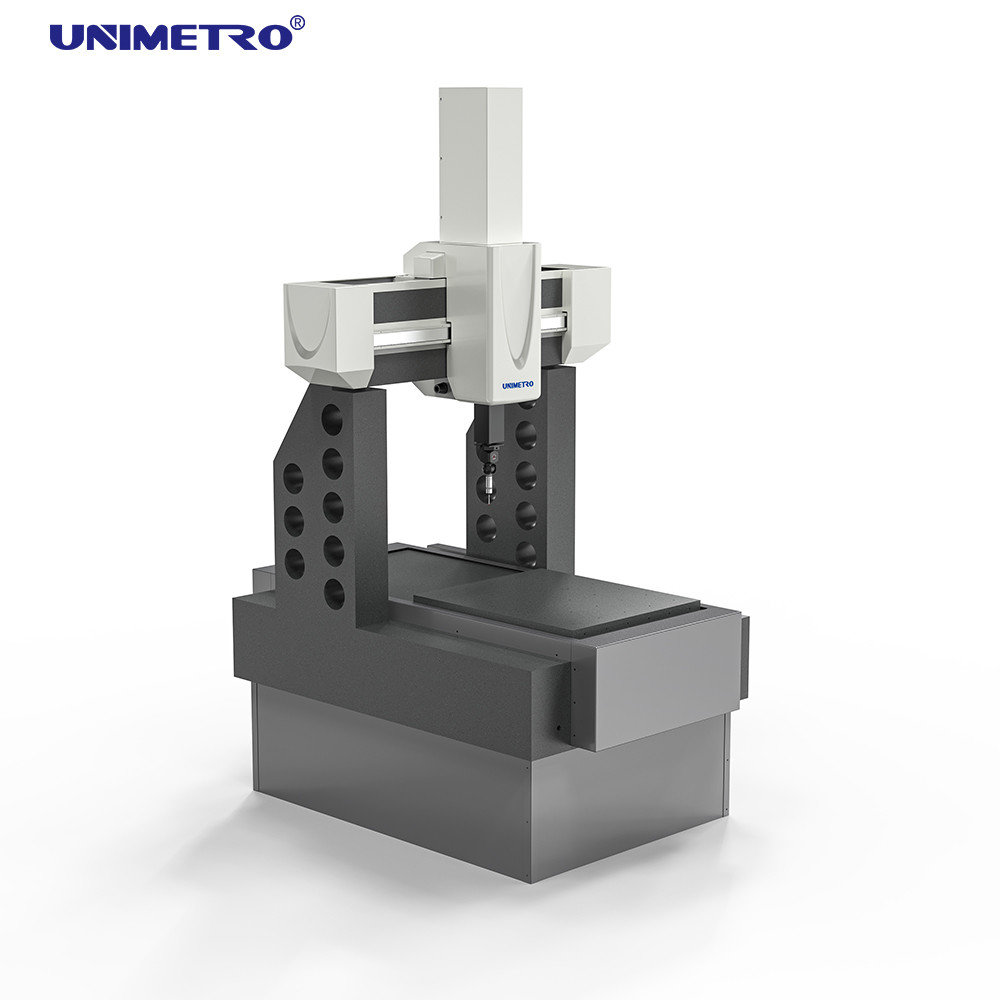

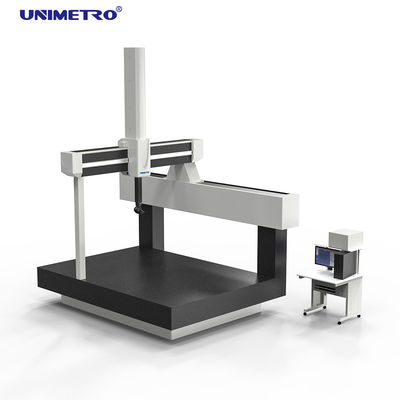

The Neon series coordinate measuring machine adopts innovative ceramic design to achieve ultra-high-precision scanning and detection capabilities. Particularly suitable for the application needs of high-precision products in the electronics, automotive, and aerospace fields. This unique three-coordinate measuring machine can be equipped with multiple three-coordinate probes.
Technical Parameters
| Product Name |
Travel Range (mm) |
Accuracy (um) |
| Gantry Type Coordinate Measuring Machine CMM For Automobile Inspection |
X Axis: 600-1000
Y Axis: 600
Z Axis: 600 |
MPEe: 0.9+L/350um
MPEp: 0.9um |
X Axis: 800-1500
Y Axis: 800
Z Axis: 700 |
- |
X Axis: 1000-3000
Y Axis: 1000
Z Axis: 800 |
- |
X Axis: 1500-4000
Y Axis: 1200
Z Axis: 1000 |
- |
Software System
Measuring SW: Rational-DMIS Advanced version (CAD)
Manual: Manual+disk
Control System & Probe System
Control System: Includes the joystick, RENISHAW control system, includes MCU joystick
Probe Set: RENISHAW MH20i/MCP/PH10T+TP20/PH10M+TP200/PH10M+SP25M/PH10MQ+SP25M...
Probe Stylus: RENISHAW M2 M3 stylus
Typical Applications
- Automobile engine and gearbox parts
- Aviation blades, engines and aircraft parts
- General Precision Engineering
- Pharmaceutical Manufacturing
Key Features
Working Platform
High-quality granite platform, precise dovetail guide rail
The granite working platform serves as the foundation of the machine, with its quality directly affecting overall performance. The platform is constructed from granite material combined with precise dovetail guide rails, effectively reducing machine vibration and enhancing overall performance.
Three-Axis Guideway
Fully enclosed, ceramic beam, spindle
Both the X and Z axes feature ceramic construction, providing rust resistance, excellent rigidity, smaller thermal expansion coefficient, and higher accuracy.
Base Bracket
Dual passive damping mechanism
Coordinate measuring machines are typically used in production plants where vibration from nearby machinery or transport vehicles can critically impact accuracy. While creating earthquake-proof foundations is a basic solution, it adds extra costs and complications. Our three-coordinate bracket incorporates a dual passive damping structure to prevent the effects of low-frequency vibration, ensuring measurement accuracy while reducing the need for extensive earthquake-proof foundation measures.
Software
Rational-DMIS is a newly developed large-scale integrated 3D measurement software package. The software development considers both the needs of beginners for easy learning and use, as well as the functional requirements of advanced users. More importantly, it represents a model of CMM measurement software standardization.
Rational DMIS programs are designed with the full and native DMIS kernel until version 5.0 of DMIS, which is fundamentally different from so-called "support DMIS" (where the kernel is not DMIS). As is widely recognized, DMIS has become an ISO standard (ISO 22093:2003).
