Single Frame CMM 3D Coordinate Measuring Machine With Large Travel

Basic Information
Place of Origin: China
Brand Name: UNIMETRO
Certification: ISO
Model Number: Krypton
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Wooden case
Delivery Time: 40-45days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 10 set per month
Detail Information
Product Name: Single Frame CMM Coordinate Measuring Machine With Large Travel Model: Krypton
MPEe: ≤ 1.5+L/350 (μm) MPEp: ≤ 1.5μm
Waranty: 12 Months Advantage: High Accuracy, Large Range, Stable
High Light:

CMM 3D Coordinate Measuring Machine

,

1.5μm 3D Coordinate Measuring Machine

,

3D Coordinate Measuring Machine Large Travel


Product Description



Single Frame CMM 3D Coordinate Measuring Machine With Large Travel



Product overview

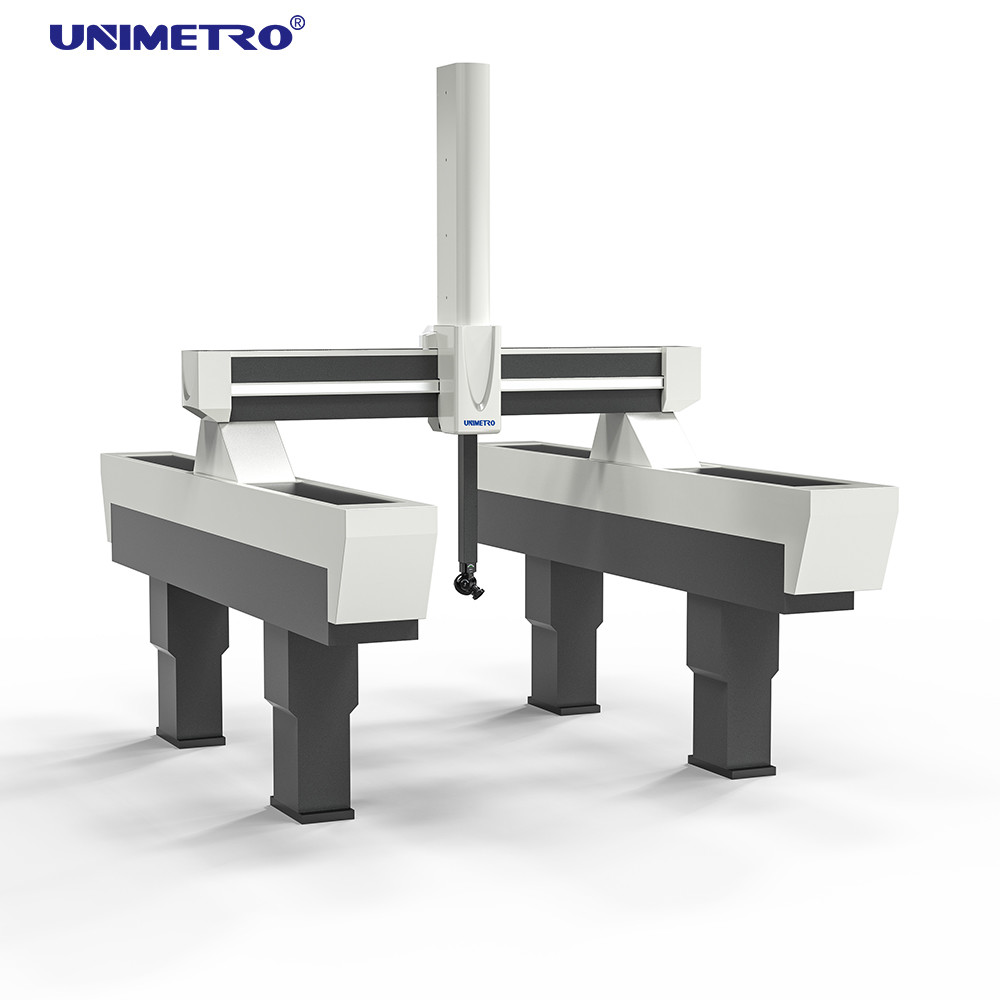

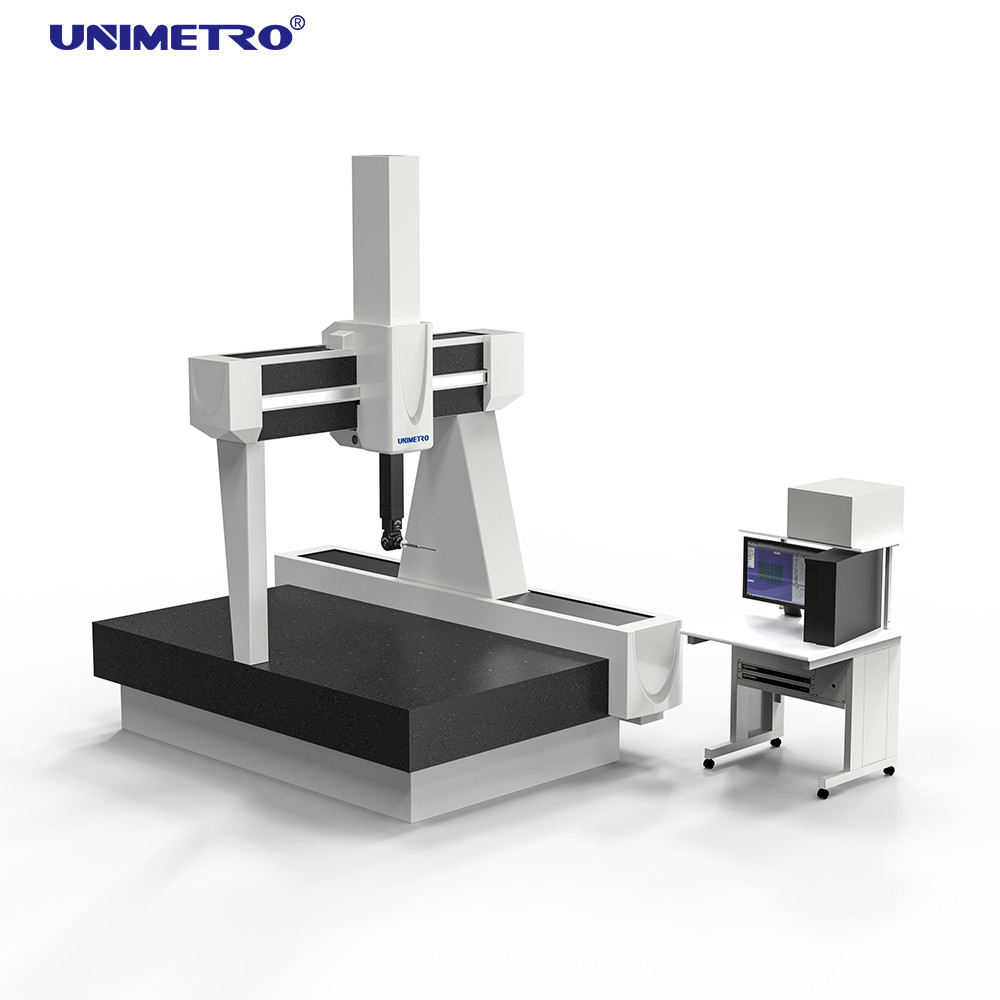

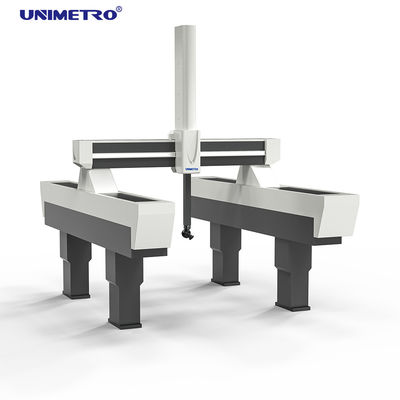

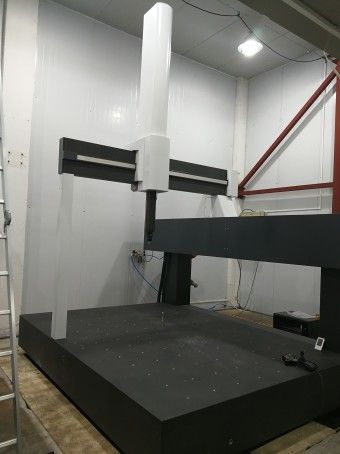

"Krypton" is a high-precision, high-reliability, large-scale three-coordinate measuring machine, with a unique unilateral high design. Based on the universal modular design concept, it ensures high reliability for all kinds of coordinate measuring machines, and it is easy to maintain. The three-coordinate measuring instrument of various specifications of this model includes an extension rail of more than 10m, which can be installed under the ground surface. The Krypton series of three-coordinate measuring instruments support a variety of measurement methods, including touch Sending digital probe measurement, continuous contact analog probe scanning and laser probe scanning, all of these probe options are fully interchangeable, which helps thousands of measurement geometrical and free-form parts.

TECHNICAL PARAMETERS

Product name Gantry Type Coordinate Measuring Machine CMM For Automobile Inspection
  Travel range (mm) Accuracy (um)
Kr series X Axis Y Axis Z Axis MPEe MPEp
1000 1000-5000 800 1.5+L/350um 1.5um
1200 1000-5000 1000
1500 2000-5000 1200,1300,1500
1600,1800,2000,2500 2000-5000 1500
2500 2500-6000 1800
2500 2500-8000 2000
Software system Measuring SW Rational-DMIS Advanced version (CAD)
Manual Manual+disk
Control system &probe system Include the joystick RENISHAW control system, include MCU joystick
Probe set RENISHAW MH20i/MCP/PH10T+TP20/PH10M+TP200/PH10M+SP25M/PH10MQ+SP25M...
Probe stylus RENISHAW M2 M3 stylus

Typical application


· Aviation parts and structural parts
· Large gear
· Large steam turbine for power station
· Marine engines and propellers
· Train parts

Features

TElevated rail structure-the accuracy is stable and greatly improved:
The use of the unilateral viaduct type on the three coordinate measuring machine greatly reduces the Abbe error, makes the accuracy higher, and the stability is also greatly improved.
TThree-axis guideway-fully enclosed, all granite material:
We are equipped with enclosed guide rails on all machines, which can prevent damage to the track caused by external dust erosion, and are protected from pollution and temperature. This is especially important for the harsh environment. All three axes are made of granite, which is corrosion-resistant and has exactly the same coefficient of thermal expansion, so the accuracy is higher!

Software

Rational - DMIS is a newly developed large-scale integrated 3D measurement software package. In addition to the development and design of the software, which takes into account the requirements of beginners for easy learning and use of the software and high-level users for the function of the software, more importantly, it becomes a model of CMM measurement software standardization.
Rational DMIS programs are designed with the full and native DMIS kernel until version 5.0 of DMIS, which is totally different from the so-called "support DMIS" (the kernel is not DMIS). As we all know, DMIS has become an ISO standard (ISO 22093:2003)
