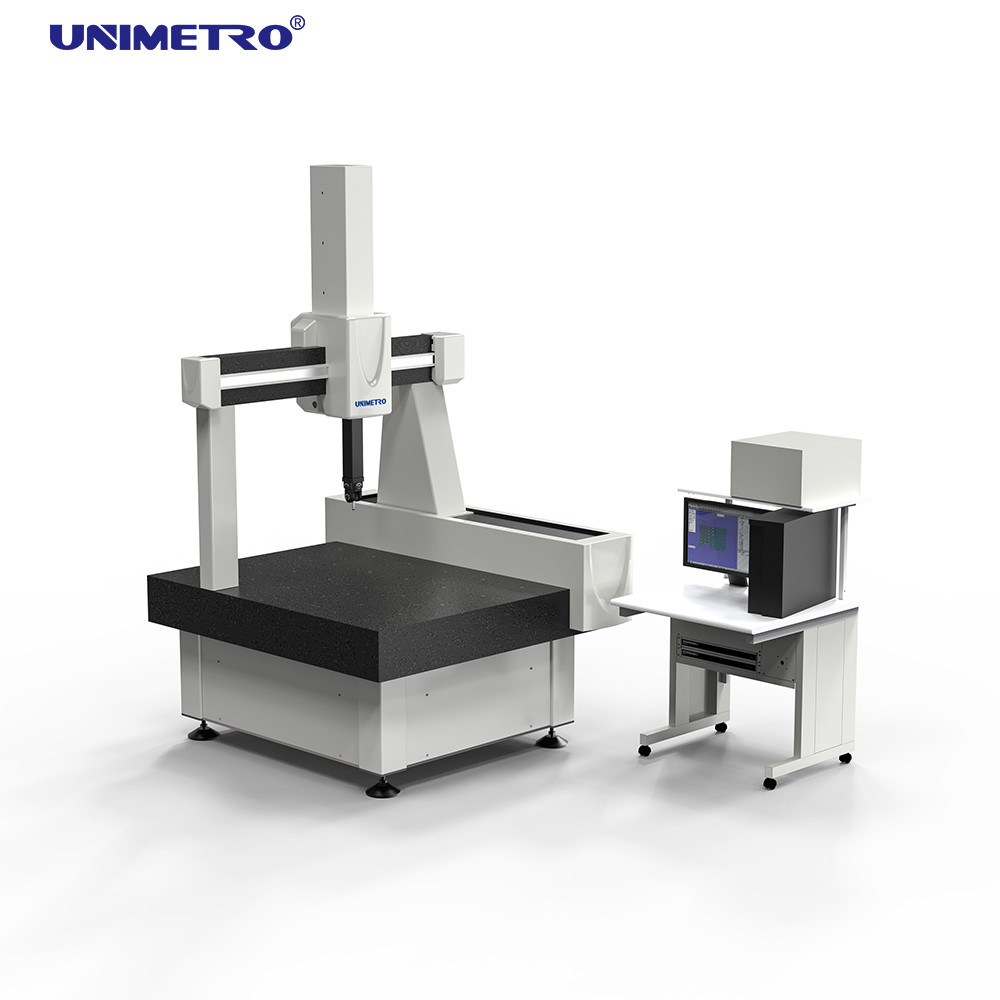

Scale Resolution 0.1um PH20MT Probe 3D Coordinate Measuring Machine

Basic Information
Place of Origin: China
Brand Name: UNIMETRO
Certification: CE,ISO
Model Number: Helium
Minimum Order Quantity: 1
Price: Discussible
Packaging Details: Wooden case
Delivery Time: 3~5 weeks
Payment Terms: T/T
Supply Ability: 40
Detail Information
Product Name: CMM Coordinate Measuring Machine Material: Marble Base
Measuring Range: 505 X 712 X 505 Mm Overrall Diamension: 1255 X 1500 X 2700 Mm
Machine Weight: 800kg MPEe: ≤ 1.7+L/350 (μm)
MPEp: ≤ 2.3μm Scale Resolution: 0.1um
High Light:

Full Auto 3D Coordinate Measuring Machine

,

PH20MT Probe 3D Coordinate Measuring Machine

,

Scale Resolution 0.1um 3D CMM Machine


Product Description



High Precision 500*700*500mm Full Auto 3D CMM Coordinate Measuring Machine With PH20MT



INTRODUCTION

“Helium” is characterized by the highest precision machine which is UNIMETRO wholly developed and designed. Each part is selected strictly in the period of manufacturing and make sure that all parts are connected perfectly and opportunely in the period of assembly. The acceptance of measuring machines takes place according to ISO 10360-2. In doing so, two standardized acceptance procedures are used. All measuring machines are measured with an ultra precision laser. Afterwards, a test conforming to standards with DKD-certified solid measures such as gauge blocks, ball plates, etc. is conducted. Therefore, the machine customers use at last is real high quality,high precision and German Technology.

TECHNICAL PARAMETERS

Measuring area Overall dimension Max Part Weight
X=505mm, Y=712mm, Z=505mm 1250 X 1500 X 2700 mm 800kg
Machine weight MPEe MPEp
1930kg ≤ 1.7+L/350 (μm) ≤ 2.3μm
Scale resolution Max 3D Speed Max 3D Acceleration
0.1um 550mm/s 700mm/s





ADVANTAGES



Patent double passive vibration damping:
CMM is mostly used in the company and near by the other machines and transport truck. The vibration influences the precision of CMM. Make a special foundation is one solution but this will cost and trouble. Our CMM has the patent support with double passive vibration damping Integrated directly in the machine frame. Thus the machine may be suitably positioned close to production. No need the special foundation for this CMM in most cases.

High quality granite worktable:
Worktable is the support of all the CMM, its quality is important for the performance! Our CMM is made with high precision, heavy and stable natural granite worktable from “Mount TAI”; this can support vibration damping and improve the performance of CMM.

Enclosed guides in all axes:
The environment of the CMM has strict requirement, but some different such as the temperature and dust are possible in the measurement room. As a standard, all our CNC machines are fitted with enclosed guides. This protects the guide ways from damage, dirt, and direct thermal influences. This can prevent external dust and temperature changes. It’s important for usage in dusty environment.

Friction “automatic rectifying” transmission:
Our CMM uses friction transmission, and has the “automatic rectifying” system in all axes. The transmission system using “fixed + micro suspension” structure to ensure transmission is parallel with guide way. That makes the measuring machine largely maintenance-free.

Imported key parts:
Key parts are most important for the stable of machine. Only with the best design and best quality of key parts can make the long time stable of CMM. All the key parts are famous brands(servo motor, transmission system, pneumatic system etc.). This can make best precision and service life of the CMM.

RENISHAW optical scale:
Optical scale is one of most important part for CMM; RENISHAW is the best flag in the domain of CMM parts. It has the best products and best service reputation! Our CMM use always RENISHAW high accuracy optical scale. Resolution is 0.05 um.

Air bearing surround guide way in all 4 sides:
Air bearing guide way using 4 sides surrounded structure! This is the symbol of stable and quality! In our CMM, each axis has many air pressure regulators in different directions and pneumatic bearings, annular pneumatic bearing design guaranties instruments steady during moving.

Small holes technology:
Air consumption: 150NL/Min. Small holes technology, this makes condensate zone between air bearing and guide way. It can offset the little heat comes from the motion friction! This technology improves the thermal stability of the CMM and keeps the long term precision stability.

SOFTWARE

Rational-DMIS Rational - DMIS is a newly developed large-scale integrated 3D measurement software package. In addition to the development and design of studio software, which takes into account the requirements of beginners for easy learning and use of the software and the functional requirements of high-level users for the software, more importantly, it has become a model for CMM measurement software standardization. Rational DMIS programs are designed with the full and native DMIS kernel until version 5.0 of DMIS, which is totally different from the so-called "support DMIS" (the kernel is not DMIS). As we all know, DMIS has become an ISO standard (ISO 22093:2003)

Scale Resolution 0.1um PH20MT Probe 3D Coordinate Measuring Machine 0





PROBE FUNCTION

Probe head :PH20MT motorized probe heads by RENISHAW
Renishaw PH20 is another innovative measurement product launched by Renishaw company, which greatly improves the performance of CMM.
This is the first time that the five axis technology developed for Revo measurement system (which has won many awards) has been used in trigger applications of various CMM specifications.
The stepless positioning ability of PH20, which is easy to measure and touch at any angle, can ensure the best workpiece measurement and minimize the replacement times of the probe. Five axis synchronous motion can measure large workpiece on CMM by minimizing the space needed for rotation of measuring seat around workpiece.
Built in industry standard TP20 probe
PH20 test base users can directly use a series of mature tp20 test head modules to provide a variety of force measurement, direction sensing options and extension rods to meet the application requirements. The magnetic module can provide collision protection and realize automatic exchange by using mcr20ni exchange frame.
PH20MT motorized probe heads by RENISHAW:This system enables fast,complete and repeatable measuring of more complex work-pieces. Thanks to the rotation possibility the machine becomes a 5-way measuring machine and enables significant measuring time saving especially with simple pieces.

Repeatability of position Positioning steps Rotating axis
+0.5 μm Limitless, arbitrary +360°
Swing axis : Total number of positions : Operational temperature :
0°- 115° Countless 10-40℃
Probe :TP20 SF module;M2 probe assembly
Number Name Specifications Qty
A-5004-7585 Probe extension rod 10mm 2
A-5004-7586 Probe extension rod 20mm 2
A-5000-7806 Ball probe Φ1×10mm 2
A-5000-3603 Ball probe Φ1×20mm 2
A-5000-3604 Ball probe Φ1×10mm 2
A-5000-4161 Ball probe Φ1×20mm 2
A-5000-2286 Ball probe Φ1×50mm 1
  Probe spanner   2
Total: 8 Type   15pc
