3D Coordinate Measuring Machine with 0.1μm Scale Resolution and PH20MT Probe

Basic Information
Place of Origin: China
Brand Name: UNIMETRO
Certification: CE,ISO
Model Number: Helium
Minimum Order Quantity: 1
Price: Discussible
Packaging Details: Wooden case
Delivery Time: 3~5 weeks
Payment Terms: T/T
Supply Ability: 40
Detail Information
Product Name: CMM Coordinate Measuring Machine Material: Marble Base
Measuring Range: 505 X 712 X 505 Mm Overrall Diamension: 1255 X 1500 X 2700 Mm
Machine Weight: 800kg MPEe: ≤ 1.7+L/350 (μm)
MPEp: ≤ 2.3μm Scale Resolution: 0.1um
Highlight:

Full Auto 3D Coordinate Measuring Machine

,

PH20MT Probe 3D Coordinate Measuring Machine

,

Scale Resolution 0.1um 3D CMM Machine


Product Description

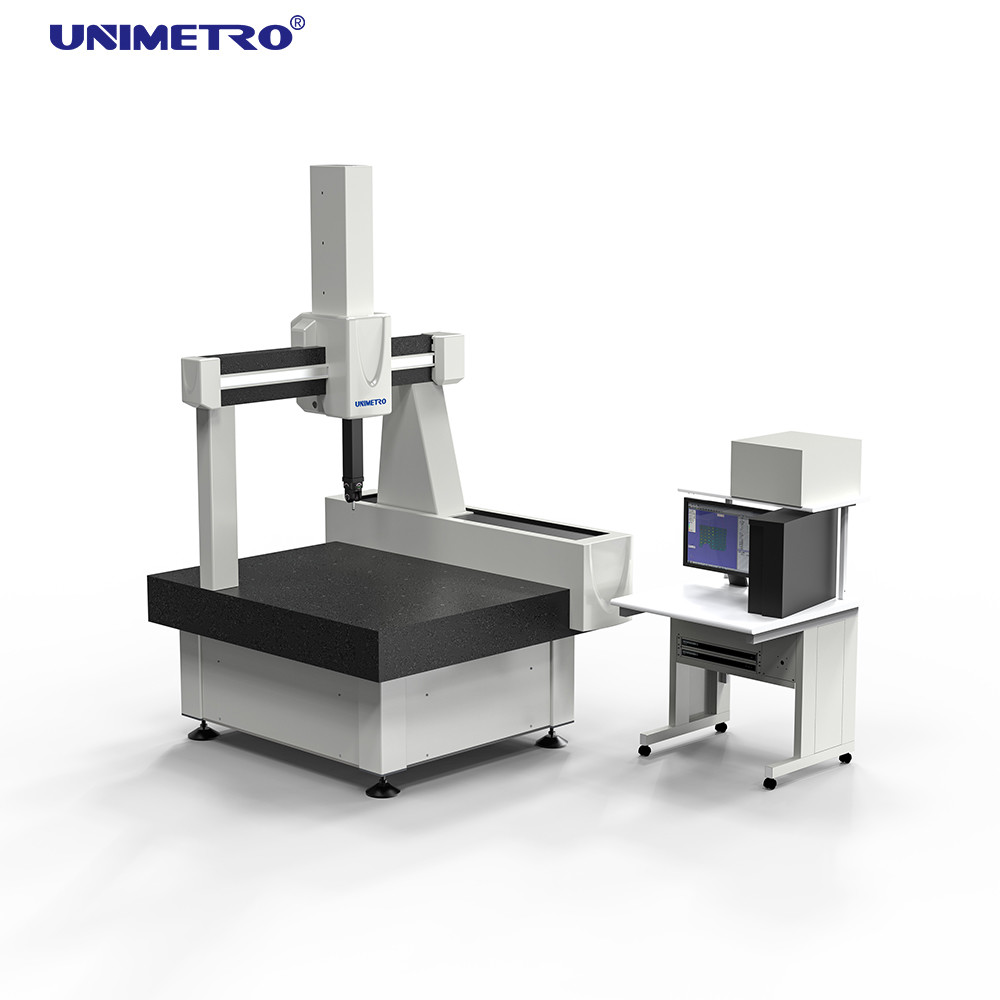

3D Coordinate Measuring Machine with 0.1μm Scale Resolution and PH20MT Probe
High Precision 500×700×500mm Full Auto 3D CMM Coordinate Measuring Machine With PH20MT
Introduction

"Helium" represents the highest precision machine wholly developed and designed by UNIMETRO. Every component undergoes strict selection during manufacturing, ensuring perfect and timely connections during assembly. Measuring machine acceptance follows ISO 10360-2 standards, utilizing two standardized acceptance procedures. All machines are measured with ultra-precision lasers and tested with DKD-certified solid measures including gauge blocks and ball plates, guaranteeing genuine high quality, precision, and German technology.

Technical Parameters
Parameter Specification
Measuring Area X=505mm, Y=712mm, Z=505mm
Overall Dimension 1250 × 1500 × 2700 mm
Maximum Part Weight 800kg
Machine Weight 1930kg
MPEe ≤ 1.7+L/350 (μm)
MPEp ≤ 2.3μm
Scale Resolution 0.1μm
Maximum 3D Speed 550mm/s
Maximum 3D Acceleration 700mm/s
Key Advantages
  • Patent double passive vibration damping: Integrated directly in the machine frame, allowing placement near production without special foundations.
  • High quality granite worktable: Made with high precision, heavy natural granite from "Mount TAI" for vibration damping and improved performance.
  • Enclosed guides in all axes: Protects guide ways from damage, dirt, and thermal influences, suitable for dusty environments.
  • Friction "automatic rectifying" transmission: Uses "fixed + micro suspension" structure for parallel transmission with guide ways, ensuring minimal maintenance.
  • Imported key parts: Utilizes famous brand components (servo motor, transmission system, pneumatic system) for optimal precision and service life.
  • RENISHAW optical scale: High accuracy optical scale with 0.05μm resolution for superior measurement performance.
  • Air bearing surround guide way: 4-sided surrounded structure with multiple air pressure regulators for instrument stability during movement.
  • Small holes technology: Creates condensate zone between air bearing and guide way, offsetting heat from motion friction and improving thermal stability.
Software

Rational-DMIS is a newly developed large-scale integrated 3D measurement software package designed for both beginners and advanced users. Developed with full and native DMIS kernel (version 5.0), it represents a model for CMM measurement software standardization and has become an ISO standard (ISO 22093:2003).

3D Coordinate Measuring Machine with 0.1μm Scale Resolution and PH20MT Probe 0
Probe System
Probe Head: PH20MT Motorized Probe Heads by RENISHAW

Renishaw PH20 incorporates five-axis technology for trigger applications across various CMM specifications. Its stepless positioning capability enables optimal workpiece measurement with minimal probe replacement. Five-axis synchronous motion minimizes space requirements for rotation around workpieces.

Built-in Industry Standard TP20 Probe

PH20 test base users can directly utilize mature TP20 test head modules with various force measurement options, direction sensing, and extension rods. Magnetic modules provide collision protection and enable automatic exchange using MCR20 exchange frames.

Parameter Specification
Repeatability of Position +0.5 μm
Positioning Steps Limitless, arbitrary
Rotating Axis +360°
Swing Axis 0° - 115°
Total Number of Positions Countless
Operational Temperature 10-40℃
Probe Configuration: TP20 SF Module; M2 Probe Assembly
Number Name Specifications Quantity
A-5004-7585 Probe Extension Rod 10mm 2
A-5004-7586 Probe Extension Rod 20mm 2
A-5000-7806 Ball Probe Φ1×10mm 2
A-5000-3603 Ball Probe Φ1×20mm 2
A-5000-3604 Ball Probe Φ1×10mm 2
A-5000-4161 Ball Probe Φ1×20mm 2
A-5000-2286 Ball Probe Φ1×50mm 1
Probe Spanner 2
Total: 8 Types 15 pieces
Company Information
3D Coordinate Measuring Machine with 0.1μm Scale Resolution and PH20MT Probe 1 3D Coordinate Measuring Machine with 0.1μm Scale Resolution and PH20MT Probe 2 3D Coordinate Measuring Machine with 0.1μm Scale Resolution and PH20MT Probe 3 3D Coordinate Measuring Machine with 0.1μm Scale Resolution and PH20MT Probe 4
Our Clients & Agents
3D Coordinate Measuring Machine with 0.1μm Scale Resolution and PH20MT Probe 5 3D Coordinate Measuring Machine with 0.1μm Scale Resolution and PH20MT Probe 6
Frequently Asked Questions
Q1: Are you a factory or trading company?
A1: We are a factory and provide responses within 24 hours.
Q2: What does your company mainly produce?
A2: We specialize in Vision Measuring Machines, Coordinate Measuring Machines, CMM & VMM fixtures, and related equipment.
Q3: How to Choose the Appropriate Specification?
A3: Our professional team advises on suitable measuring instrument specifications based on your product variety and measurement requirements.
Q4: Do you accept customized service?
A4: Yes, we provide both standard machines and customized solutions tailored to customer needs.
Q5: What is your warranty period?
A5: Our products come with a 1-year warranty. We've significantly improved breakable parts, ensuring stable product quality you can rely on.
