    Product Details:

    Place of Origin: China
    Brand Name: UNIMETRO
    Model Number: Standard

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: Wood Case
    Delivery Time: 8 working days
    Payment Terms: T/T
    Supply Ability: 20 per month
    Contact Now
    Detailed Product Description
    Control Mode: Full CNC Close-loop Motion Control CCD: Industrial Color 1/3" CCD Camera
    Lens: Manual Dented Zoom Lens 0.7 - 4.5X (Navitar Zoom Lens For Option) Resolution: 1um, 0.5um For Option
    Motion Control And Illumination: UWC VMM Control Package Power Supply: 220V±10% AC 50Hz, Resistance≦4 Ohm Ground Should Be Required
    Operation Mode: Integrated Intelligent Control(joystick, Mouse, Keyboard)



    Full-Automatic CNC Vision Measurement machine 3D measuring Laser Scanning





    Product Description



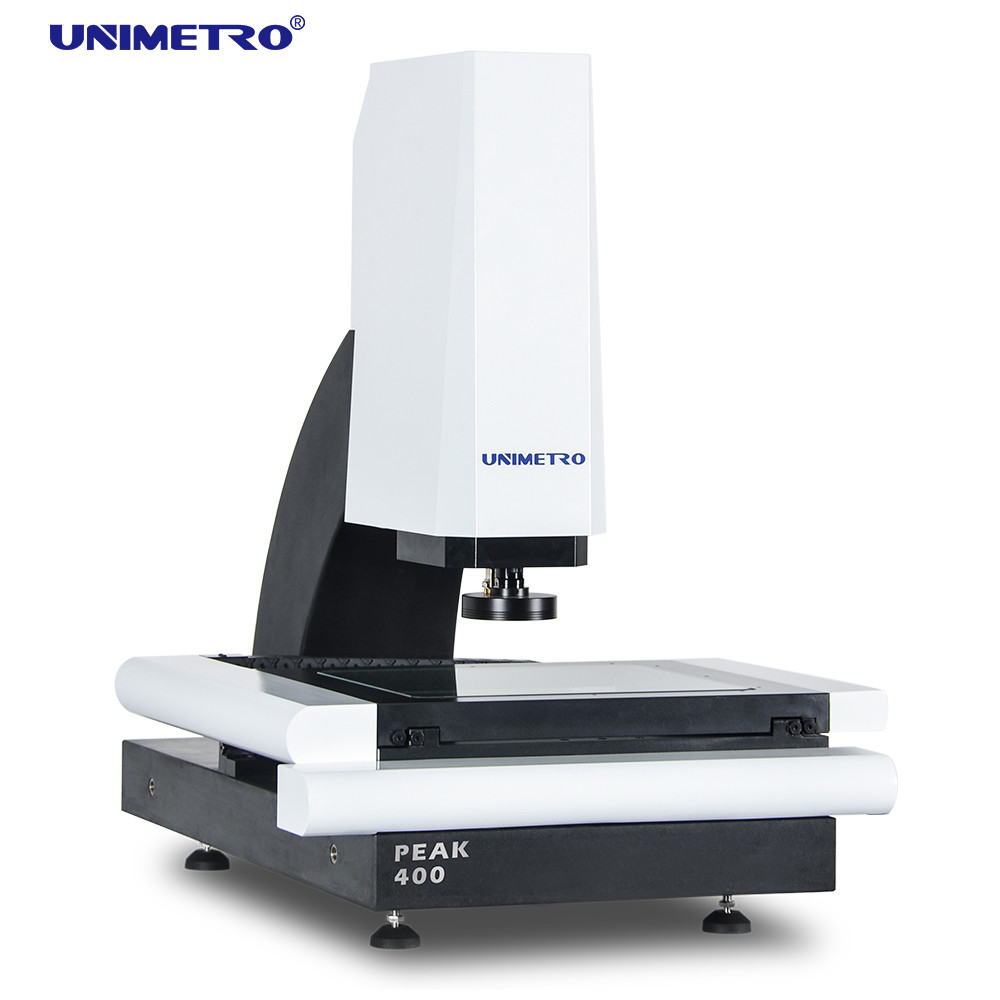

    Fully Automatic CNC Vision Measurement Machine For 3D Measuring Laser Scanning





    Standard Series Automatic Vision Measurement Machine



    Standard series full automatic vision measurement machine is with Full CNC close-loop axis motion control, using UWC 4000i series controller, servo motors and joystick, ensures stable and fast movement, increase the measuring accuracy and efficiency. Also the package solution for the control system offers stable performance of the machine, minimizing the maintenance.



    Fully Automatic CNC Vision Measurement Machine For 3D Measuring Laser Scanning









    Detailed Data



    UWC PAckage Solution



    The full control system is embedded in the machine body, makes the machine structure smarter, and free from the large electronic cabinet, a small space or desk top is enough for the installation.



    Fully Automatic CNC Vision Measurement Machine For 3D Measuring Laser Scanning





    Standard series full automatic vision measurement machine is compatible with full series of Renishaw touch probes to achieve 2D 3D composite measuring, in addition of Sunnyoo or External Array 3D measuring software, users can achieve the 2D 3D measuring in the same coordinates system, even CAD digital model inputting is available.



    Fully Automatic CNC Vision Measurement Machine For 3D Measuring Laser Scanning



    Non-contact laser sensors are also available in the standard series, which offers fast measuring of the height, contour and flatness of the work pieces.



    000 grade marble machine base and column, ensures stability, safety and reliability .



    The working stage of the Standard series full automatic vision measurement machine is made of high performance aluminum alloy, which is light and with high rigidity, ensures the smooth and outstanding axis motion performance.



     Fully Automatic CNC Vision Measurement Machine For 3D Measuring Laser Scanning Fully Automatic CNC Vision Measurement Machine For 3D Measuring Laser Scanning



    The Standard series full automatic vision measurement machine is capable to use on the production line, offers powerful measuring instrument for mass production.



    Three axis are using precise cross guide way to ensure high accuracy and stability.



    High resolution color CCD , combined with multiple lens and illumination solutions ensure the clear and precise image.



    Equipped with high-performance linear scales, high accuracy and stability.



    Manual zooming lens ,image magnification up to 18X~188X, also auto zoom lens are for option, users are able to create full automatic measuring program easily with the auto zoom function.



    Auto zoom co-axial light lens for option



    Fully Automatic CNC Vision Measurement Machine For 3D Measuring Laser Scanning















    Parrameters



    Item Standard 322 CNC Standard 432 CNC Standard 542 CNC
    Dimension(mm) 650 x 550 x 935 800 x 700 x 1000 1100 x 800 x 1030
    Measuring range X 300 400 500
    Y 200 300 400
    Z 200 200 200
    Working stage Stage size 460 x 360 560 x 460 660 x 560
    Glass size 340 x 240 440 x 340 540 x 440
    Max. loading 25kg 25kg 25kg
    Image and measuring system CCD Industrial color 1/3" CCD camera
    Lens Manual dented zoom lens 0.7 - 4.5X (Navitar zoom lens for option)
    Magnification 18 - 188 X
    Field of view(mm) 11.1 - 1.7
    Working distance 92mm
    Display resolution 0.001mm
    Measuring Accuracy(um) Optical E1x, E1y=3+L/200
    E1z=3.9+L/200
    E2xy=3.0+L/150
    Probe E3=3.5+L/100
    Resolution 1um, 0.5um for option
    Operation mode Integrated intelligent control(joystick, mouse, keyboard)
    Illumination Programmable LED surface ring light, 8 sections, parallel contour light
    Power supply 220V±10% AC 50Hz, resistance≦4 ohm ground should be required
    Working environment Temperature 18-24 °C, humidity 30 - 75%, avoiding vibration















    Compatible accessories



    Illumination

    4 sections surface ring LED light

    8 sections surface ring LED light

    40 sections surface ring LED light

    40 sections color surface ring LED light





    Lens

    Manual dented zoom lens

    Co-axial optical manual zoom lens

    Auto zoom lens

    Co-axial optical auto zoom lens





    Probes

    Renishaw MCP touch probe kits, probe measuring error <=0.75

    Renishaw PH6+TP20 touch probe kits, probe measuring error <=0.35





    Laser scanner

    KEYENCE non-contact laser sensors series



    Fully Automatic CNC Vision Measurement Machine For 3D Measuring Laser Scanning Fully Automatic CNC Vision Measurement Machine For 3D Measuring Laser Scanning













    Application in customers' site



    Fully Automatic CNC Vision Measurement Machine For 3D Measuring Laser Scanning   Fully Automatic CNC Vision Measurement Machine For 3D Measuring Laser Scanning



    Fully Automatic CNC Vision Measurement Machine For 3D Measuring Laser Scanning   Fully Automatic CNC Vision Measurement Machine For 3D Measuring Laser Scanning
