Manual Optical Measurement Machine For 2D Measurement

Manual Optical Measurement Machine For 2D Measurement

Manual Optical Measurement Machine For 2D Measurement
Manual Optical Measurement Machine For 2D Measurement
Product Details:
Place of Origin: China
Brand Name: UNIMETRO
Certification: CE,ISO
Model Number: BASIC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Discussible
Packaging Details: Wooden case
Delivery Time: 5~15days
Payment Terms: L/C, T/T
Supply Ability: 40
Contact Now
Detailed Product Description
Dimension: 600*740*980mm Measuring Range: 300*200*200mm
Measuring Accuracy: 2.5+L/100um Repeatability: 2.5um
Weight: 190kg Linear Scale Resolution: 0.5um(0.1um For Option)
High Light:

Manual Optical Measurement Machine


Scale Resolution 0.5um Optical Measurement Machine

Manual Optical Instrument Video Measuring Machine for 2d Measurement

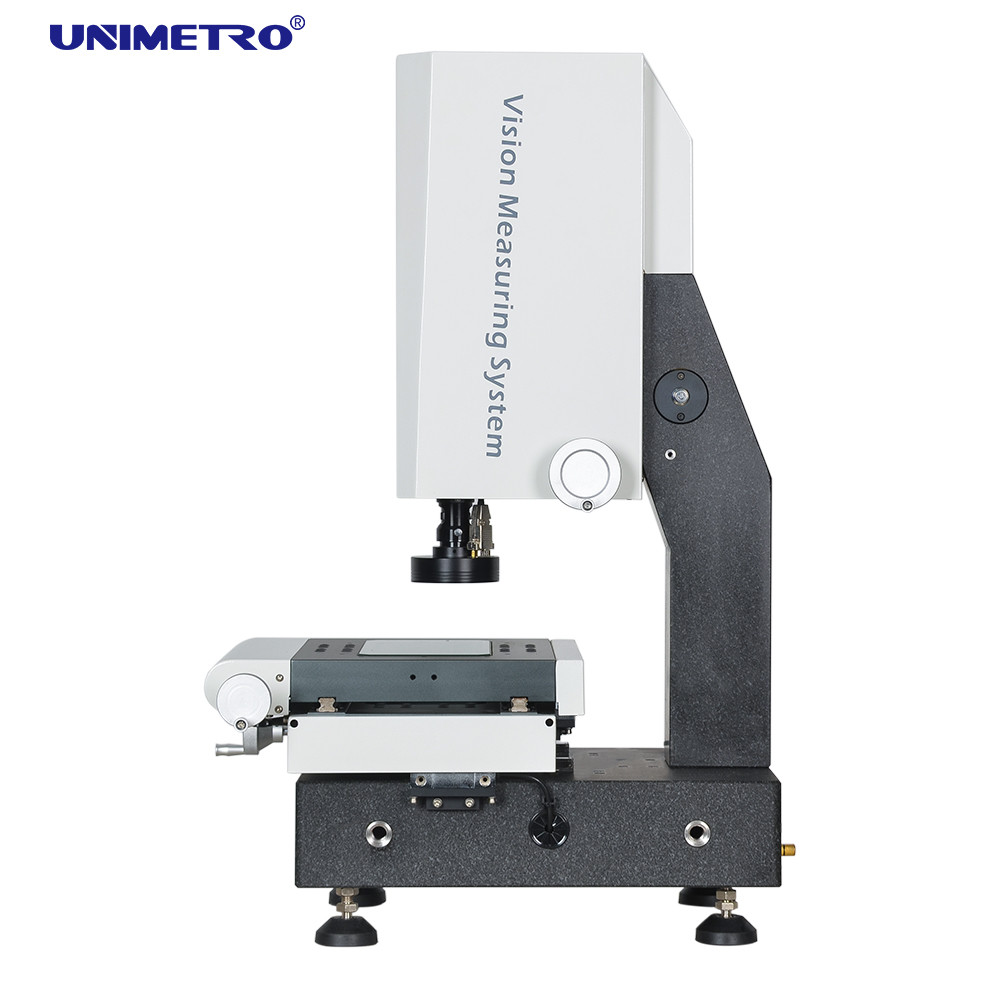

Vision measurement machine is an instrument used for accurate physical dimension measuring, accuracy up to micron level,Which is an optical measuring instrument using the camera to capture the image of the work piece, analyse the image pixel and calculate the 2D dimension with the measuring software.

◉ BASIC Series vision measurement machine is designed and developed by UNIMETRO, which is a popular model fit for most of the accurate 2D dimension measuring application and end users from different industries, as Mold, Electronics, Semi conductor, Plastic Injection, 3C products, Medical care, Aviation...etc.It is an important instrument used in your products quality control process,ensuring your products dimension accuracy, makes your products more competitive.
◉ BASIC series VMM is the most common model for most of the factories manufacturing accurate parts. It is fit for small quantity samples measuring application. 3 axis manual control, with user friendly software, allows the operator to manage using the machine in very short time.

◉ Using high accuracy and stability granite as machine base and column,with 3-axis 0.0005mm high-resolution linear sensor
----Ensure each machine’s high performance and accuracy.
◉ Using HIWIN linear guide way and high-precision linear guide rail, with aluminum work stage and hard anodizing surface processing.
---- Ensures the high dynamic performance and long life cycle usage of the machine.
◉ Using an integrated core control box which is developed by UNIMETRO, for linear scales, light control, and touch probe signal transfering.
---- Ensure easy wiring and maintainence. Highly increase the stability of the machine.
◉ Programmable contour LED light with parallel light path, avoids the deformation of the image.
---- Ensures the measuringaccuracy.
◉ With 8 section software control LED ring light, offer multiple illuminating angle and brightness.
---- Fit for parts withdifferent shape and materials.
◉ The lighting parameters can be record in the part measuring program, users do not need to adjust during the measuring process.
----Friendly and convenintly use.


Application Area

◆ Mould industry

Automobile manufacturing

Medical industry

Mechanical manufacturing

3C digital industry

PCB production


Manual Optical Measurement Machine For 2D Measurement 0   Manual Optical Measurement Machine For 2D Measurement 1   Manual Optical Measurement Machine For 2D Measurement 2


Hardware Configuration

◆ HIWIN linear guide way

◆ Aluminum work stage and hard anodizing

◆ Integrated core control box

◆ 3 axis 0.5um resolution linear scales

◆ Multi function LED parallel light group

◆ Industrial grade high resolution CCD camera

◆ 0.7-4.5X manual dented zoom lens with high repeatability

◆ Supporting multiple external accessories

Manual Optical Measurement Machine For 2D Measurement 3 Manual Optical Measurement Machine For 2D Measurement 4 Manual Optical Measurement Machine For 2D Measurement 5



Measuring range(mm)(X×Y×Z)
Measuring Accuracy(μm)
2.5 + L / 100
3.0 + L / 100
Repeatability (μm)
Weight (kg)
Image and Measuring
Industrial grade high resolution CCD camera
0.7~4.5X manual dented zoom lens with high repeatability
18~195 X
Field of View
8.1mm ~ 1.3 mm
Working distance
80 mm
Linear scale resolution
0.5μm ( 0.1μm Optional )
Driving system
X / Y / Z manual control
Programmable LED 8 sections /single section ring surface light, parallel LED contour light



Software Overview


The UNIMETRO INSPECT3D software is with user friendly UI, easy to learn, powerful function, allows the users to achieve
fast and precise measuring. The software is offering full English language UI, also allows new language development.

◉ Input CAD file and measure

◉ Parts array and macro measuring
◉ Auto focus and height measuring
◉ Navigating function helps fast locating
◉ Powerful geometric measuring function
◉ Multiple data reports and graphical data output function

◉ Flexible user program

◉ Creating reference elements
◉ Powerful edge detecting function
◉ Supporting multiple external accessories
◉ Auto calculation of the elements geometrical tolerance
◉ Measuring complicated production fast and conveniently

Manual Optical Measurement Machine For 2D Measurement 6

Q: Are you a factory or trading company ?

A: We are a factory and giving you the quickest reply in 24 hours.

Q: What's your company mainly in?
A: We are mainly produce Vision measuring machine,Coordinate measuring machine ,CMM&VMM fixturesetc.
Q: How to Choose the Appropriate Specification?
A: As long as you tell us variety and size of product to be measured, our professional team would advise you of measuring
instrument of suitable specifications.
Q: Do you accept customized service?
A: Be sure! We can provide not only typical machines, but also the machines customized to customer's needs.
Q: What is your warranty period?
A: Our product warranty period is 2 year. Our product quality is very stable, and we have improved a lot on some breakable parts. You can rest assured of our product quality.
