Manual Optical Vision Measurement Machine For Audio High Accuracy 600*740*980mm

Basic Information
Place of Origin: China
Brand Name: UNIMETRO
Certification: CE,ISO
Model Number: BASIC
Minimum Order Quantity: 1
Price: Discussible
Packaging Details: Wooden case
Delivery Time: 5~15days
Payment Terms: L/C, T/T
Supply Ability: 40
Detail Information
Dimension: 600*740*980mm Measuring Range: 300*200*200mm
Measuring Accuracy: 2.5+L/100um Repeatability: 2.5um
Weight: 190kg Linear Scale Resolution: 0.5um(0.1um For Option)
High Light:

2.5um Optical Vision Measurement Machine

,

UNIMETRO Manual Optical Measurement Machine

,

600*740*980 mm Manual Optical Measurement Machine


Product Description

Manual Optical Instrument Video Measuring Machine for 2d Measurement



Describtion

Vision measurement machine is an instrument used for accurate physical dimension measuring, accuracy up to micron level,Which is an optical measuring instrument using the camera to capture the image of the work piece, analyse the image pixel and calculate the 2D dimension with the measuring software.


◉ BASIC Series vision measurement machine is designed and developed by UNIMETRO, which is a popular model fit for most of the accurate 2D dimension measuring application and end users from different industries, as Mold, Electronics, Semi conductor, Plastic Injection, 3C products, Medical care, Aviation...etc.It is an important instrument used in your products quality control process,ensuring your products dimension accuracy, makes your products more competitive.
◉ BASIC series VMM is the most common model for most of the factories manufacturing accurate parts. It is fit for small quantity samples measuring application. 3 axis manual control, with user friendly software, allows the operator to manage using the machine in very short time.


◉ Using high accuracy and stability granite as machine base and column,with 3-axis 0.0005mm high-resolution linear sensor
----Ensure each machine’s high performance and accuracy.
◉ Using HIWIN linear guide way and high-precision linear guide rail, with aluminum work stage and hard anodizing surface processing.
---- Ensures the high dynamic performance and long life cycle usage of the machine.
◉ Using an integrated core control box which is developed by UNIMETRO, for linear scales, light control, and touch probe signal transfering.
---- Ensure easy wiring and maintainence. Highly increase the stability of the machine.
◉ Programmable contour LED light with parallel light path, avoids the deformation of the image.
---- Ensures the measuringaccuracy.
◉ With 8 section software control LED ring light, offer multiple illuminating angle and brightness.
---- Fit for parts withdifferent shape and materials.
◉ The lighting parameters can be record in the part measuring program, users do not need to adjust during the measuring process.
----Friendly and convenintly use.



Application Area

◆ Mould industry

Automobile manufacturing

Medical industry

Mechanical manufacturing

3C digital industry

PCB production

Etc.

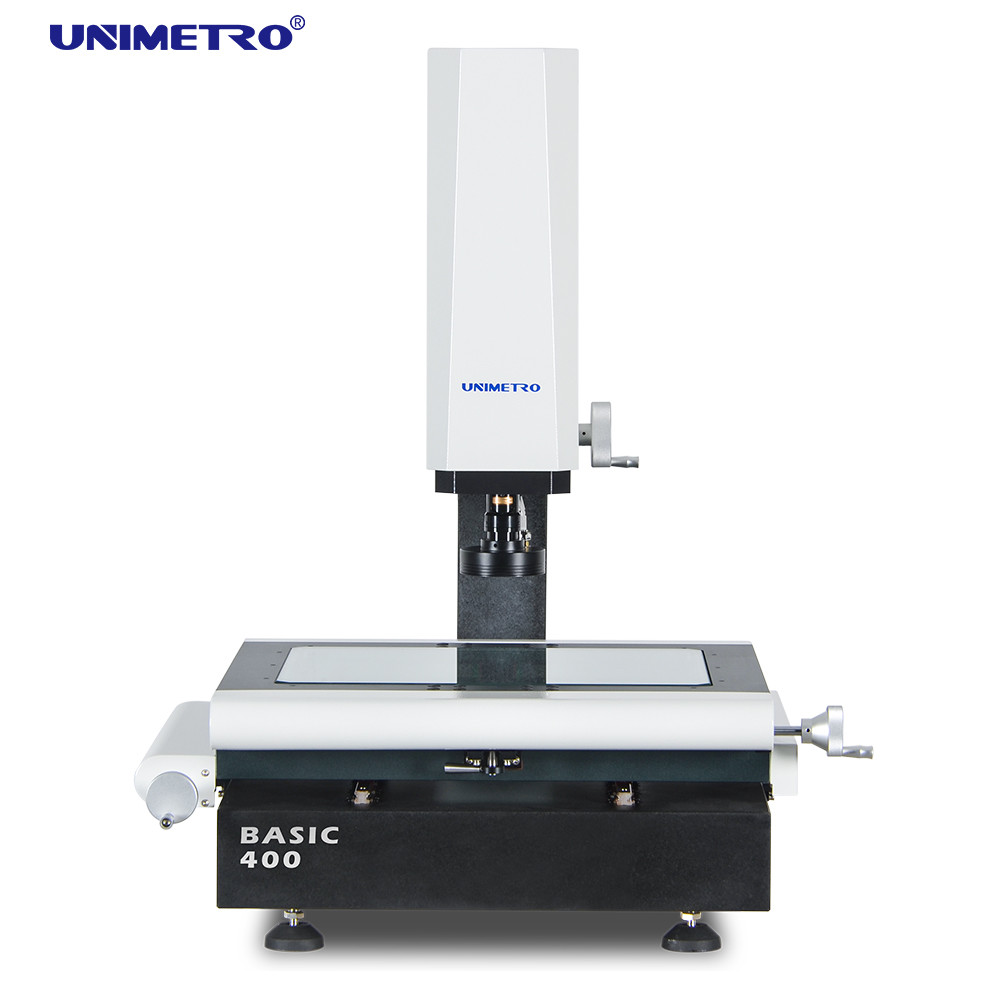

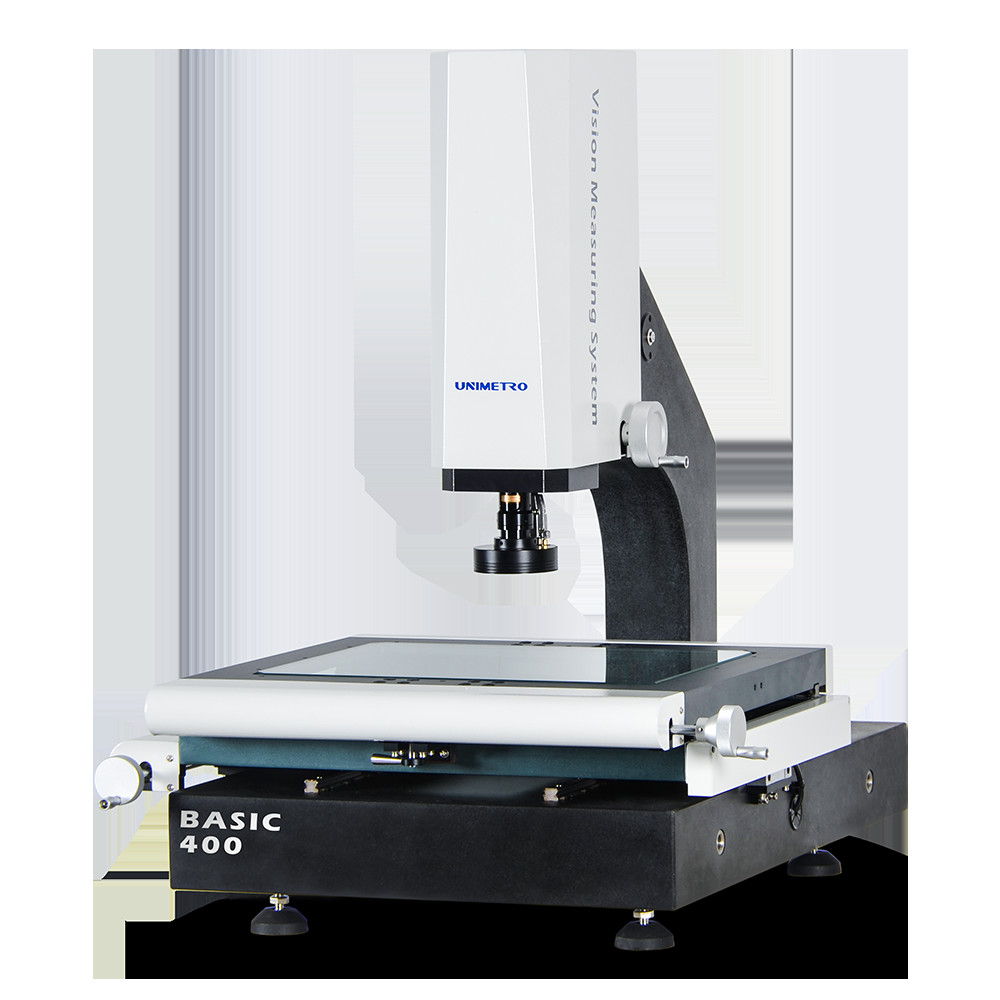

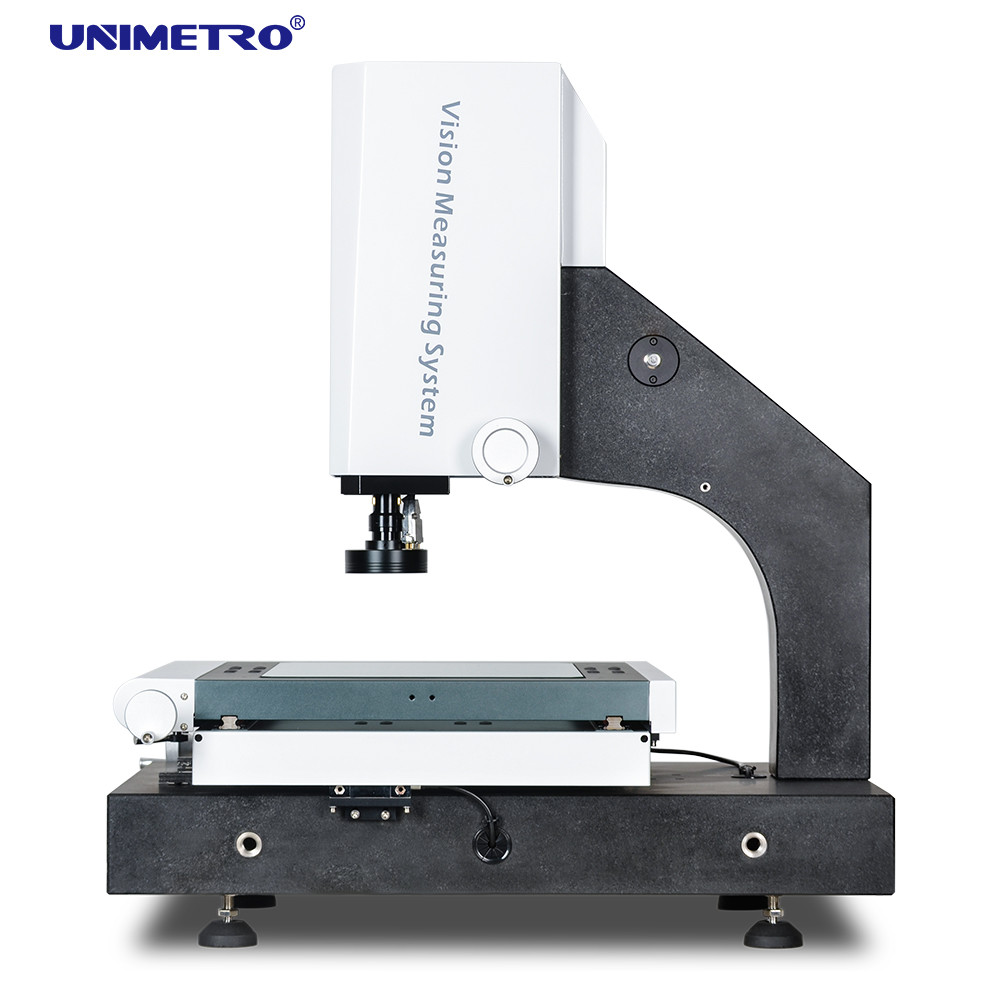

Manual Optical Vision Measurement Machine For Audio High Accuracy 600*740*980mm 0   Manual Optical Vision Measurement Machine For Audio High Accuracy 600*740*980mm 1   Manual Optical Vision Measurement Machine For Audio High Accuracy 600*740*980mm 2



Hardware Configuration

◆ HIWIN linear guide way

◆ Aluminum work stage and hard anodizing

◆ Integrated core control box

◆ 3 axis 0.5um resolution linear scales

◆ Multi function LED parallel light group

◆ Industrial grade high resolution CCD camera

◆ 0.7-4.5X manual dented zoom lens with high repeatability

◆ Supporting multiple external accessories

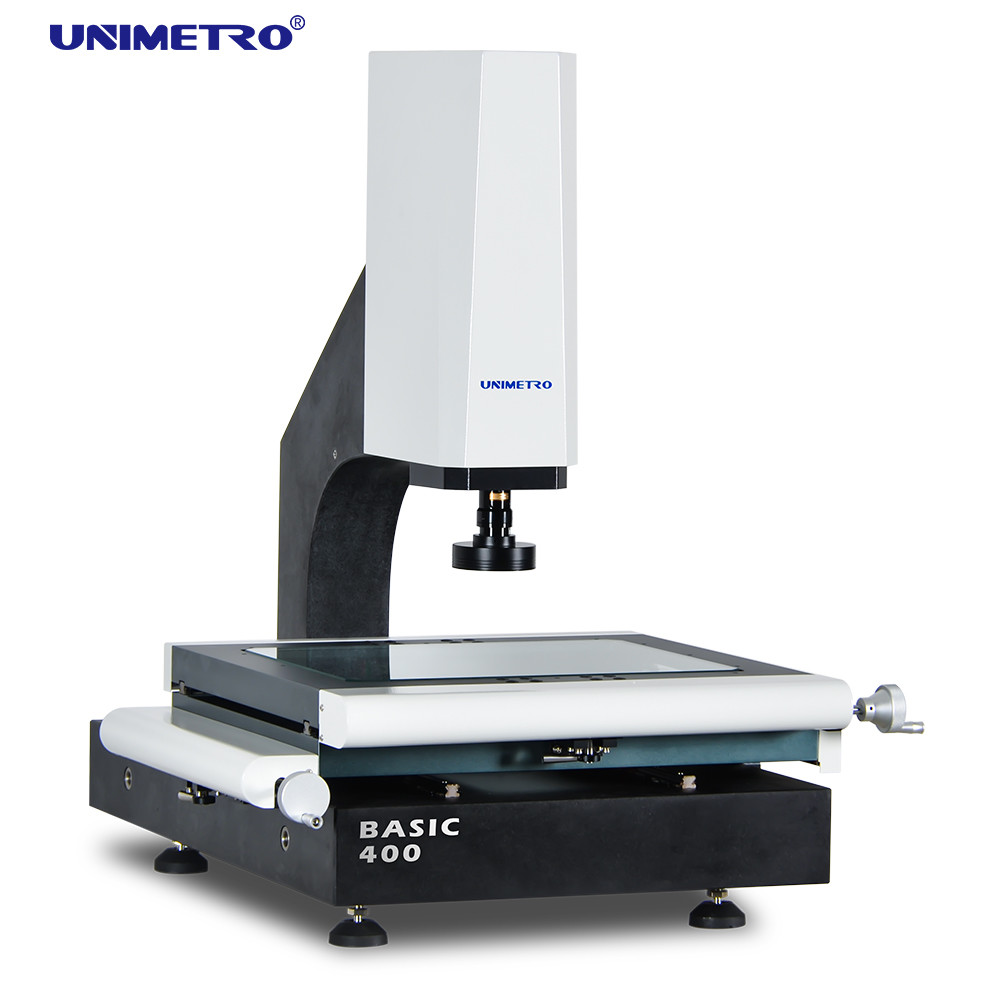

Manual Optical Vision Measurement Machine For Audio High Accuracy 600*740*980mm 3 Manual Optical Vision Measurement Machine For Audio High Accuracy 600*740*980mm 4 Manual Optical Vision Measurement Machine For Audio High Accuracy 600*740*980mm 5



Parameters

Model BASIC 200 BASIC 300 BASIC 400 BASIC 500
Dimension(mm)(L*W*H) 550*540*930 600*740*980 700*840*980 800*940*980
Measuring range (mm)(X*Y*Z) 200*100*150 300*200*200 400*300*200 500*400*200
Measuring Accuracy (μm) 2.5+L/100 2.5+L/100 2.5+L/100 3+L/100
Repeatability (μm) 2.5 2.5 2.5 3
Weight (kg) 140kg 190kg 240kg 290kg
Image and Measuring CCD 1.2M pixel HD digital camera
Lens 0.7-4.5X manual dented zoom lens with maganification signal feedback sensor
Magnification 18-195X ( For reference only. With different camera and lens the magnification will be different. )
Field of View 8.1~1.3mm
Working distance 80mm
Linear scale resolution 0.5 μm( 0.1μm for option )
Driving system X,Y,Z axis manual control
Illumination Programmable 4 sections LED ring surface light , parallel LED contour light , 8 sections LED ring light , co-axial , for option





Software Overview



The UNIMETRO INSPECT3D software is with user friendly UI, easy to learn, powerful function, allows the users to achieve
fast and precise measuring. The software is offering full English language UI, also allows new language development.


◉ Input CAD file and measure

◉ Parts array and macro measuring
◉ Auto focus and height measuring
◉ Navigating function helps fast locating
◉ Powerful geometric measuring function
◉ Multiple data reports and graphical data output function


◉ Flexible user program

◉ Creating reference elements
◉ Powerful edge detecting function
◉ Supporting multiple external accessories
◉ Auto calculation of the elements geometrical tolerance
◉ Measuring complicated production fast and conveniently

Manual Optical Vision Measurement Machine For Audio High Accuracy 600*740*980mm 6
