Gantry Type CNC Video Measuring System For PCB Measurement

Basic Information
Place of Origin: China
Brand Name: UNIMETRO
Certification: CE,ISO
Model Number: HE
Minimum Order Quantity: 1
Price: Discussible
Packaging Details: Wooden Case
Delivery Time: 20~25days
Payment Terms: L/C, T/T
Supply Ability: 10
Detail Information
Product Name: Video Measuring System Dimension: 1700*1180*1750
Measuring Range: 600*500*300mm Measuring Accuracy: 3+L/200um
Repeatability: 3 Linear Scale Resolution: 0.1um
Driving System: CNC Control,close-loop AC Servo Driving System,joystick,mouse Or Keyboard Control Illumination: Programmable 8 Sections LED Ring Light Parallel LED Contour Light
High Light:

Gantry CNC Video Measuring

,

Video Measuring System For PCB Measurement

,

Gantry Video Measuring System


Product Description

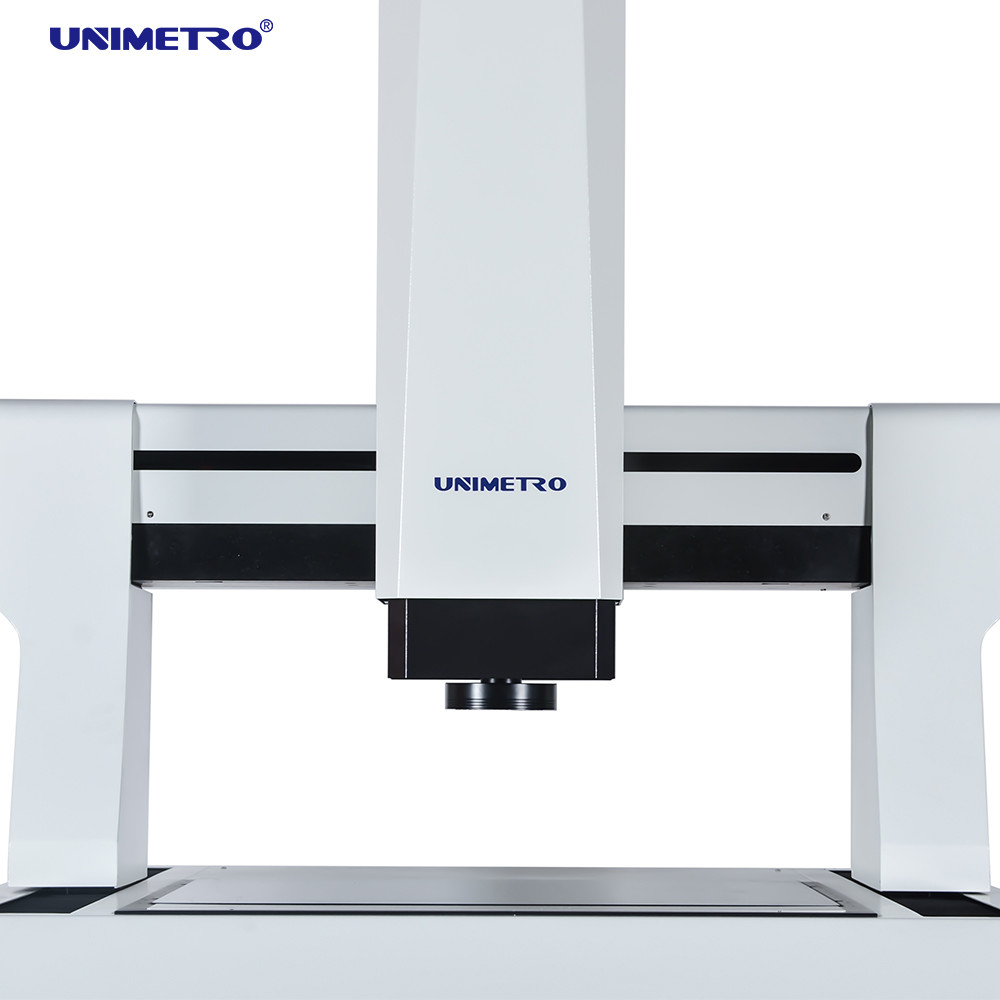

Gantry Type CNC Video Measuring System / VMA For PCB Measurement





He series of high-efficiency gantry type automatic Video Measuring System is specially designed for high-precision and large-scale measurement. It adopts fully closed mobile bridge structure to keep the measurement work fixed. It combines high-precision and high-efficiency organically to effectively detect the geometric parameters of various products. At present, it is mainly used in PCB circuit board, copper clad laminate, flat glass, liquid crystal module, knife mould, insulating material, precision sheet metal and other industries.





Structure Design

>> The whole closed frame moving bridge structure is adopted, the measuring workpiece is fixed, the bearing capacity is large, and the motion performance is good.
>> Introduce finite element analysis technology into mechanical design to ensure high rigidity and high precision mechanical structure.
>> Grade 000 granite base, high strength, corrosion resistance and good stability.
>> Aluminum oxide surface treatment worktable, fast and flexible action control, durable and beautiful.





Configuration

>> RENISHAW open grating ruler, resolution 0.5um, high precision and good stability.
>> Precision linear guide rail, ball screw of grinder and AC servo motor ensure the stability of positioning accuracy of machine system.
>> 2M pixel high-definition color Giga digital camera meets the requirements of clear observation and stable measurement.
>> 6.5x high-definition optical lens, accurate automatic zoom, one pixel correction.
>> Programmable 5-ring 8-zone LED surface light source, transmission parallel LED contour light source system, intelligent 256 level brightness adjustment.
>> Full axis CNC control, AC full closed loop servo motor drive.





Parameters

Model

HE 652

HE862

HE1080

HE1210

HE1512

HE1812

X,Y Travel(mm)

500*600

600*800

800*1000

1000*1200

1200*1500

1200*1800

Z-axis Travel(mm)

200(can be raised according to the requirements of customers)

Load Capacity

approx. 35 kg

Dimension (mm)

1700*1180*1750

1700*1280*1750

1900*1480*1750

2100*1680*1750

2500*1880*1750

2700*1880*1750

Weight(kg)

1500

1800

2900

3200

4400

4800

Resolution

0.5μm(0.1um for option)

Camera

2M HD GIGA digital camera

Zoom Lens

professional auto zoom lens Zoom lens magnification: 1~10X

Video Magnification

18~195X (According to the different models of the selected camera, its magnification will change; the actual magnification is subject to the measured data)

FOV

8.1~1.3mm (According to the different matching schemes of camera and lens, the field of view will change accordingly, and the actual field of view is subject to the measured data)

Accuracy*

≤ (3+L/200)μm

Illumination

Programmable 5-ring 8 sections LED surface illumination (40 sections ring light,Co-axial light,movable multi color ring light for option)

*L is the measurement length, in mm, which is closely related to the mechanical accuracy, focusing accuracy and workpiece surface condition of z-axis.
**The magnification is approximate, depending on the size and resolution of the display.
Customers can select 0.5X or 2X additional mirrors according to their needs, so as to achieve image magnification: 10X ~ 64.5X or 40X ~ 258X
