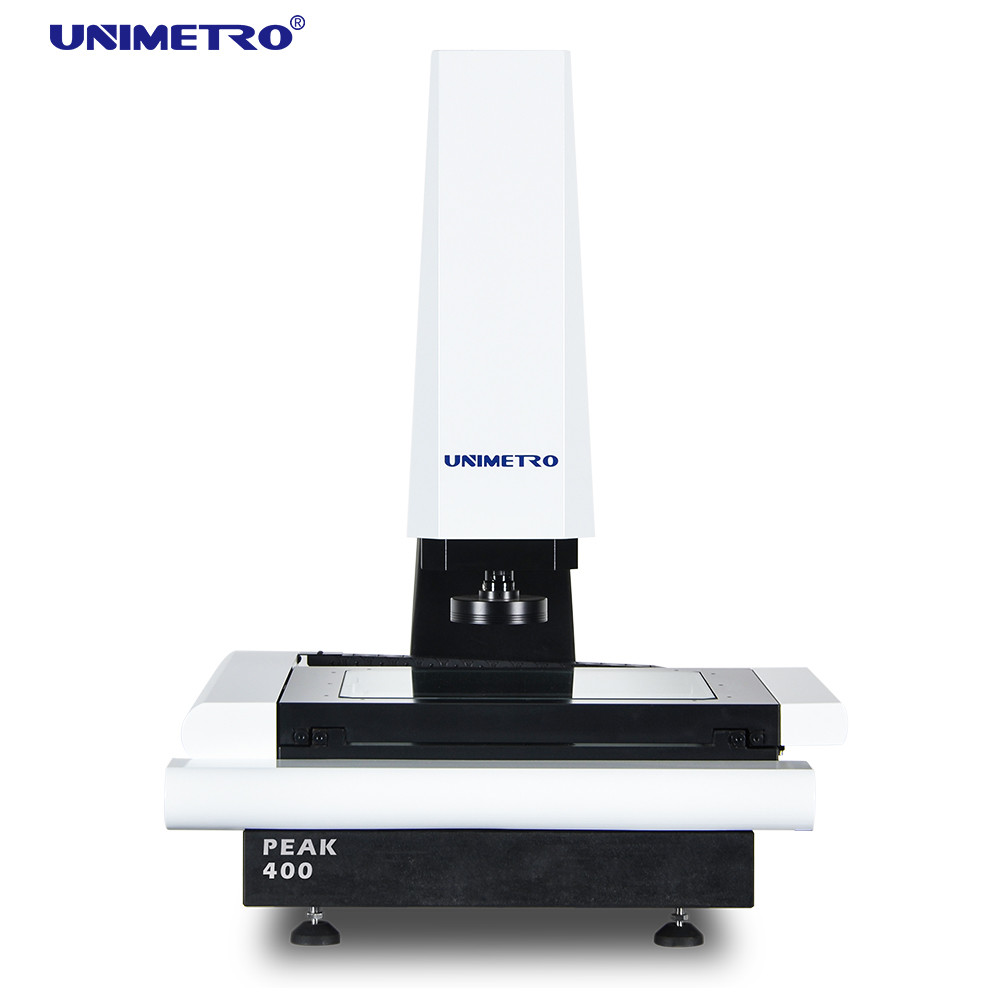

Z Axis Motorized Control 2D VMM Measuring CNC Image Inspection System

Basic Information
Place of Origin: China
Brand Name: UNIMETRO
Certification: CE ISO
Model Number: PEAK
Minimum Order Quantity: 1
Price: Discussible
Packaging Details: Wooden case
Delivery Time: 10~20days
Payment Terms: L/C, T/T
Supply Ability: 30 per month
Detail Information
Dimension: 960*710*1075mm Measuring Range: 400*300*200mm
Accuracy: 3+L/200um Repeatability: 3um
Weight: 380kg Camera: Industrial Grade CCD Camera
Lens: 0.7-4.5X Working Distance: 108mm
Linearscale Resolution: 0.0005mm Warranty: 24 Months
High Light:

2D VMM Measuring Image Inspection System

,

Z Axis Motorized VMM Measuring System

,

Z axis motorized control Image Inspection


Product Description

Economic Type CNC Image Inspection System / 2D VMM Measuring For Height Measurement


Image Inspection System is an instrument used for accurate physical dimension measuring, accuracy up to micron level. Vision measurement machine an optical measuring instrument using the camera to capture the image of the work piece, analyse the image pixel and calculate the 2D dimension with the measuring software.
CNC Image Inspection System is a powerful dimension measuring device designed for mass production quality control process. It is configured with powerful software which makes the measuring process programmable, users can achieve big quantity products measuring by full automatic process. PEAK series is an economical model of full automatic CNC vision developped by UNIMETRO.
The simple and integrated design allow us to build the machine with lower cost, in the mean time keep the high measuring accuracy and best performance. Users are able to enjoy the advantage of high efficiency and labor cost saving from a full CNC Vision measuring machine with very low price.



Hardware Configuration

◉ 3 axis 0.5um resolution linear scales
◉ High performance Auto focus function
◉ Aluminum work stage and hard anodizing

◉ Compatible with Renishaw touch probe(optional)
◉ 3 rings 8 section LED ring light software control and programmable
◉ Parallel light path LED contour light software control and programmable
◉ Confocal Fiber Displacement Sensor(optional)
◉ HIWIN linear guide way
◉ Z axis motorized control
◉ Integrated core control box
◉ Industrial grade CCD camera
◉ Manual pulsegenerator for Z axis movement control
◉ With Laser indicators for auxiliary positioning and focusing (optional)
◉ 0.7-4.5X manual dented zoom lens with magnification signal feedback sensor


Z Axis Motorized Control 2D VMM Measuring CNC Image Inspection System 0




Image Inspection System Application

1) The PEAK series Image Inspection System is compatible with full line of Omron fiber measuring sensors, which offers; More possibility of precise measurement requirement.



2) Stable measurements of inclined or curved surfaces
3) Stable measurements of different materials types
4) Stable measurements of smooth or coarse surfaces

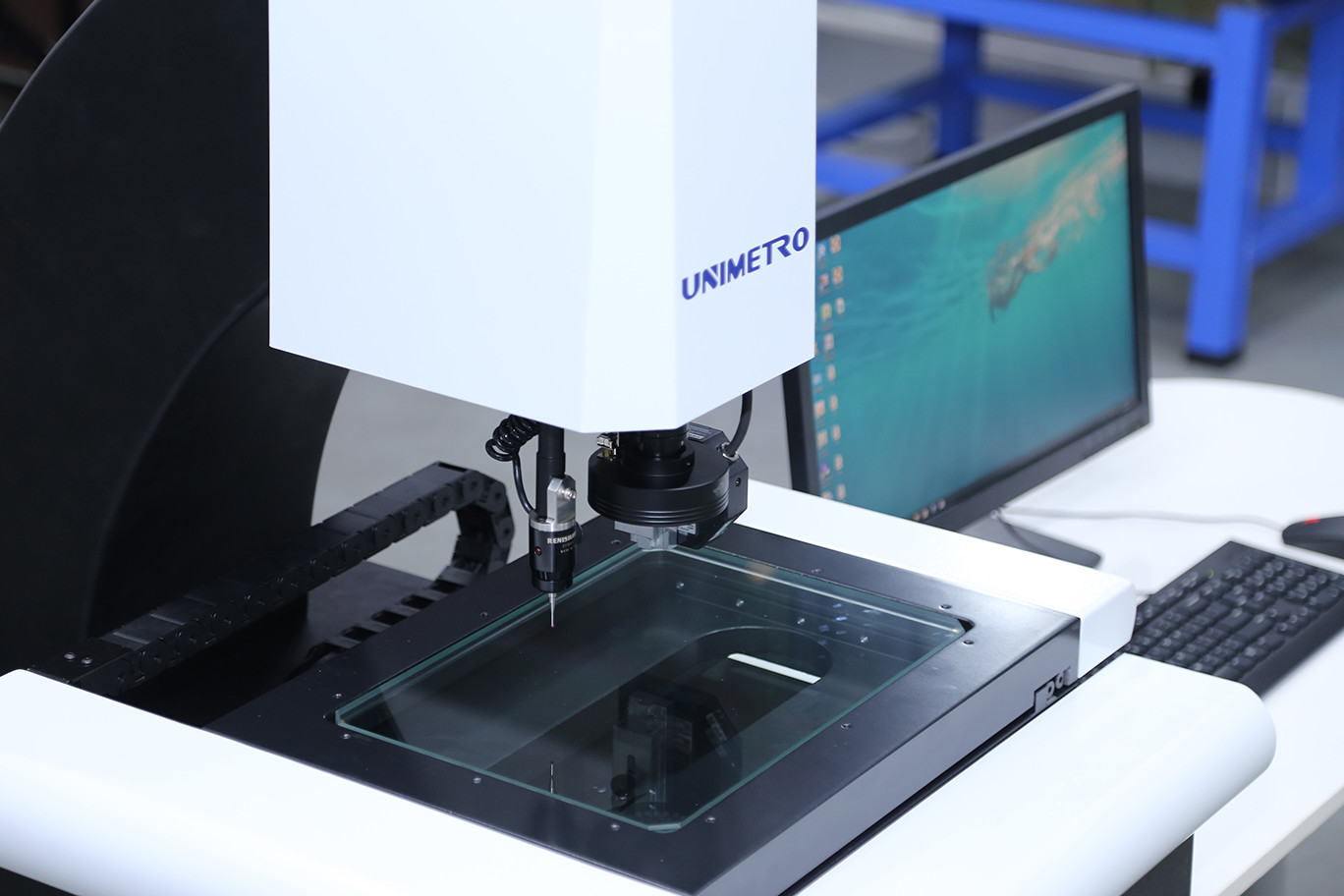

5) PEAK series Image Inspection System is compatible with Renishaw touch probe as optional configuration. Users can easily achieve 2D and 3D measuring function in one machine.
6) The software can calculate the offset between the optical lens and touch probe, makes sure that all measuring results are within one coordinates system. The measuring results can be out put as 3D drawing for reverse engineering.




Software Functions

The UNIMETRO INSPECT3D software is with user friendly UI, easy to learn, powerful function, allows the users to achieve fast and precise measuring.
The software is offering full English language UI, also allows new language development.

◉ Input CAD file and measure
◉ Parts array and macro measuring
◉ Auto focus and height measuring
◉ Navigating function helps fast locating
◉ Powerful geometric measuring function
◉ Multiple data reports and graphical data output function
◉ Flexible user program
◉ Creating reference elements
◉ Powerful edge detecting function
◉ Supporting multiple external accessories
◉ Auto calculation of the elements geometrical tolerance
◉ Measuring complicated production fast and conveniently




Parameters

Model

PEAK 300

PEAK 400

Dimension(mm)(L*W*H)

850*650*1060

1000*800*1080

Measuring Range(mm)(X*Y*Z)

300*200*200

400*300*200

Accuracy(μm)

3+L/200

3+L/200

Repeatability(μm)

3

3

Weight(kg)

120

150

Camera

Industrial grade analog CCD camera and SV2000E video card

Lens

Manual dented zoom lens 0.7-4.5X / 0.7-4.5X manual zoom lens with signal feedback (Optional) / Auto zoom lens (Optional)

Magnification

18-188X (Different combination of camera and lens leads to different magnification range

FOV

8.1-1.3mm (Different combination of camera and lens leads to different FOV range)

Working Distance

108mm

Linear scales resolution

0.0005mm

Illμmination

Programmable 3 rings, 8 sections surface ring light, programmable parallel contour light
