Name: VMA4030 Optical Measuring Instrument with 0.1 µm Resolution and Fast Focusing Function
Brand: Unimetro Precision Machinery Co., Ltd
SKU: ULTRA
Price: 20,500.00 USD
Availability: InStock

Detail Information

Product Name:	Optical Measuring Equipment	Dimension:	17509201700
Measuring Range:	400300200mm	Measuring Accuracy:	2.5+L/200um
Repeatability:	2.5	Linear Scale Resolution:	0.1um
Driving System:	CNC Control,close-loop AC Servo Driving System,joystick,mouse Or Keyboard Control	Illumination:	Programmable 8 Sections LED Ring Light Parallel LED Contour Light
Highlight:	digital readout display , digital readout dro , 0.1um Optical Measuring Equipment

Product Description

VMA4030 Optical Measuring Instrument with 0.1 µm Resolution and Fast Focusing Function

0.1µm Optical Measuring Equipment / VMA4030 With Fast Focusing Function

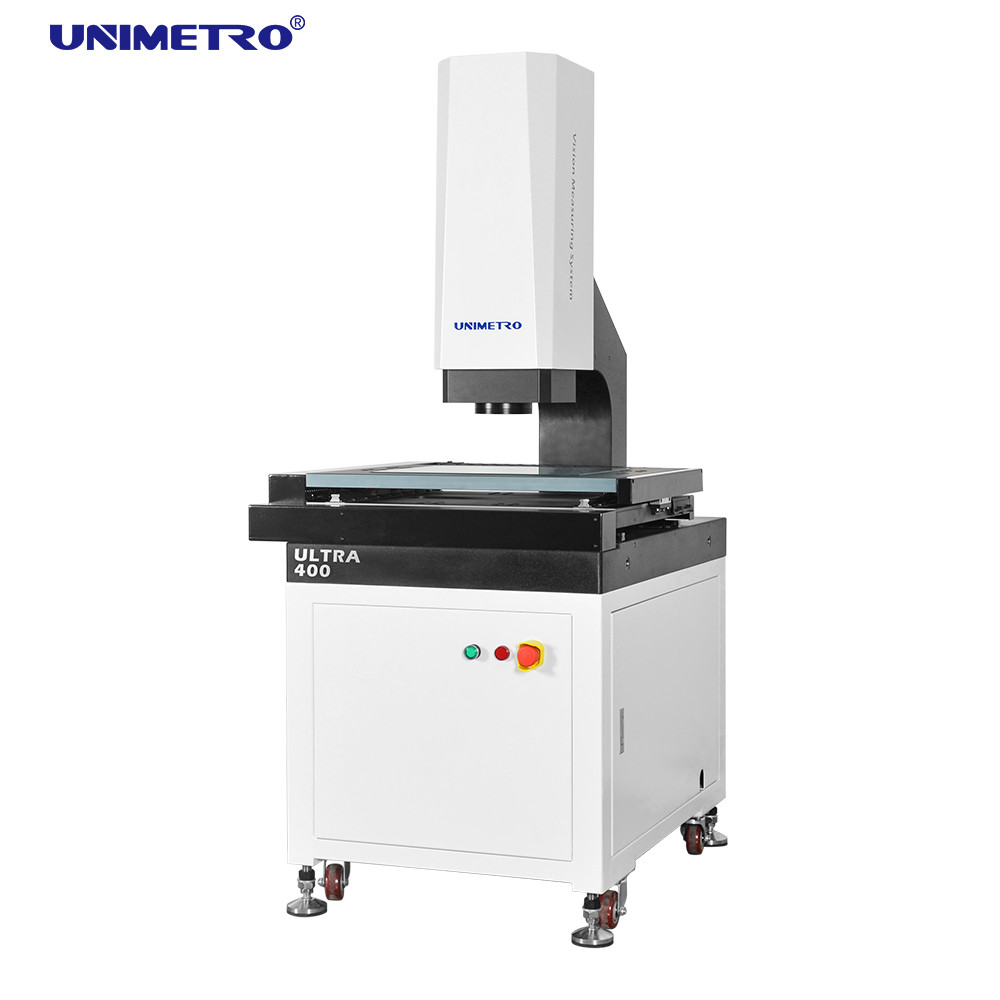

ULTRA series Optical Measuring Equipment is a cantilever high accuracy fully automatic vision measuring machine developed for GD&T measurement with 3 axis automatic motorized control. It is equipped with automatic focusing, automatic lighting control, and automatic movement of hardware and software configuration to make the measurement of linear and geometrical dimensions quickly and accurately.

Equipment Characteristics

Quality Details Control

Granite base and column, excellent stability
Aluminum work stage for fast reacting and flexible motion control
Work stage with hard oxidation surface processing for anti-scratch protection
Standard precision linear guide, grinding ball screw and AC servo motor for precision and stability
Integrated control system with embedded motion control and signal control for stable performance

High Performance Configuration

XYZ three axis CNC automatic control and accurate positioning
0.1 µm high precision glass linear scale for positioning and measurement accuracy
GIGA high resolution color camera for clear observation and accurate measurement
6.5x high-resolution click zoom lens with accurate doubling and one-time pixel correction
Programmable surface 5-ring 8-division LED Cold Illumination with intelligent light adjustment

Flexible Expansibility

Multiple types of non-contact sensors and fast fixturing systems available
Movable color LED ring light for different materials and shapes
Compatible with touch probe, non-contact measuring sensors and robot arm
Highly increases measuring efficiency through flexible expansion options

Functions Introduction

Software automatically identifies and measures elements like lines and circles
Intelligent processing functions including out of tolerance red warning, pause functions, and manual measurement options
Breakpoint setting function for intelligent switching between manual and automatic measurement
Powerful laser measurement function for high-speed flatness measurement, surface scanning, and precision curved surface analysis
Auxiliary dimming indication function to improve accuracy and efficiency

Technical Parameters

Model	ULTRA 300	ULTRA 400	ULTRA 500	ULTRA 600
X/Y-axis Travel (mm)	300x200	400x300	500x400	600x500
Z-axis Travel	200mm (can be raised according to customer requirements)
X/Y/Z-3 axis Linear Scale	Glass Linear Scale Resolution: 0.1µm
Guidance Mode	Precision linear guide, double-track double slider guide
Operation Mode	Joystick controller, Mouse operation, automatic detection program
Accuracy	XYZ-axis: ≤2.5+L/200µm
Repeatability	±2.5µm
Video System - CCD	High definition 1/3" Color CCD Camera
Lens	6.5X continue click zoom lens; Optical Magnification: 0.7X-4.5X; Video Magnification: 26X~172X (21.5" monitor)
Illumination System - Contour	LED parallel contour illumination
Illumination System - Surface	0~255 Stepless adjustable 5-ring 8-division LED surface illumination
Magnification	0.7X~4.5X
Measuring Software	UNIMETRO 2D Fully Auto Measuring Software
Load Capacity	25Kg
Working Environment	Temperature 20℃±2℃, Humidity Range<2℃/hr, Humidity 30~80%, Vibration<0.002g, <15Hz
Power Supply	220V/50Hz/10A
Dimension (WDH) (mm)	16007801700	17509201700	1900x1080x1700	105012801700
Net Weight (kg)	380	450	600	800
