Dimension:	17509201700mm	Net Weight:	450kg
X/Y Travel:	400x300	Accuracy:	≤2.5+L/200um
Repeatability:	±2.5um
Highlight:	Optical Vision Measurement Machine , 450kg Vision Measurement Machine , Hard Oxidation Vision Measurement Machine

Model		ULTRA 300	ULTRA 400	ULTRA 500	ULTRA 600
X/Y-axis Travel(mm)		300x200	400x300	500x400	600x500
Z-axis Travel		200mm (can be raised according to the requirements of customers)
X/Y/Z-3 axis Linear Scale		Glass Linear Scale Resolution: 0.1um
Guidance Mode		Precision linear guide,double-track double slider guide.
Operation Mode		Joystick controller, Mouse operation, automatic detection program.
Accuracy		XYZ-axis:≤2.5+L/200um
Repeatability		±2.5um
Video system	CCD	High definition 1/3" Color CCD Camera
	Lens	6.5X continue click zoom lens; Optical Magnification: 0.7X-4.5X; Video Magnification: 26X~172X(21.5”monitor)
Illumination system	Contour	LED parallel contour illumination
	Surface	0~255 Stepless adjustable 5-ring 8-division LED surface illumination
Magnification		0.7X~4.5X
Measuring Software		UNIMETRO 2D Fully Auto Measuring Software
Load Capacity		±2.5um
Working Environment		25Kg
Power Supply		Temperature 20℃±2℃,Humidity Range<2℃/hr, Humidity 30~80%, Vibration<0.002g, <15Hz
Ddimension(WDH)(mm)		220V/50Hz/10A
Ddimension(WDH)(mm)		16007801700	17509201700	1900x1080x1700	105012801700
Net Weight(kg)		380	450	600	800

Software Functions
The UNIMETRO INSPECT3D software is with user friendly UI, easy to learn, powerful function, allows the users to achieve fast and precise measuring. The software is offering full English language UI, also allows new language development.

FAQ
Q1: Are you a factory or trading company ?
A1: We are a factory and giving you the quickest reply in 24 hours.
Q2: What's your company mainly in?
A2: We are mainly produce Vision measuring machine,Coordinate measuring machine ,CMM&VMM fixturesetc.
Q3: How to Choose the Appropriate Specification?
A3: As long as you tell us variety and size of product to be measured, our professional team would advise you of measuring instrument of suitable specifications.
Q4: Do you accept customized service?
A4: Be sure! We can provide not only typical machines, but also the machines customized to customer's needs.
Q5: What is your warranty period?
A5: Our product warranty period is 1 year. Our product quality is very stable, and we have improved a lot on some breakable parts. You can rest assured of our product quality.

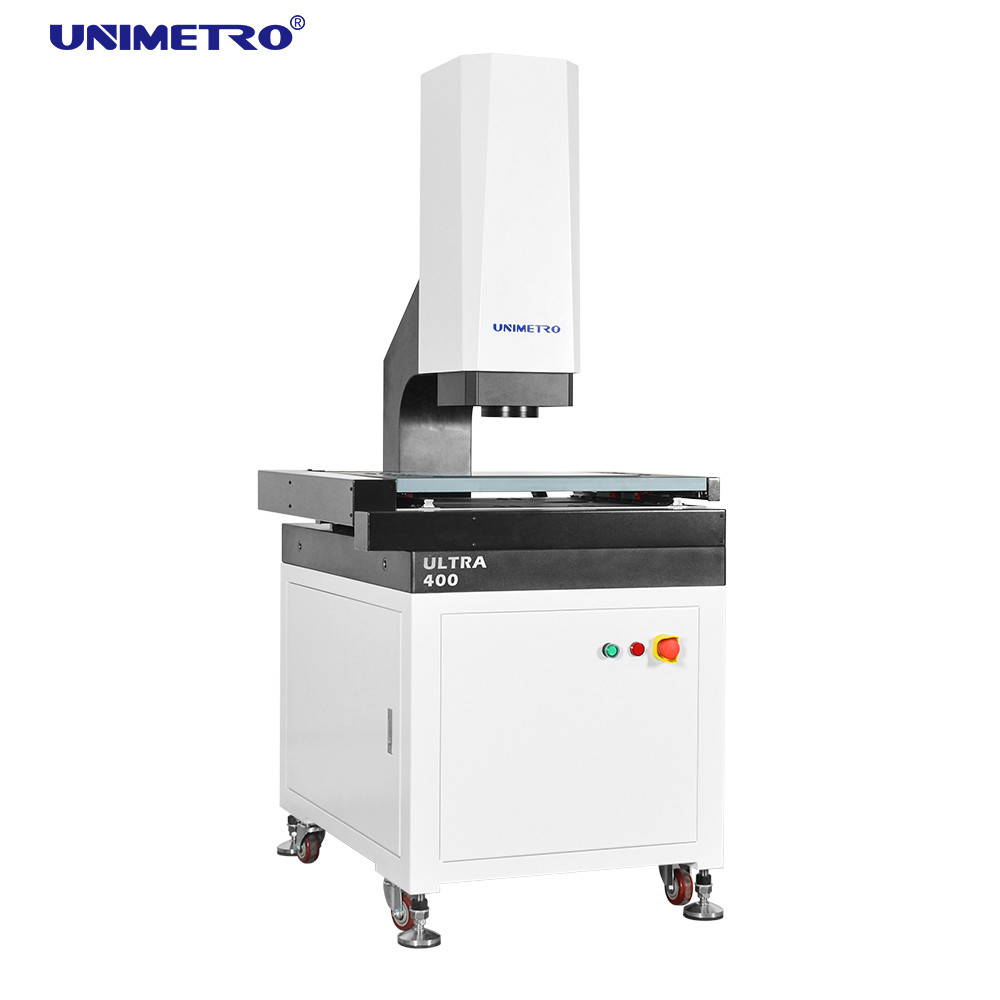

450kg Optical Vision Measurement Machine With Hard Oxidation Surface Processing
