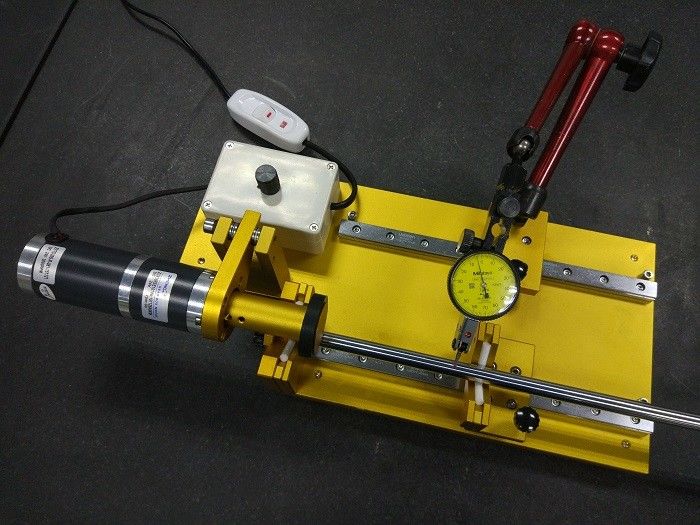

Name: Tool Measuring CMM Fixture Kits for Roundness Tester & Diameter Error Measurement
Brand: Unimetro Precision Machinery Co., Ltd
SKU: UTE-1
Price: 20,500.00 USD
Availability: InStock

Detail Information

Supporting Tools:	Milling Tools, Drilling Head	Measuring Device:	Dial Gauge
End Clamp:	Included	Tool Length:	Up To 150mm
Tool Diameter:	Up To 25mm	Rotating Control:	Automatic
Highlight:	cmm holding fixtures , CMM Fixtures

Product Description

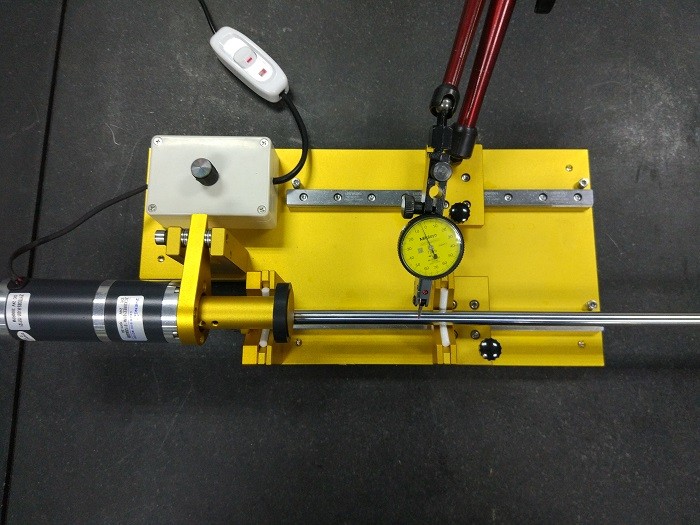

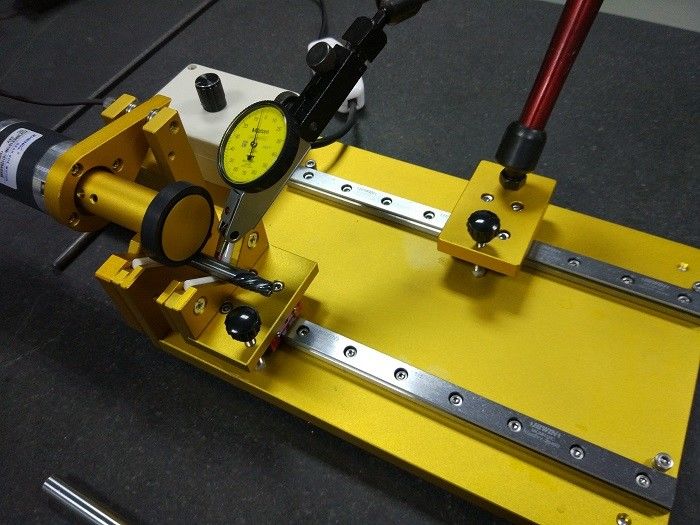

UTE-1 Series Tool Measuring CMM Fixture Kits

High-precision fixture kits designed for roundness testing and diameter error measurement of milling tools, drills, and long rod materials.

Product Overview

The UTE-1 series tool testing fixture is specifically engineered for roundness measurement of milling tools, drills, and long rod materials. Featuring a rational design and stable base, this system enables high-accuracy tool measuring at an extremely competitive cost.

DC Motor Rotation Control

Utilizes DC motor for rotating movement control with adjustable RPM, ensuring stable motion during roundness measurement processes.

High Performance Linear Guide Way

Incorporates HIWIN linear guide way technology to ensure dial gauge movement stability and superior measuring accuracy.

High Accuracy Ceramic Supporter

V-type supporter crafted from high-accuracy ceramic material delivers exceptional repeatability of tool locating (less than 0.001mm) and extended product lifecycle with easy replacement capability.

Flexible Gauge Compatibility

Standard M8 screw hole accommodates various brands and types of gauges or gauge fixtures to meet diverse measuring requirements.

Stable End Clamp Fixing

End clamp fixing screws enable convenient adjustment of measuring length to accommodate different tool types and sizes.

Adjustable Tool End Supporter

Features adjustable supporter on the tool end side to provide stable tool location throughout the measuring process, ensuring reliable measurement results.

Manufacturer Information

Our Clients & Agents

Frequently Asked Questions

Are you a factory or trading company?

We are a factory and provide responses within 24 hours.

What does your company primarily manufacture?

We specialize in producing Vision Measuring Machines, Coordinate Measuring Machines, and CMM & VMM fixtures.

How to choose the appropriate specification?

Our professional team will recommend suitable measuring instrument specifications based on your product variety and size requirements.

Do you accept customized service?

Yes, we provide both standard machines and customized solutions tailored to specific customer needs.

What is your warranty period?

Our products come with a 1-year warranty. We maintain stable product quality with significant improvements to breakable parts for reliable performance.

Tag:

Place of Origin:	China
Brand Name:	UNIMETRO
Model Number:	UTE-1

Minimum Order Quantity:	1
Price:	Discussible
Packaging Details:	Paper box
Delivery Time:	5 work days
Payment Terms:	T/T
Supply Ability:	50 per month
