Clear Acrylic Base Board Fixturing Kit for VMM & CMM – Transparent Precision Measurement Fixture

Basic Information

Place of Origin:	China
Brand Name:	UNIMETRO
Model Number:	FlexFix-V-Plate

Minimum Order Quantity:	1
Price:	Discussible
Packaging Details:	Paper box
Delivery Time:	8 work days
Payment Terms:	T/T
Supply Ability:	20 per month

Get Best Price Contact Now

Detail Information

Material:

Acrylic

Color:

Transparent

Size:

Up To 400*300

Screw Size:

Highlight:

cmm fixture components

CMM Fixtures

Product Description

Clear Acrylic Base Board Fixturing Kit for VMM & CMM

Transparent precision measurement fixture designed for Vision Measurement Machines (VMM) and Coordinate Measuring Machines (CMM) applications.

Product Overview

These acrylic base boards enable optimal use of contour lighting for clear edge observation while ensuring precise vertical optical path alignment and image quality for accurate measurements.

Base Plate Configuration Options

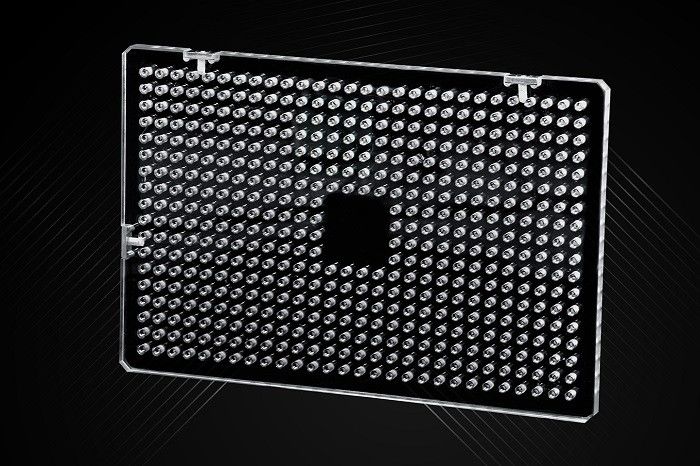

Holes Style: Maximizes part setup capacity for simultaneous inspection of multiple components with a clear central viewing area
Windows Style: Provides optimal visibility for small parts through multiple transparent viewing windows

Multiple base plate sizes available. For detailed specifications, pricing, and custom configuration options, please contact our technical service team for personalized assistance.
