Product Name:	CMM Fixtures	Function:	For Fixing The Workpieces
Application Area:	In Many Type Of CMM Machine	Locating Holes:	More Than 200 Sets
Screws:	M8,	Backing Suitcase:	Included
Highlight:	cmm fixture components , cmm holding fixtures

Product Description

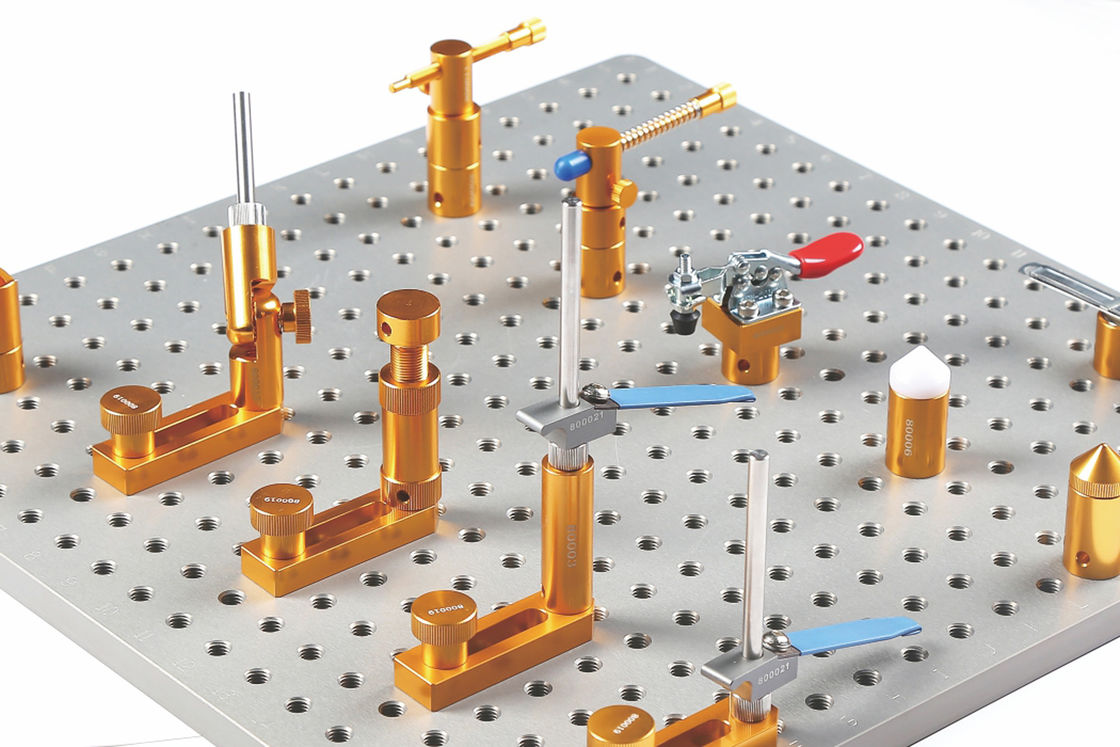

Inspection Gauges & Tool Holder Set – Surface Plate Fixture for CMM/VMM Equipment

Complete Fixture Set Components

Part Number	Product Name	Quantity	Functional Description
80001, 80002, 80007	Combined Support Rod (Ø12mm)	6 pc/20MM 6 pc/30MM 6 pc/50MM	Support and position workpieces through different height combinations; support other fixture components at various levels
80003, 80004, 80008	Combined Support Rod (Ø16mm)	6 pc/20MM 6 pc/30MM 6 pc/50MM	Support and position workpieces through different height combinations; support other fixture components at various levels
80005, 80006, 80009	Combined Support Rod (Ø20mm)	6 pc/20MM 6 pc/30MM 6 pc/50MM	Support and position workpieces through different height combinations; support other fixture components at various levels
800010	Spring Plungers	2 pc/set	Provide elastic compression force for applications where other fixing methods may cause impact
800012	Universal Joint with Damping	2 pc/set	Damped universal joint with 15-degree angular indexing; can be locked at fixed or arbitrary rotation angles
800013	High Adjustable Brace	2 pc/set	Connect other components and adjust to different heights as needed
800014	Magnetic Flat Support	4 pc/set	Reliable and repeatable fixation of steel workpieces using magnetic force
800015	Flat Head Support Block	2 pc/set	Fix and support thin workpieces while maximizing installation space
800016	Male Connector	6 pc/set	Connect fixture components while simultaneously fixing and supporting workpieces
800017	Bottom Plate Fastener	2 pc/set	Secure fixture bottom plate to marble working platform
800018	V-shaped Support Column	2 pc/set	V-type support column with self-adaptive characteristics for measuring shaft parts
800019	V-shaped Support Column	6 pc/set	Secure fixture assembly to floor mounting
800020	Movable Support Block	6 pc/set	Stepless adjustable positioning when floor mounting holes cannot be used
800021	Medium Pressure Plate	5 pc/set	Medium-sized pressure application with ergonomic handle design for comfortable operation
800022	Small Chuck	2 pc/set	Bidirectional adjustable chuck providing greater compaction force with easy operation
800023	Long Pressure Plate Support Rod	2 pc/set	Extended support rod for applications requiring large pressure plate adjustment range
800024	Short Pressure Plate Support Bar	3 pc/set	Compact support rod for applications with limited pressure plate adjustment range
800025	Aluminum Conical Support	3 pc/set	Used for locating holes and axes in workpiece positioning
800026	Nylon Conical Support	3 pc/set	Locate holes and shafts while preventing surface damage to products
800027	Crowbar	2 pc/set	Provides leverage for easy rotation of support rods and cylindrical fixture assemblies
800028	Parts Pallet	1 pc/set	Innovative component tray for organized workspace; stores in packing box when not in use
800029	108 Pieces Suitcase	1 pc/set	Durable aluminum alloy handle packing box with large capacity for firmware tray and bottom plate storage
-	Base Plate	400300, 400400, 500500, 600600, Custom	Engraved Arabic numerals and English letters facilitate fixture coordinate recording and quick restoration of previous fixture status
