Name: Precision CalliperFix CMM Fixture Kits Integrating Gauges & Clamping Systems for High-Accuracy Calibration
Brand: Unimetro Precision Machinery Co., Ltd
SKU: CalliperFix
Price: 20,500.00 USD
Availability: InStock

Detail Information

Base Material:

Steel

Guide Way:

Hiwin Linear Guide Way

Supporting Blocks:

Included

Gauges Combine:

Available

Highlight:

cmm fixture components

CMM Fixtures

Product Description

Precision CalliperFix CMM Fixture Kits

Integrating gauges and clamping systems for high-accuracy calibration of callipers

Product Overview

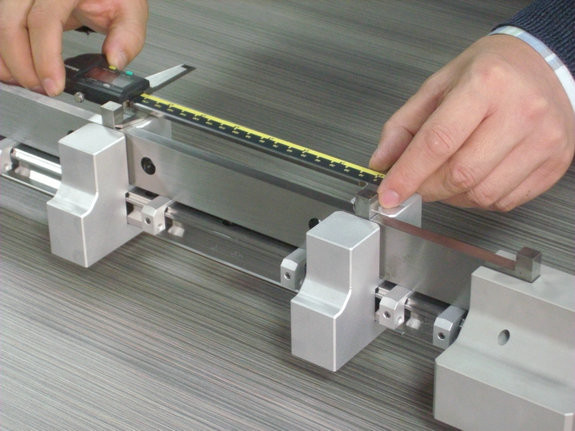

The UNIMETRO CalliperFix series gauges fixturing system is specifically engineered for callipers calibration. Its unique design ensures optimal gauge combination, providing stable and reliable performance. The system effectively clamps and combines gauges of various sizes, making it the ideal fixture for CNAS institutions and callipers manufacturers.

Design Features

Stable Steel Base: Constructed from durable steel material to ensure operational stability during calibration, delivering more accurate and scientific measurement data
Flexible Moving Block: Adjustable within the working range to combine multiple gauges for comprehensive calibration
Advanced Locking Structure: Utilizes guide way holes with rotary locking screws to create tensioned supporting points for effective gauge combination

Clamping System Advantages

Reasonable Supporting Points: For gauges exceeding 100mm length, supporting blocks ensure precise fixturing with removable, position-adjustable blocks
Double Tension Support Points: One end features dual supporting points with constant force pressing, ensuring full contact between gauge end planes
Self-Adjusting Single Support Point: The opposite end utilizes a flexible single supporting point that accommodates gauge movement while maintaining full contact

Company Profile

Specializing in precision measurement equipment manufacturing

Our Clients & Agents

Frequently Asked Questions

Are you a factory or trading company?

We are a factory and provide responses within 24 hours.

What does your company primarily manufacture?

We specialize in Vision Measuring Machines, Coordinate Measuring Machines, and CMM & VMM fixtures.

How to choose the appropriate specification?

Our professional team will recommend suitable measuring instrument specifications based on your product variety and size requirements.

Do you accept customized service?

Yes, we provide both standard machines and customized solutions tailored to customer needs.

What is your warranty period?

Our products come with a 1-year warranty. We have enhanced durability on breakable components, ensuring reliable product quality.
