Callipers Calibration CMM Fixture Kits Combining Gauges Fixture Clamping Systems

Basic Information
Place of Origin: China
Brand Name: UNIMETRO
Model Number: CalliperFix
Minimum Order Quantity: 1
Price: Discussible
Packaging Details: Paper box
Delivery Time: 7 work days
Payment Terms: T/T
Supply Ability: 10 per month
Detail Information
Base Material: Steel Guide Way: Hiwin Linear Guide Way
Supporting Blocks: Included Gauges Combine: Available
High Light:

cmm fixture components


CMM Fixtures

Product Description


Callipers Calibration CMM Fixture Kits Gauges Fixtures Gauges Combining

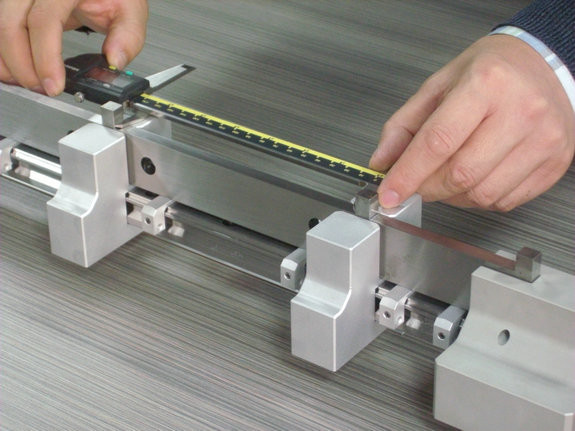

The UNIMETRO Calliperfix series gauges fixturing system is designed for the callipers calibration. The unique design ensures the best combining of the gauges. The whole system is stable and reliable, able to clamp and combine different size of gauges, it is the ideal fixture for the CNAS institution and callipers manufacturers.


Reasonable design concept


Stable base


The system base is using steel material, ensures the operation stability during the callipers calibration, offers more accurate and scientific detecting data.


Flexibly adjusting moving block


The moving block is able to move within the working range to combine the gauges, available to combine multiple gauges for calibrating.


Outstanding locking structure


Using the holes on the guide way to lock the base, rotary locking screws make the supporting points to tension status then the gauges combining is effective.


Callipers Calibration CMM Fixture Kits Combining Gauges Fixture Clamping Systems 0


Stable clamping


Reasonable supporting points


When using the gauges length over 100mm the system is offering supporting blocks, ensures more accurate fixturing. The blocks are able to put at any position of the guide way, all the blocks are removable.


Offering double tension support points with constant force


One end of the gauges is using double supporting points offering locking force, each point is with tension constant force pressing, ensures full contact between the end plane and the other end of the gauges.


Self-adjusting fix single supporting point


The other end is using single supporting point, offers flexibility to the gauges movement, ensures it is full contact with the other combining plane.
