Detail Information

Suitable Model:	Full Line Of Horizontal And Vertical Profile Projectors	Function:	Universal Fixturing Function
OEM Service:	Available	Additional:	Fixtures Rotating Table
Model:	UWJ, UWF	Brands:	UNIMETRO
Highlight:	cmm fixture components , cmm holding fixtures

Product Description

Optical Profile Projector CMM Fixture Kits with Rotary Table & OEM Service

Comprehensive Fixture Solutions for Optical Profile Projectors

Optical profile projectors are utilized across various industries where users need to measure diverse parts. Unimetro offers specialized optical profile projector accessories designed to minimize the time and cost associated with developing custom fixtures. We provide standard models compatible with most standard products, along with comprehensive OEM services.

Consult with our technical service staff before purchasing to ensure optimal fixture selection for your specific application requirements.

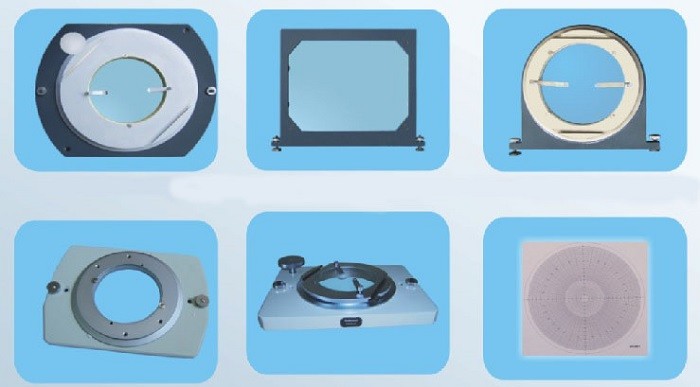

Available Fixture Models

UMF1A Large Size Rotating Work Stage

Features fine adjustment capabilities for precise positioning

UWJ4F1 Flat Work Table

Designed specifically for horizontal profile projectors

UWJ4F4 Round Work Stage

Circular work platform for horizontal profile projectors

UWJ1-Z76 Round Work Stage

Specifically designed for vertical profile projectors

UWJ1-Z76B Small Round Work Stage

Compact size with fine adjustment for vertical machines

UWF5 Holding Bracket

Secure holding mechanism for various workpiece types

UWF4 Press Fixture

Pressure-based fixturing solution for stable measurement

V-Type Fixtures

UWJ4F2 for horizontal and UWF3 for vertical profile projectors

Company Overview

Our Clients & Distribution Network

Frequently Asked Questions

Q1: Are you a factory or trading company?

A1: We are a manufacturing factory and guarantee responses within 24 hours.

Q2: What does your company specialize in?

A2: We primarily manufacture Vision Measuring Machines, Coordinate Measuring Machines, and CMM & VMM fixtures.

Q3: How to choose the appropriate specification?

A3: Our professional team will recommend suitable measuring instruments based on your product variety and measurement requirements.

Q4: Do you accept customized services?

A4: Absolutely! We provide both standard machines and custom solutions tailored to specific customer needs.

Q5: What is your warranty period?

A5: Our products come with a 1-year warranty. We have enhanced durability in breakable components, ensuring reliable product quality.

Tag:

Place of Origin:	China
Brand Name:	UNIMETRO
Model Number:	UWJ, UWF

Minimum Order Quantity:	1
Price:	Discussible
Packaging Details:	Paper box
Delivery Time:	7 work days
Payment Terms:	T/T
Supply Ability:	20 per month
