Auto Focus Vision Measuring Machine / System With Z Axis Motorized HD CCD Camera

Basic Information
Place of Origin: China
Brand Name: UNIMETRO
Certification: CE,ISO
Model Number: EXTRA
Minimum Order Quantity: 1
Price: Discussible
Packaging Details: Wood case
Delivery Time: 15 work days
Payment Terms: T/T
Supply Ability: 50 per month
Detail Information
Product Name: Vision Measuring Machine Z Axis Movement: Motorized
Z Axis Movement Control: Keyboard, Software Focus: Automatic
X,Y Movement: Manual CCD Camera: HD CCD Camera
Measuring Accuracy: (2.5+L/100)um Repeatability: 2.5um
Illumination: LED Ring For Surface Light, Parallel LED Illumination For Contour Light Linear Scale Resolution: 0.5um(0.1um For Option)
Magnification: 18 - 195X
High Light:

vision measuring machine

,

vision measurement system


Product Description

Auto Focus Vision Measuring Machine / System With Z Axis Motorized HD CCD Camera





● Vision Measuring Machine an optical measuring instrument using the camera to capture the image of the work piece, analyse the image pixel and calculate the 2D dimension with the measuring software. EXTRA series optical measuring machine is an important instrument used in your products quality control process. It ensures your products dimension accuracy, makes your products more competitive.



● EXTRA Series Vision Measuring Machine is designed and developed by UNIMETRO, which is a popular model fit for most of the accurate 2D dimension measuring application and end users from different industries, as Mold, Electronics, Semi conductor, Plastic Injection, 3C products, Medical care, Aviation...etc.



● The Z axis of EXTRA series Vision Measuring Machine is configured with close loop servo motor system, to achieve high accuracy movement control and auto focus function, users are able to control the Z axis movement and image focusing in the software or keyboard, highly increase the measuring efficiency.



● The EXTRA series Vision Measuring Machine is innovatively configured with manual pulse generator for fine adjustment of the Z axis position, users can achieve Z axis fine adjustment and focusing easily. Comparing to the keyboard or joystick motion control, the MPG is more precise and sensitive, users can even move the axis micron by micron. Offering the best using experience for users.

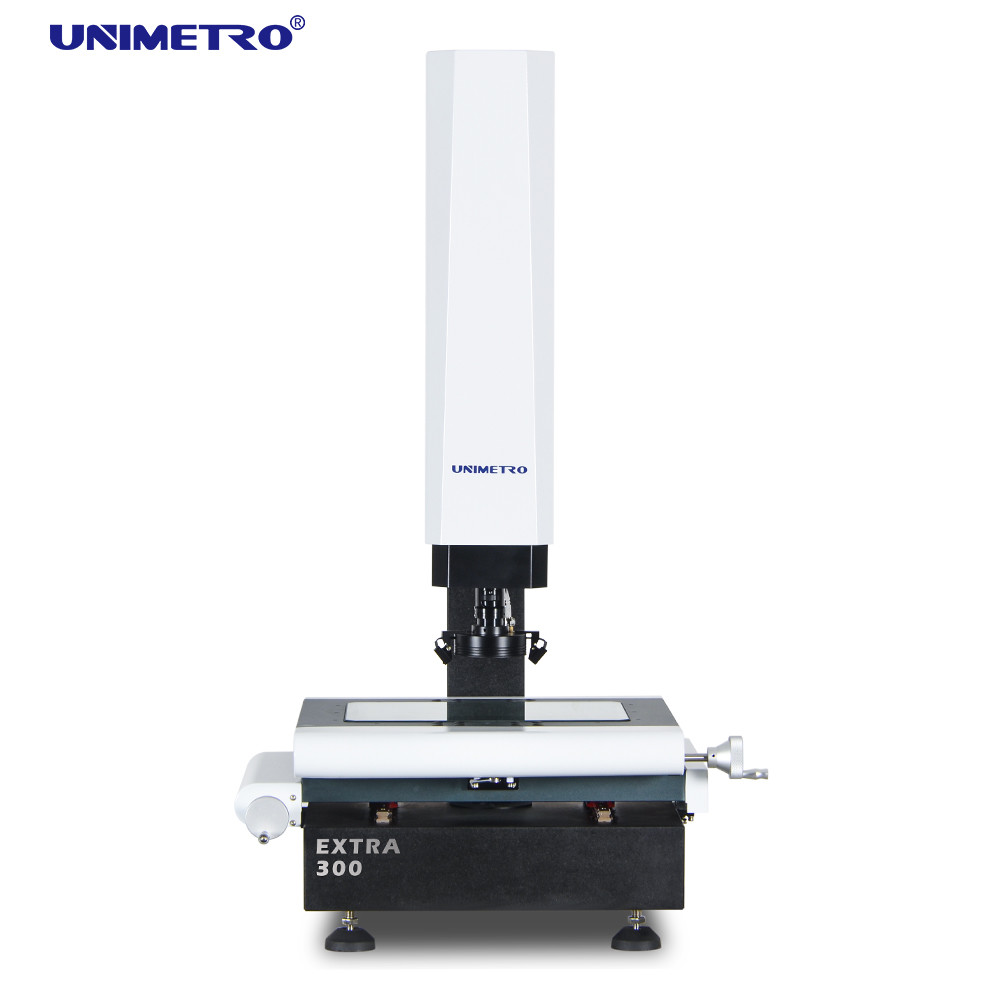

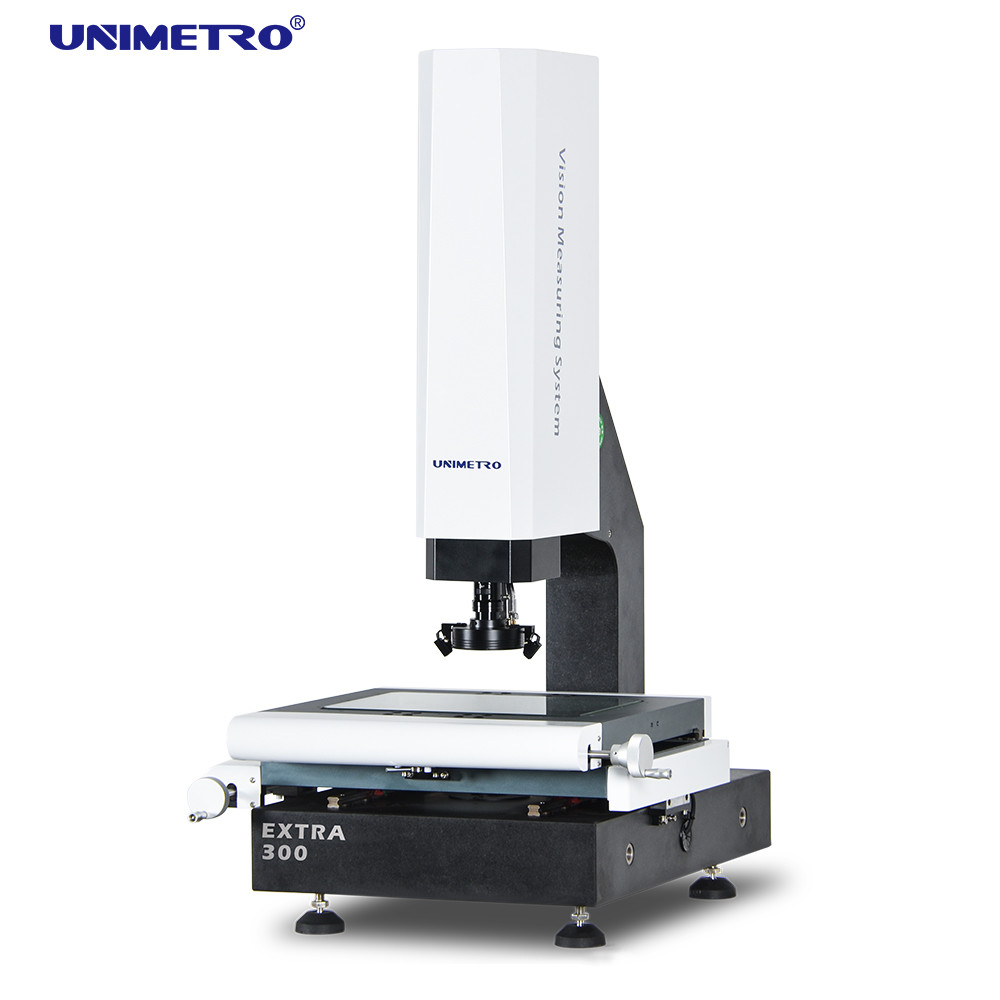

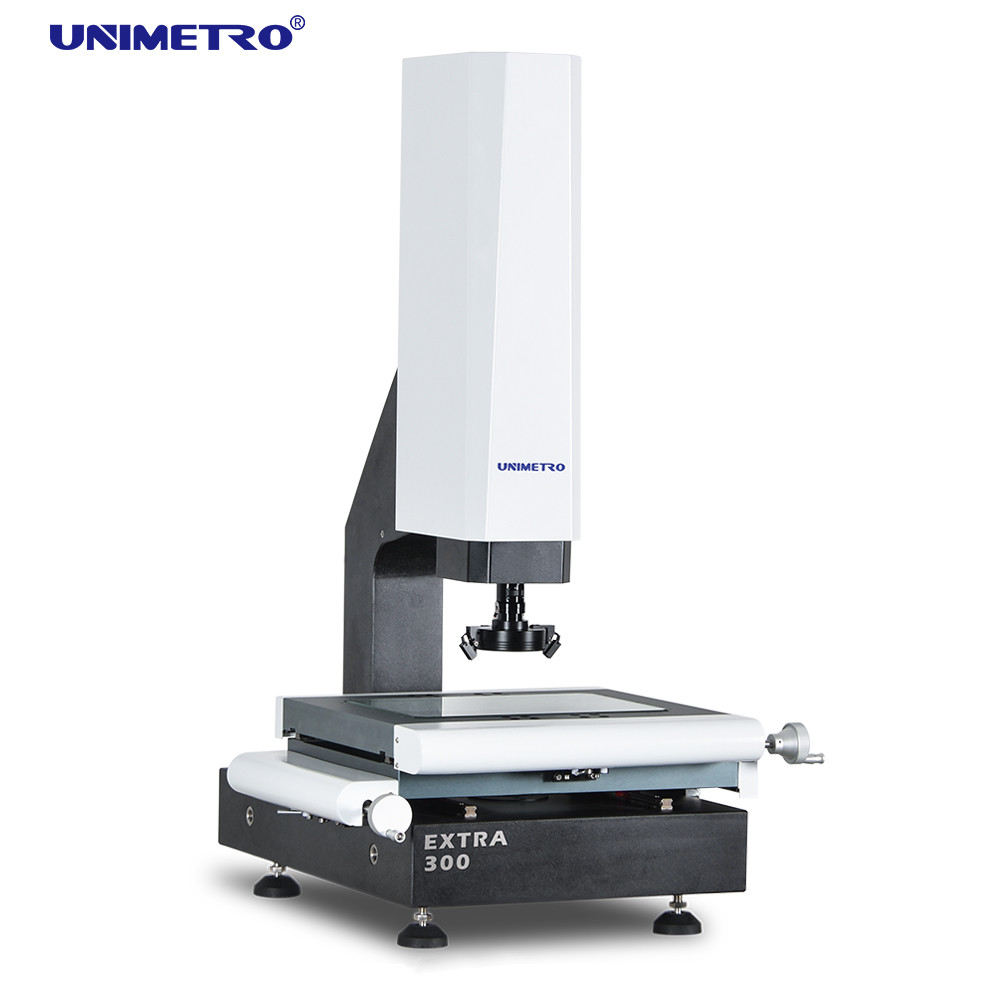

Auto Focus Vision Measuring Machine / System With Z Axis Motorized HD CCD Camera 0 Auto Focus Vision Measuring Machine / System With Z Axis Motorized HD CCD Camera 1 Auto Focus Vision Measuring Machine / System With Z Axis Motorized HD CCD Camera 2





Hardware Configuration

◉ 3 axis 0.5um resolution linear scales
◉ High performance Auto focus function
◉ Compatible with Renishaw touch probe
◉ Aluminum work stage and hard anodizing
◉ 3 rings 8 section LED ring light software control and programmable
◉ Parallel light path LED contour light software control and programmable


◉ 1.2M pixel HD digital camera
◉ Integrated core control box
◉ Z axis motorized control
◉ HIWIN linear guide way
◉ Manual pulse generator for Z axis movement control
◉ With Laser indicators for auxiliary positioning and focusing
◉ 0.7-4.5X manual dented zoom lens with magnification signal feedback sensor





Parameters

ModelEXTRA 200EXTRA 300EXTRA 400 EXTRA 500
Dimension(mm)(L*W*H)500*540*930600*740*980700*840*980800*940*980
Measuring range (mm)(X*Y*Z)200*100*150300*200*200400*300*200500*400*200
Measuring Accuracy (μm)2.5+L/1002.5+L/1002.5+L/1003+L/100
Repeatability (μm)2.5 2.52.53
Weight (kg)140kg 190kg240kg290kg
Image and MeasuringCCD200mm (can be raised according to the requirements of customers)
LensManual dented zoom lens 0.7-4.5X/Auto zoom lens 1-10X
Magnification18-195X ( For reference only. With different camera and lens the magnification will be different. )
Field of View8.1~1.3mm
Working distance108mm
Linear scale resolution0.5 μm( 0.1μm for option )
Driving systemX , Y axis manual conrol , Z axis close-loop CNC control and AUTU FOCUS funtion available
IlluminationProgrammable 4 sections LED ring surface light , parallel LED contour light , 8 sections LED ring light , co-axial , for option





Software Functions

◉ Input CAD file and measure
◉ Parts array and macro measuring
◉ Auto focus and height measuring
◉ Navigating function helps fast locating
◉ Powerful geometric measuring function
◉ Multiple data reports and graphical data output function


◉ Flexible user program
◉ Creating reference elements
◉ Powerful edge detecting function
◉ Supporting multiple external accessories
◉ Auto calculation of the elements geometrical tolerance
◉ Measuring complicated production fast and conveniently

<>>

Auto Focus Vision Measuring Machine / System With Z Axis Motorized HD CCD Camera 3
