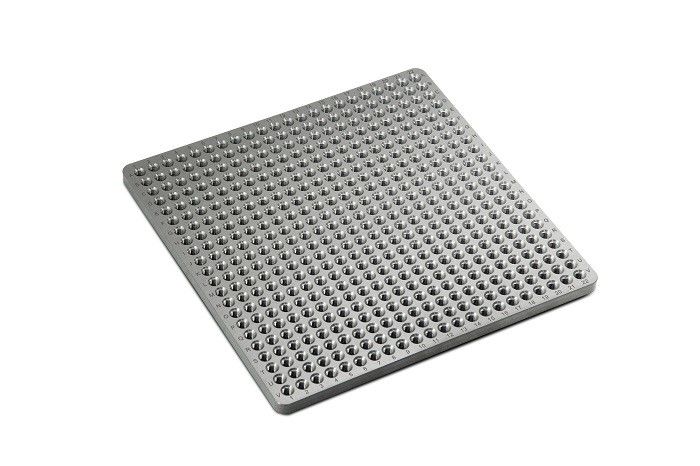

Precision Base Plate for CMM Fixture – 300mm Size with 0.02mm Flatness for 3D Measurement Workholding

Basic Information

Place of Origin:	China
Brand Name:	UNIMETRO
Model Number:	100300

Minimum Order Quantity:	1
Price:	Discussible
Packaging Details:	Paper box
Delivery Time:	5 work days
Payment Terms:	T/T
Supply Ability:	20 per month

Get Best Price Contact Now

Detail Information

Material:	Aluminum	Dimension:	300*300 Mm
Flatness:	0.02mm	Pitch:	13mm
Thickness:	12 Mm
Highlight:	cmm fixture components , CMM Fixtures

Product Description

Precision Base Plate for CMM Fixture – 300mm Size with 0.02mm Flatness

Product Overview

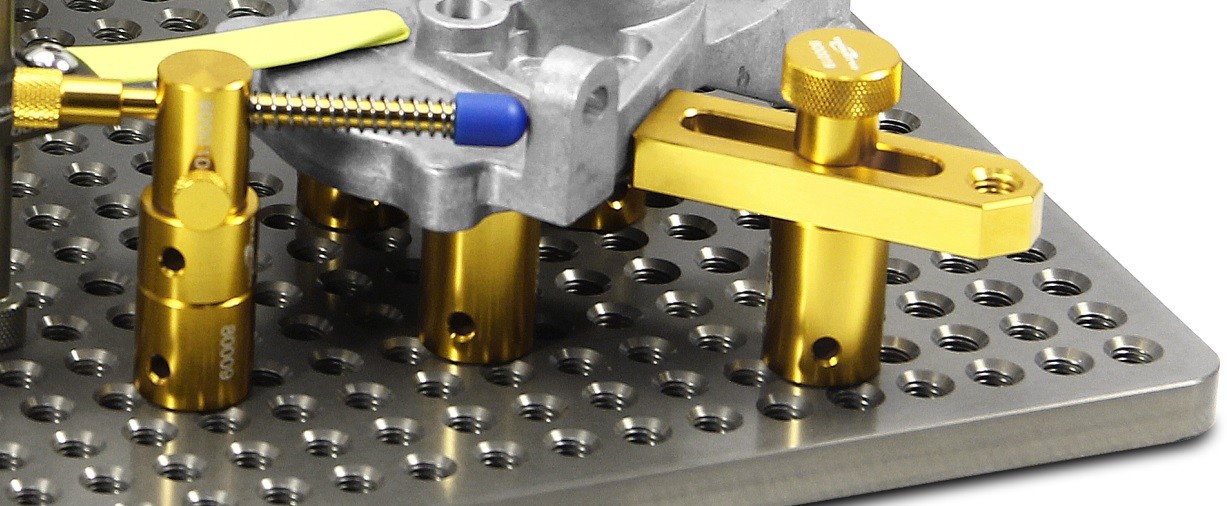

The FlexFix series coordinate measuring machine fixture offers a precision base board measuring 300×300mm, specifically designed for securing small workpieces during 3D measurement operations.

Construction & Manufacturing

Manufactured from solid aluminum material, these base boards undergo aging processes and precision grinding. The surface features hard anodizing treatment to ensure exceptional rigidity and long-term dimensional accuracy.

Technical Specifications

Dimensions: 300mm × 300mm
Flatness: 0.02mm tolerance
Thread Type: M8 mounting holes
Material: Solid aluminum with aging treatment
Surface Finish: Hard anodized

Quality Assurance

The FlexFix series coordinate measuring machine fixture meets stringent tolerance requirements, with flatness accuracy up to 0.04mm, ensuring critical fixture quality for precision measurement applications.

Manufacturer Information

Our Manufacturing Capabilities

Our Clients & Distribution Network

Frequently Asked Questions

Q1: Are you a factory or trading company?

A1: We are a factory and provide responses within 24 hours.

Q2: What does your company primarily manufacture?

A2: We specialize in producing vision measuring machines, coordinate measuring machines, and CMM & VMM fixtures.

Q3: How to choose the appropriate specification?

A3: Our professional team will recommend suitable measuring instrument specifications based on your product variety and measurement requirements.

Q4: Do you accept customized services?

A4: Yes, we provide both standard machines and customized solutions tailored to specific customer needs.

Q5: What is your warranty period?

A5: Our products come with a 1-year warranty. We have enhanced durability in critical components, ensuring reliable product quality.
