Coordinate Measuring Machine CMM Fixtures Baseboard 400MM CMM Holding Fixtures

Basic Information
Place of Origin: China
Brand Name: UNIMETRO
Model Number: 100400
Minimum Order Quantity: 1
Price: Discussible
Packaging Details: Paper box
Delivery Time: 5 work days
Payment Terms: T/T
Supply Ability: 30 per month
Detail Information
Flatness: 0.02 Mm Material: Aluminum
Surface Processing: Hard Anodizing Color: Black
Pitch: 13 Mm Dimension: 400*400mm
High Light:

cmm fixture components

,

CMM Fixtures


Product Description



Coordinates Measuring Machine CMM Fixture Kits Base Board 400 MM



M8 base board 400*400mm



The FlexFix series coordinates measuring machine fixture is offering varies of base board, for different kinds of workpieces, including tiny objects or huge and heavy workpieces.



The FlexFix series coordinates measuring machine fixture is able to satisfy strict tolerance requirement, flatness up to 0.04mm, it is the critical item of the fixture quality.

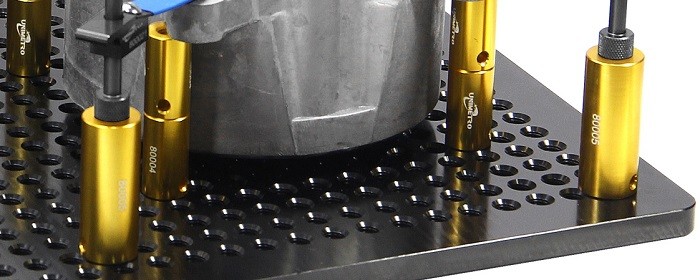

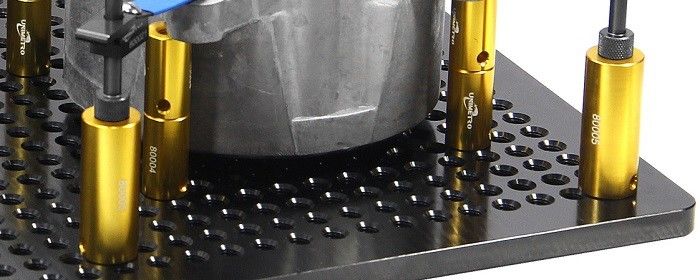

Coordinate Measuring Machine CMM Fixtures Baseboard 400MM CMM Holding Fixtures 0



The base boards are machining from a complete aluminum material, with aging process and grinding, the surface processing is using hard anodizing, ensures the rigidity and accuracy.

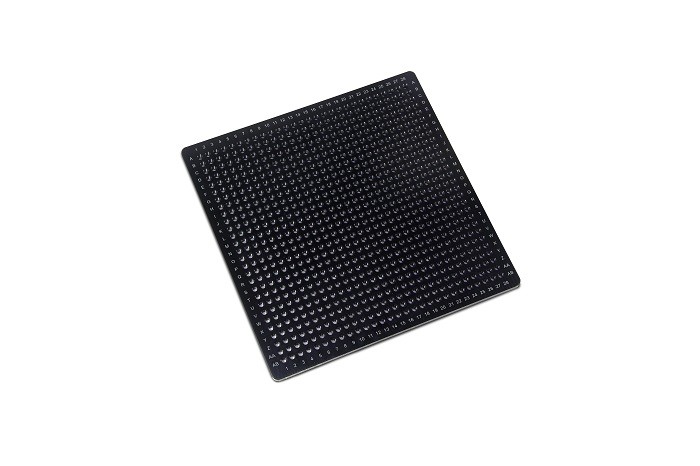

Coordinate Measuring Machine CMM Fixtures Baseboard 400MM CMM Holding Fixtures 1



Specification



100400 400*400mm Pitch 13mm Thickness 12mm



The base boards are available for the OEM, if other dimension should be required, please contact our service staffs.
