OEM Automatic 3D Co - ordinate Measuring Machine for CAD Compare

Basic Information
Place of Origin: China
Brand Name: UNIMETRO
Certification: CE,ISO
Model Number: HELIUM
Minimum Order Quantity: 1
Price: Discussible
Packaging Details: Wooden Case
Delivery Time: 30 work days
Payment Terms: T/T
Supply Ability: 30 per month
Detail Information
Product Name: 3D Co - Ordinate Measuring Machine Measuring Range: OEM,Customize
MPEe: ≤ 1.7+L/350 (μm) MPEp: ≤ 2.3μm
Power Supply: 220V ±10% Scale Resolution: 0.5,0.1um
Max 3D Speed: 500mm/s Max 3D Acceleration: 900mm/s2
Min. Air Pressure: 5.5bar(0.55MPa) Air Consumption: 150 NL/min
High Light:

coordinate measuring machines


optical coordinate measuring machine

Product Description


OEM Automatic 3D Co - ordinate Measuring Machine for CAD Compare

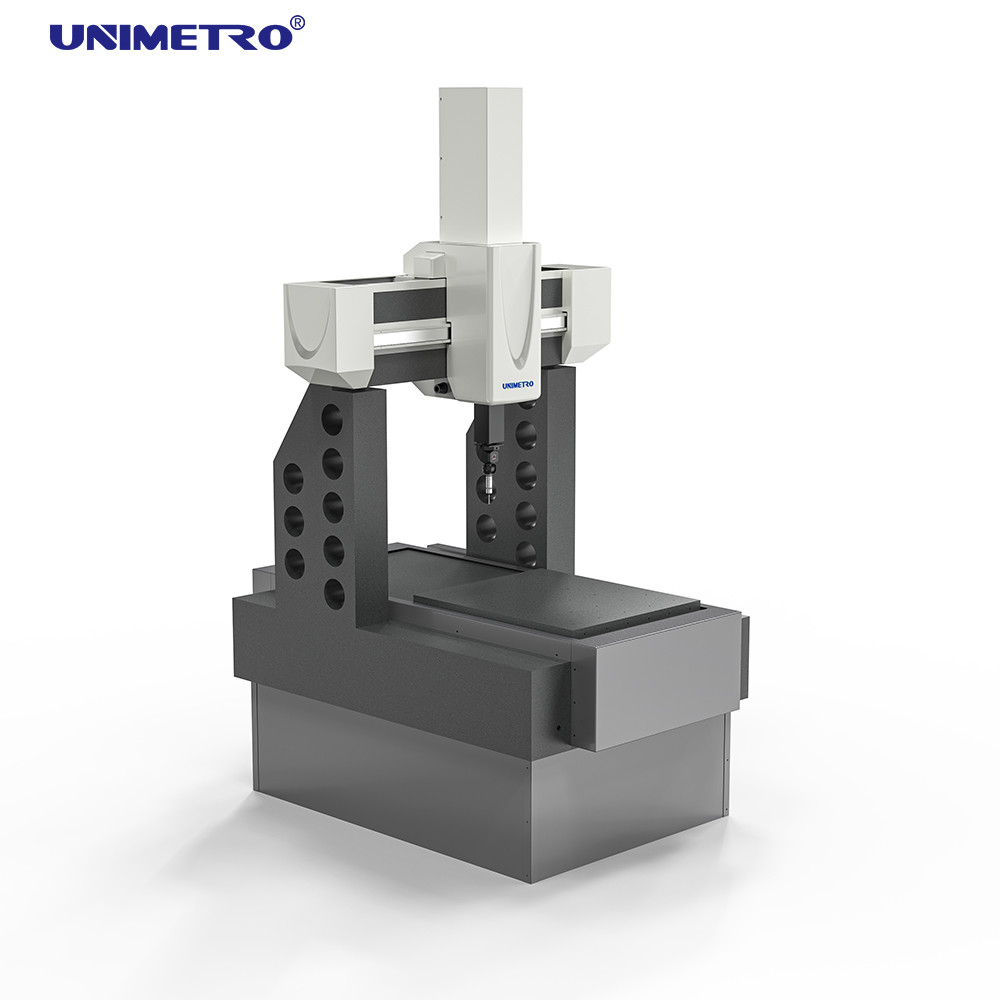

The bridge 3D Co - ordinate Measuring Machine adopts the most simplified design, and it is the most cost-effective one on the market. It is especially suitable for the testing requirements of precision machining products, such as electronic products, molds, household appliances, automobile small parts and aviation small parts.

Performance Characteristics:

Working platform --- High quality granite platform:

Granite working platform is the overall support of the 3D Co - ordinate Measuring Machine, and its quality affects the overall performance of the machine. The three shafts are all made of granite, which are made of granite. They are non stress, anti rust and anti-corrosion, easy to maintain, low coefficient of thermal expansion and small deformation affected by temperature. It can effectively reduce the vibration of the measuring machine and improve the performance of the whole machine.

Transmission system --- Friction type "self correction" transmission:

3D Co - ordinate Measuring Machine friction transmission is used in all three-axis transmission, and "self correcting deviation" stable transmission system is adopted. The transmission system adopts the structure of "fixed + micro suspension" to ensure that the transmission is parallel to the guide rail! At the same time, it can maintain the stability of precision and the stability of motion. Moreover, it improves the self-protection of the machine tool in case of collision and is safer to use.

RENISHAW linear scale --- High precision grating ruler:

Grating ruler is an important part of coordinate system. Renishaw is the giant of three coordinate parts in the world. Its quality and after-sales service have the best reputation and guarantee in the market. All our machines use Renishaw high-precision grating ruler with resolution from 0.1 μ m to 20 nm.

Product Parameters

HE Measuring Range(mm) Accuracy
500 500-1000 400.500 1.3+L/350 1.3
600.700 600-1000 600 1.3+L/350 1.3
800 800-1500 600.700 1.5+L/350 1.5
1000 1000-3000 800 1.5+L/350 1.5
Technical parameter:

Helium series 3D Co - ordinate Measuring Machine is specially designed for small and medium-sized products, moulds, electronic products industry and so on. The size can be selected according to customers' needs.Our design of small and medium-sized three-dimensional light, fast installation, no foundation.

Product Details:

Rational-DMIS Software

Rational - DMIS is a newly developed large-scale integrated 3D measurement software package. In addition to the development and design of studio software, which takes into account the requirements of beginners for easy learning and use of the software and the functional requirements of high-level users for the software, more importantly, it has become a model for CMM measurement software standardization. Rational DMIS programs are designed with the full and native DMIS kernel until version 5.0 of DMIS, which is totally different from the so-called "support DMIS" (the kernel is not DMIS). As we all know, DMIS has become an ISO standard (ISO 22093:2003)

3D Co - ordinate Measuring Machine Probe System(For Option)
MH20I Manual Head by RENISHAW(Manual) Indexing axis A:0°~90° Step distance:15°
Indexing axis B:±180° Step distance:15°
Spatial measurement orientation:168 times

Positional repeatability: 1.5um, Each axis is in steps of 15° with repeat positioning function.
PH20MT Motorized Probe Heads by RENISHAW
Repeatability of position: +0.5 μm
Positioning steps: Limitless
Rotating axis : 360°
Swing axis :0°- 115°
Total number of positions : Countless
Operational temperature : 10-40℃
The PH10T can be connected to any M8 threaded interface probe and extension rod (Maximum allowable lengthening to 300mm).



Product Application:

3D Co - ordinate Measuring Machine is mainly used for the measurement of cabinets, frames, gears, cams, worm gears, worms, blades, curves, curved surfaces, machinery, automobile, aviation, military, furniture, tool prototypes, machines and other small and medium-sized parts, molds and other industries.
3D Co - ordinate Measuring Machine can also be used in electronics, hardware, plastics and other industries. It can accurately detect the size, shape and shape tolerance of workpieces, thus completing tasks such as part inspection, shape measurement and process control.
