HP Series CNC Vision Measuring Machine – Micron-level Precision Inspection for Semiconductor Components

HP: High-Precision (High Precision)

The main features of the fixed gantry machine are high precision and full automation. "HP" in this context refers to the gantry machine as a "micron-level non-contact automatic optical precision inspection instrument". It helps to enhance the overall production accuracy and productivity for customers.

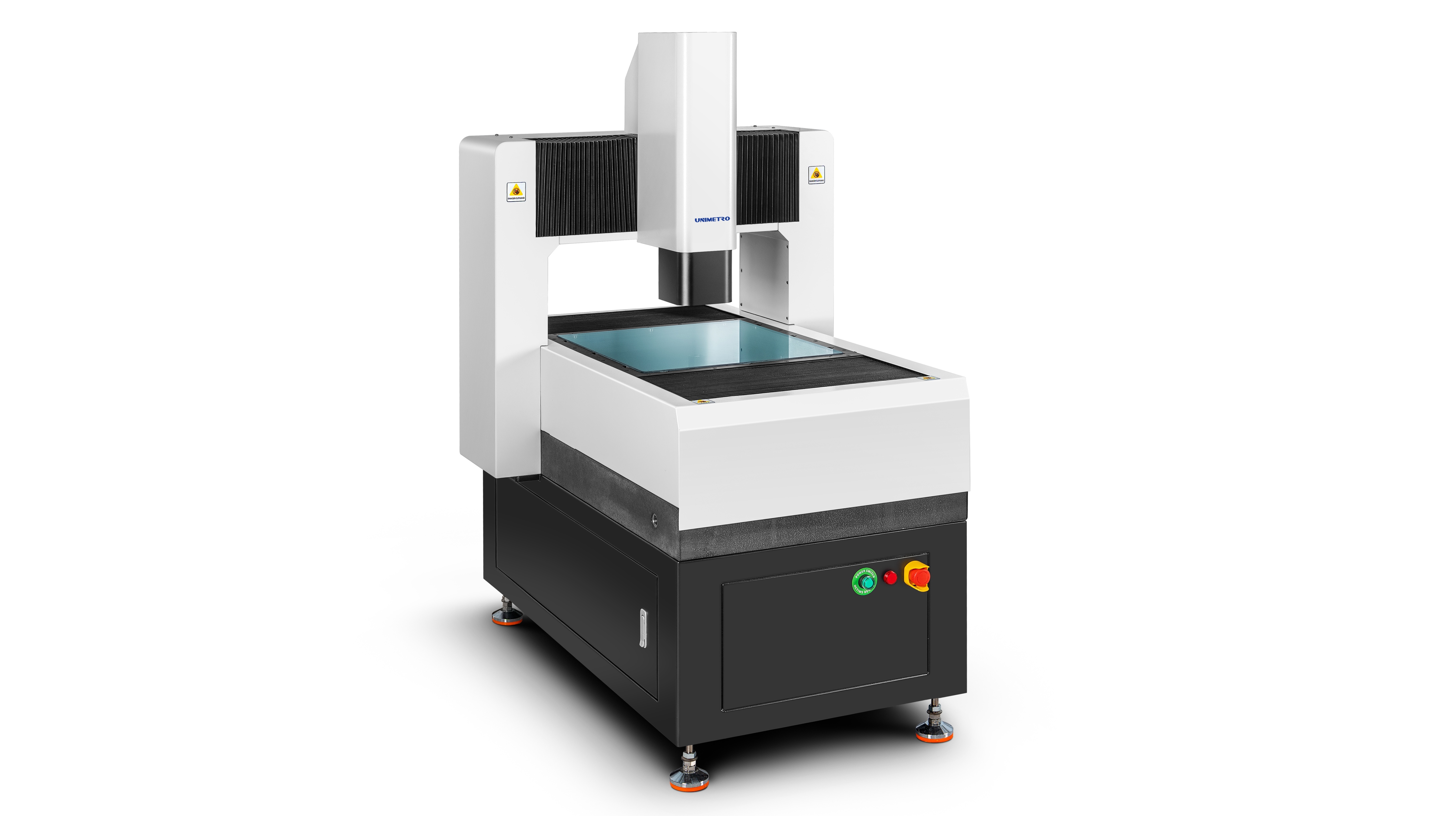

• The whole closed frame moving bridge structure is adopted, the measuring workpiece is fixed, the bearing capacity is large, and the motion performance is good.
• Introduce finite element analysis technology into mechanical design to ensure high rigidity and high precision mechanical structure.
• Grade 000 granite base, high strength, corrosion resistance and good stability.
• Aluminum oxide surface treatment worktable, fast and flexible action control, durable and beautiful.

• RENISHAW open grating ruler, resolution 0.5um, high precision and good stability.
• Precision linear guide rail, ball screw of grinder and AC servo motor ensure the stability of positioning accuracy of machine system.
• 2M pixel high-definition color Giga digital camera meets the requirements of clear observation and stable measurement.

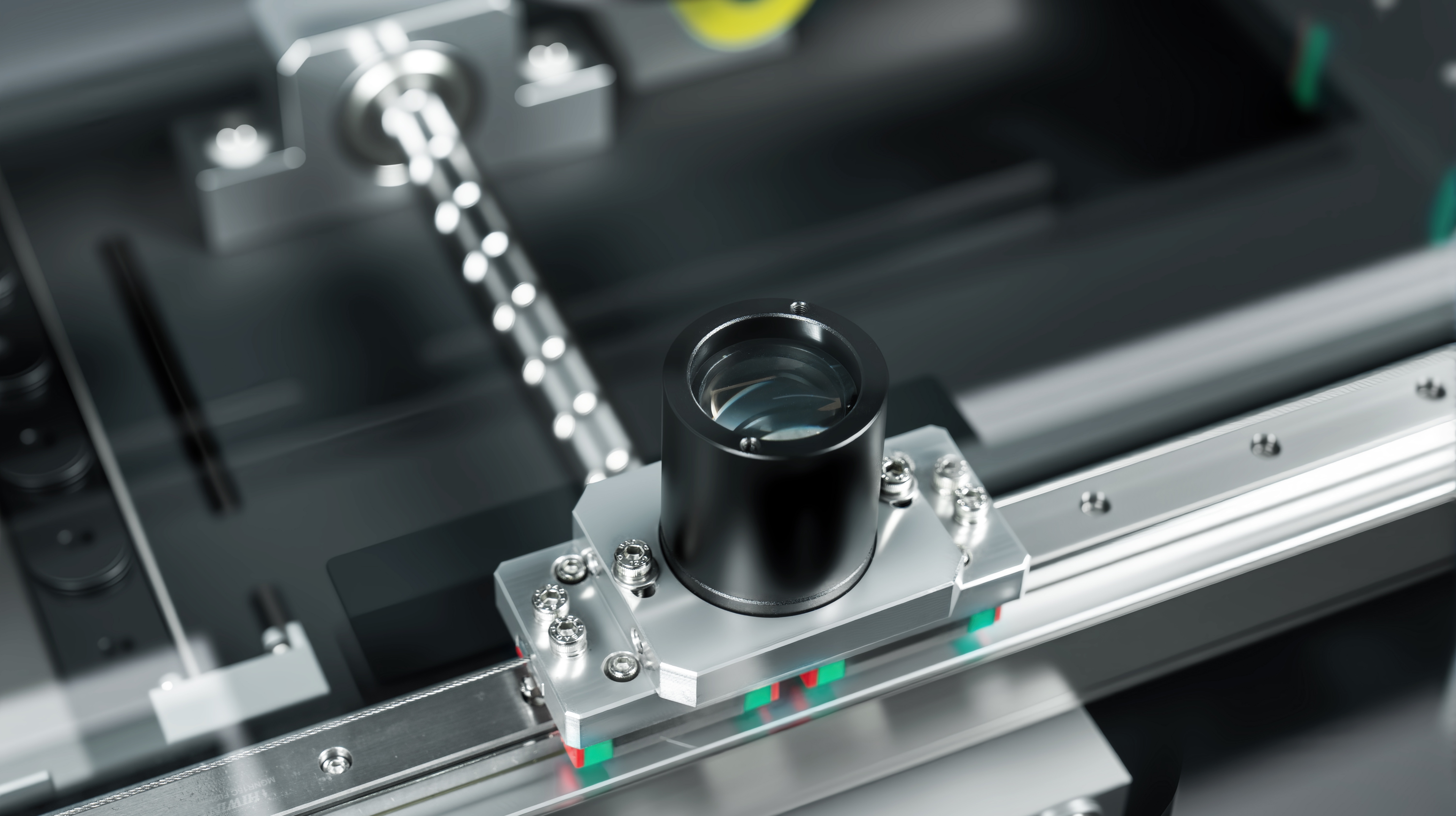

• 6.5x high-definition optical lens, accurate automatic zoom, fast pixel calibration.

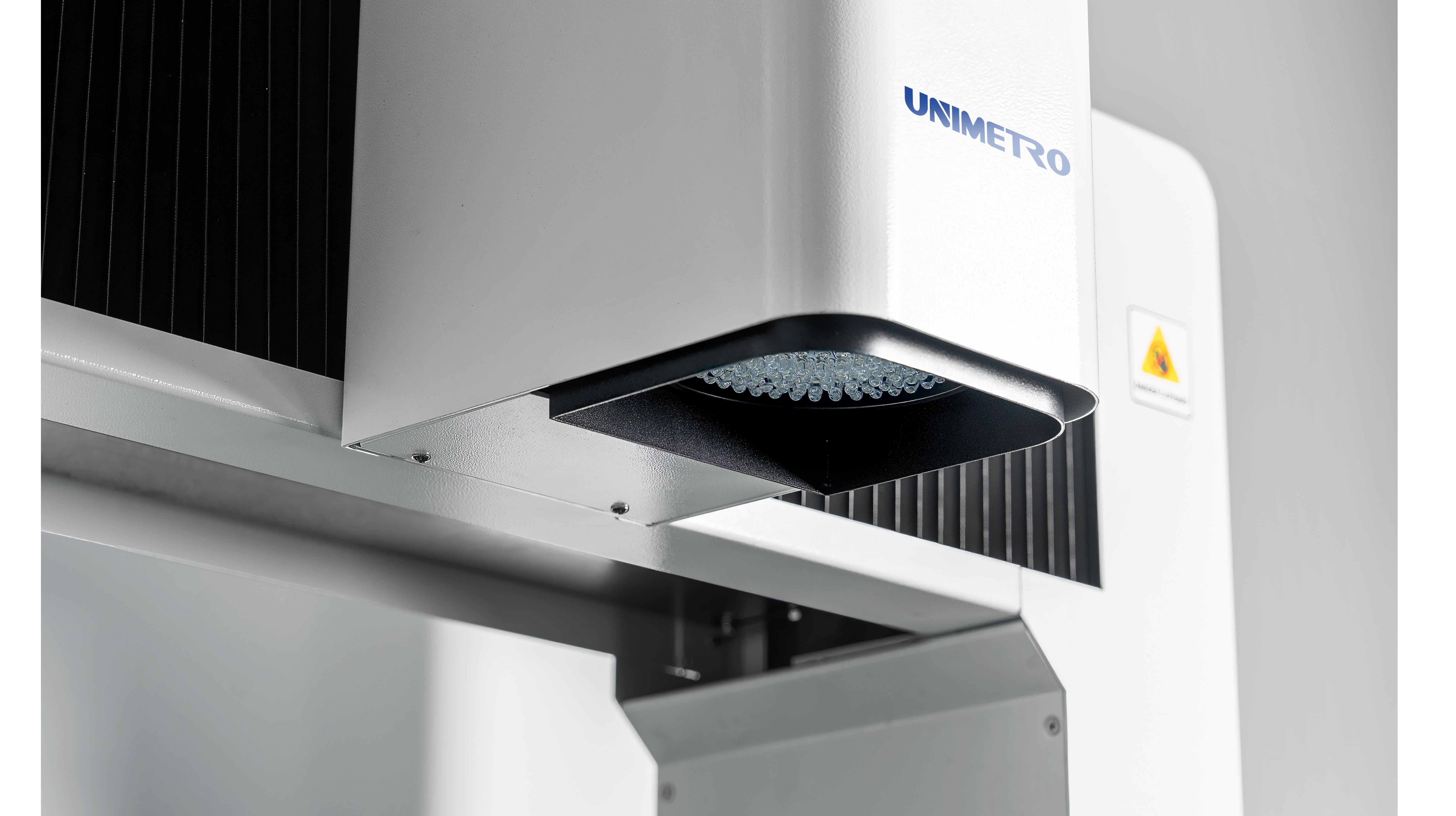

• Programmable 5-ring 8-zone LED surface light source, transmission parallel LED contour light source system, intelligent 256 level brightness adjustment.
• Full axis CNC control, AC full closed loop servo motor drive.

HE series large gantry type vision measuring instrument can be equipped with a variety of 3D sensors for comprehensive 2D / 3D composite measurement. It can also be equipped with non-contact sensors such as probe and laser. It also supports RENSHAW full series of probe bracket, so that users can complete the automatic transformation of full-scale measurement on one device, greatly improving productivity.
