Model:	HE Series	Product Name:	Fully Automatic Image Measuring Instrument (fixed Gantry Type) - HP442
Repeatability:	1.5um	Accuracy:	2.5+L/200um
Linear Scale Resolution:	0.5um (0.1um For Optional)	Measuring Mode:	Fully Automatic
Support:	OEM,ODM, Customize	Application Scenery:	Laboratory/Industrial
Warranty:	12 Months	Weight(kg):	560
Highlight:	fully automatic vision measurement machine , fixed gantry image measuring instrument , HP442 vision measurement machine

Product Description

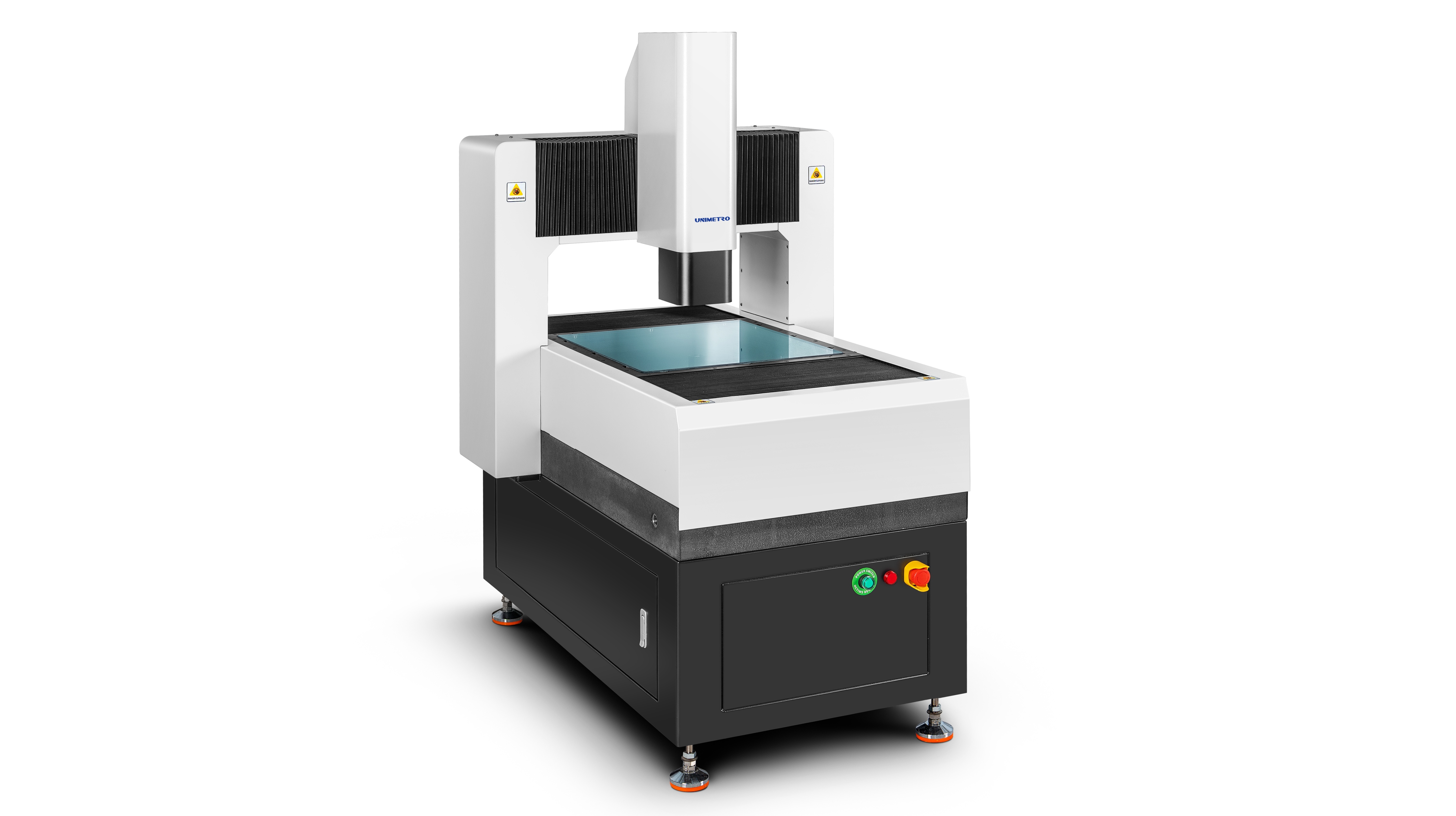

Fully automatic image measuring instrument (Fixed gantry type) - HP442

PRODUCT OVERVIEW

HP: High-Precision (High Precision)
The main features of the fixed gantry machine are high precision and full automation. "HP" in this context refers to the gantry machine as a "micron-level non-contact automatic optical precision inspection instrument". It helps to enhance the overall production accuracy and productivity for customers.

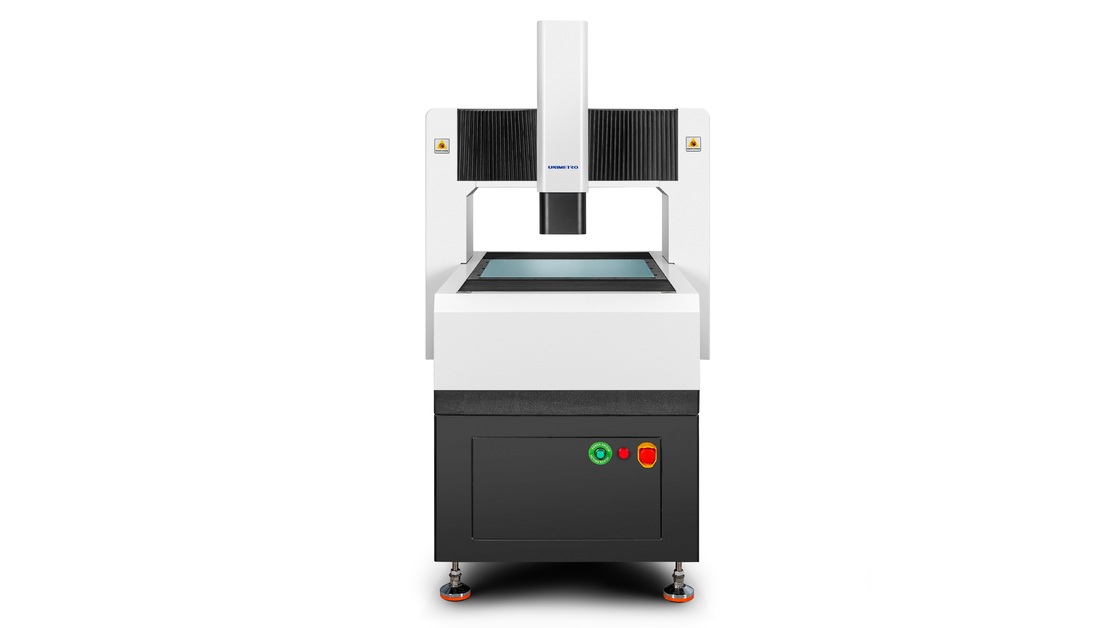

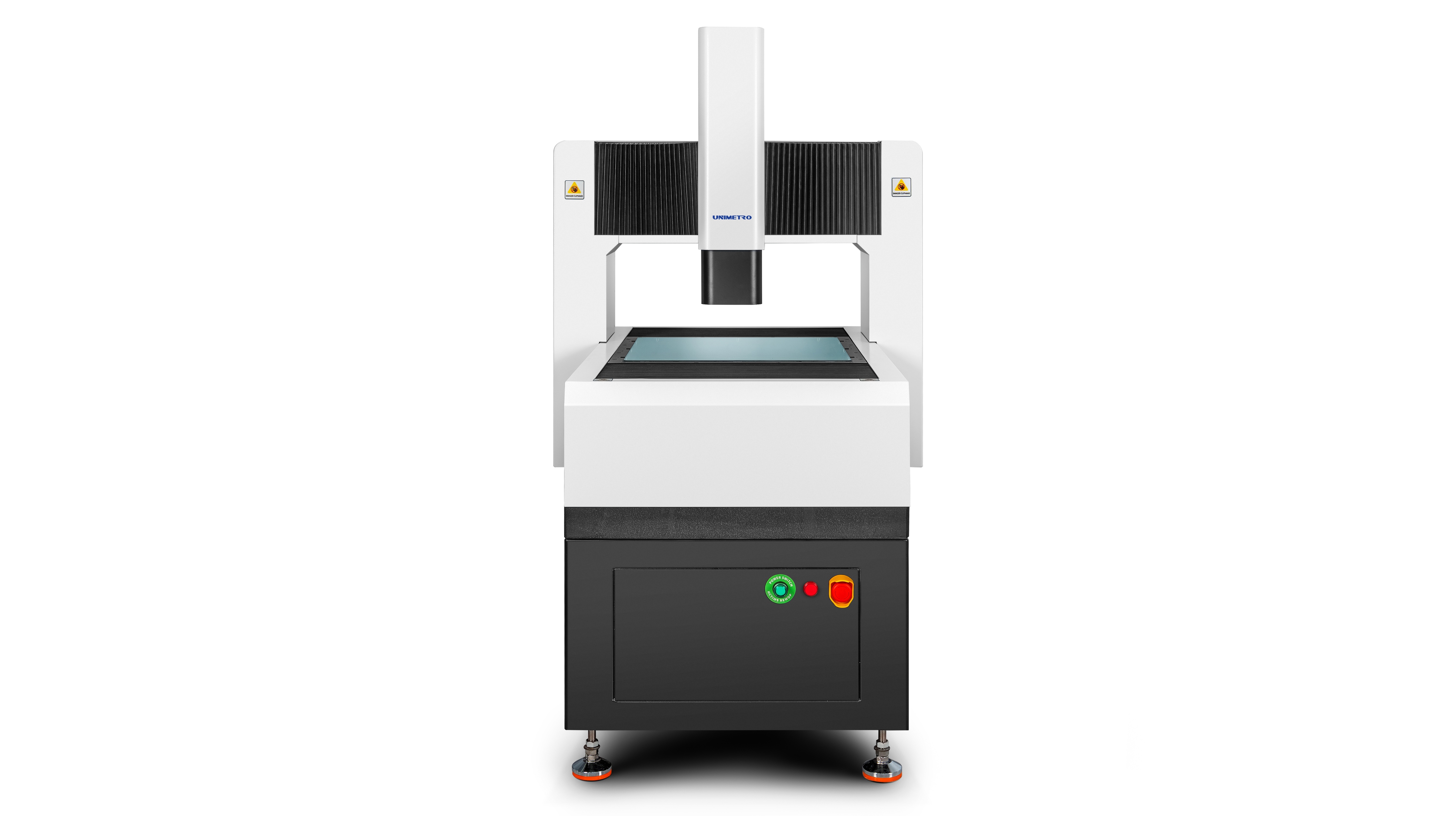

Fully automatic image measuring instrument (fixed gantry type) - HP442 0

Parameters

Model	HP 442	HP662	HP872
Dimensions (mm) (X x Y x Z)	92012001600	112014001600	132016001600
Measuring range (mm) (X x Y x Z)	400400200	600600200	800700200
Accuracy (um)	1.6 +L/200	1.6 +L/200	1.6 +L/200
Repeatability (um)	1.5	1.5	1.5
Weight(kg)	560	860	1600
Resolution	0.5μm(0.1um for option)	Industrial-grade color CCD camera
	Lens	1x-10x (Variable magnification)
	Magnification	20X - 200X (The magnification varies depending on the model of the selected camera; the actual magnification is subject to the measured data.)
	Video Magnification	18~195X (According to the different models of the selected camera, its magnification will change; the actual magnification is subject to the measured data)
	Work Distance	85mm
Illumination	Programmable surface light, LED bottom parallel light (optional: coaxial light)
Drive system	CNC control, linear motor drive; Handle control, mouse/keyboard control
Linear scale resolution (um)	0.1um

Application

Plastic parts

Metal parts

Stamping mold

Rubber part

Electronic part

PCBA part

Gear part

...

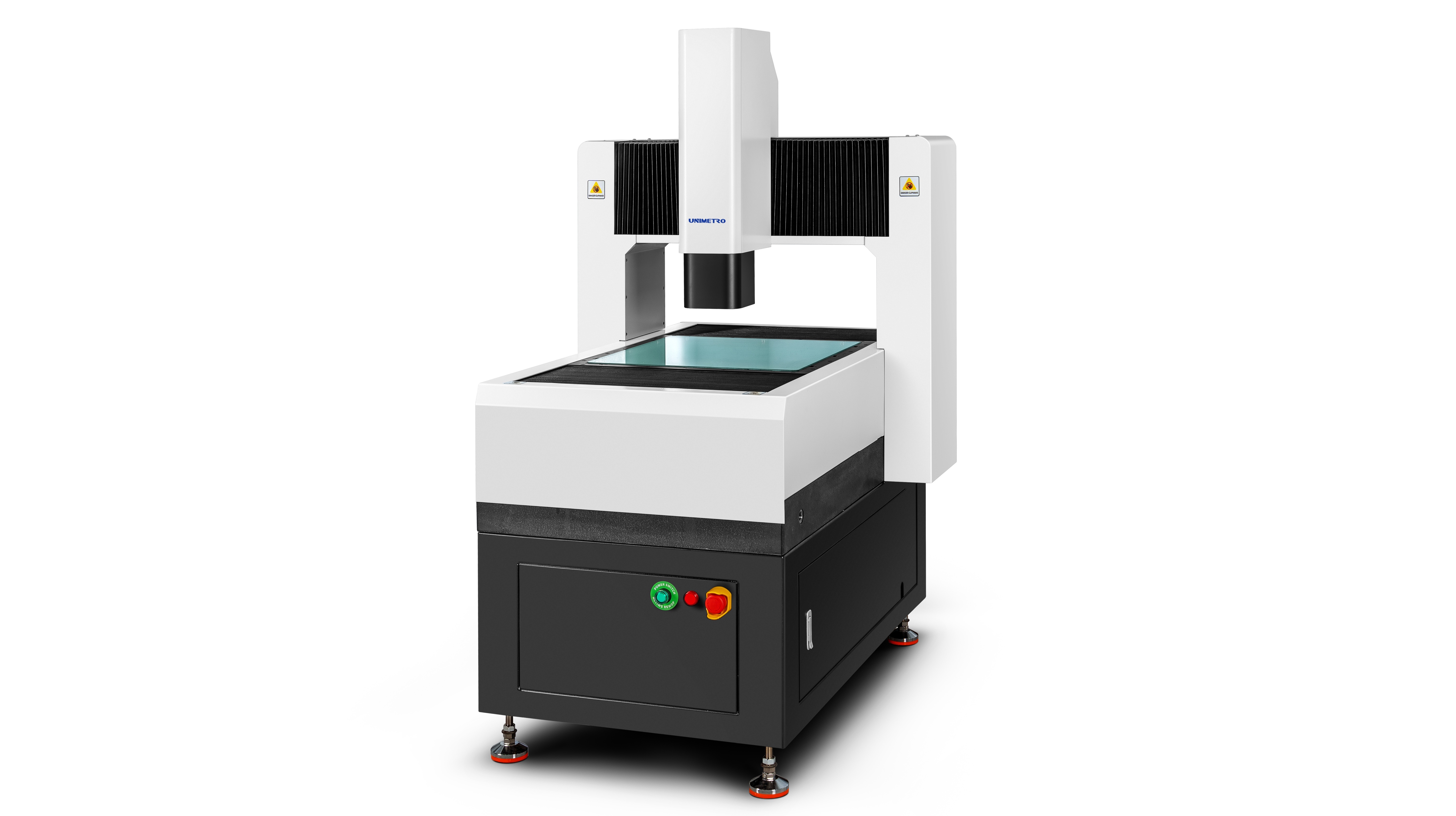

Fully automatic image measuring instrument (fixed gantry type) - HP442 1

Features

◆ High rigid structure design:

1) The whole closed frame moving bridge structure is adopted, the measuring workpiece is fixed, the bearing capacity is large, and the motion performance is good.
2) Introduce finite element analysis technology into mechanical design to ensure high rigidity and high precision mechanical structure.
3) Grade 000 granite base, high strength, corrosion resistance and good stability.
4) Aluminum oxide surface treatment worktable, fast and flexible action control, durable and beautiful.

◆ High precision configuration:

1) RENISHAW open grating ruler, resolution 0.5um, high precision and good stability.

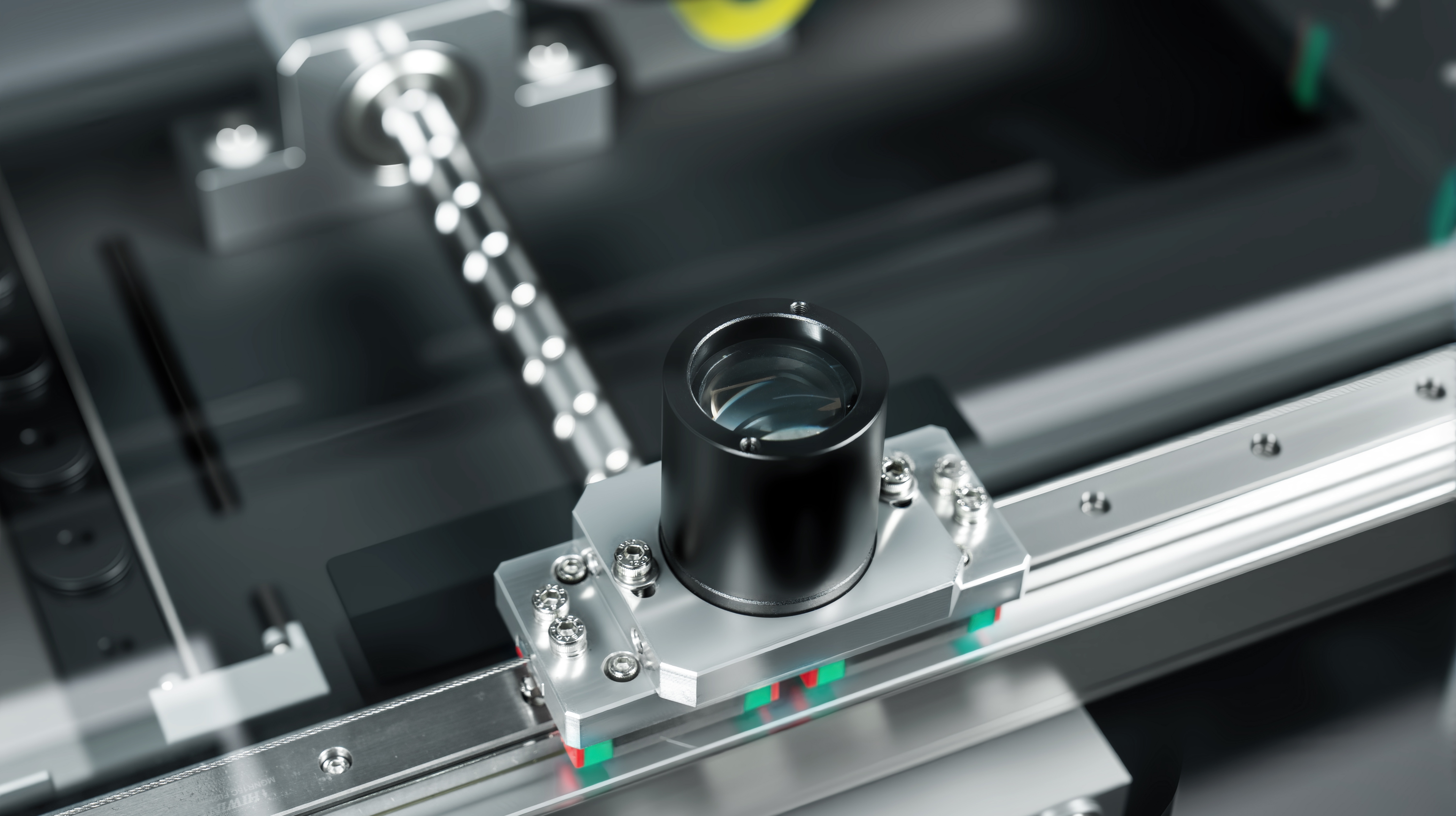

2) Precision linear guide rail, ball screw of grinder and AC servo motor ensure the stability of positioning accuracy of machine system.
3) 2M pixel high-definition color Giga digital camera meets the requirements of clear observation and stable measurement.
4) 6.5x high-definition optical lens, accurate automatic zoom, fast pixel calibration.

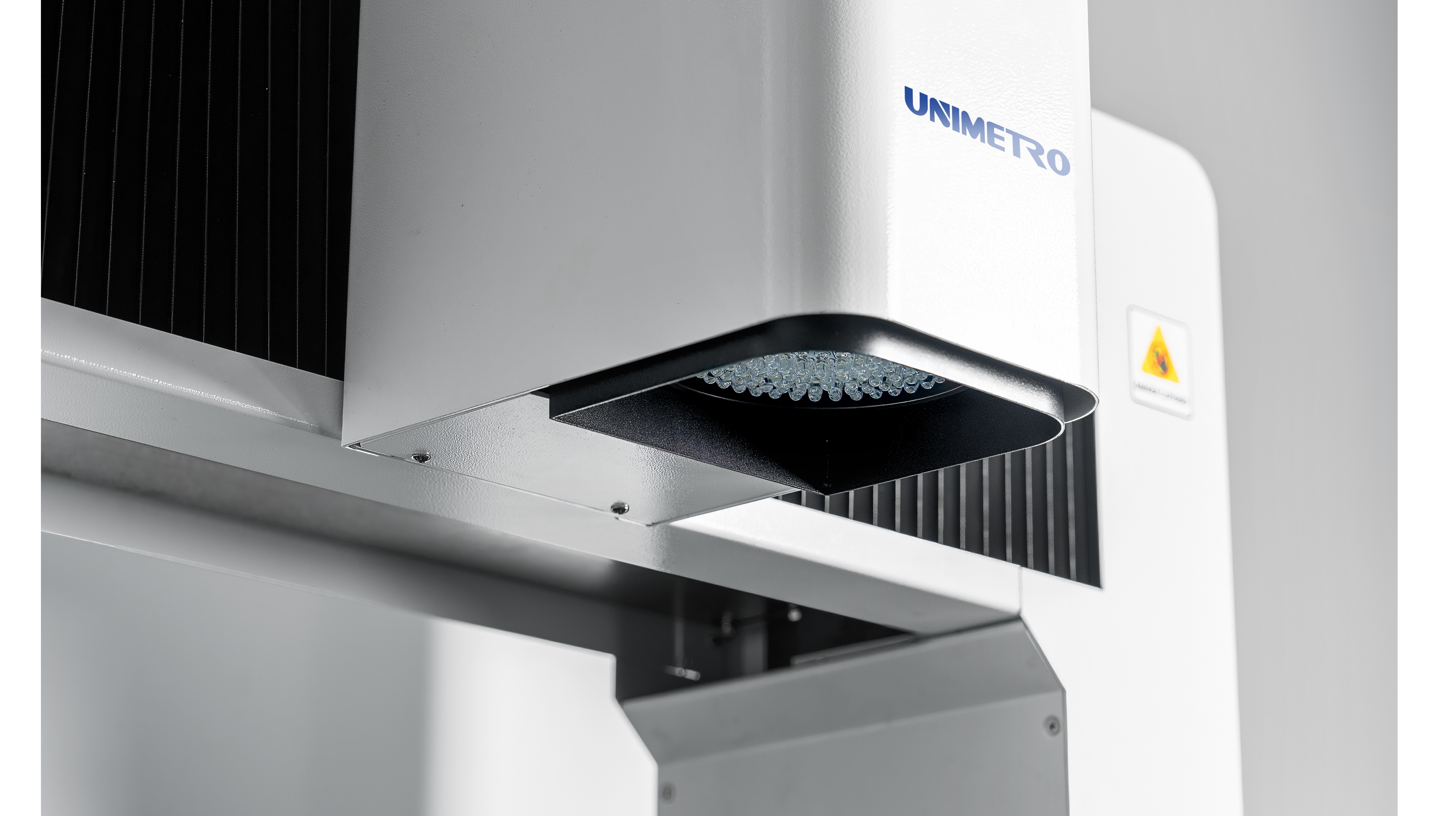

5) Programmable 5-ring 8-zone LED surface light source, transmission parallel LED contour light source system, intelligent 256 level brightness adjustment.

6) Full axis CNC control, AC full closed loop servo motor drive.

◆Optional multi-sensor for 3D measurement:

HE series large gantry type vision measuring instrument can be equipped with a variety of 3D sensors for comprehensive 2D / 3D composite measurement. It can also be equipped with non-contact sensors such as probe and laser. It also supports RENSHAW full series of probe bracket, so that users can complete the automatic transformation of full-scale measurement on one device, greatly improving productivity.
