| Z Axis Travel: | 150mm | Objective Lens: | Manual Detented Zoom Lens / Autozoom Lens 0.7-4.5X / Navitar Lens For Option |
|---|---|---|---|
| Magnification: | 33-195X | Vision Field: | 8.1-1.3 |
| Measuring Resolution: | 1um / 0.5um / 0.25um / 0.1um For Optional | Measuring Software: | Rational Vue 3D Composite Measuring Software |
| Illumination: | Programmable 8 Sections Ring LED For Surface Light, 40 Sections Ring LED For Option, LED Parallel Contour Light, Co-axial Light For Option. | ||
| Highlight: | Gantry Automatic Vision Measurement System,Gantry Vision Measurement System 150mm,150mm Vision Measurement System |
||
Product Decription

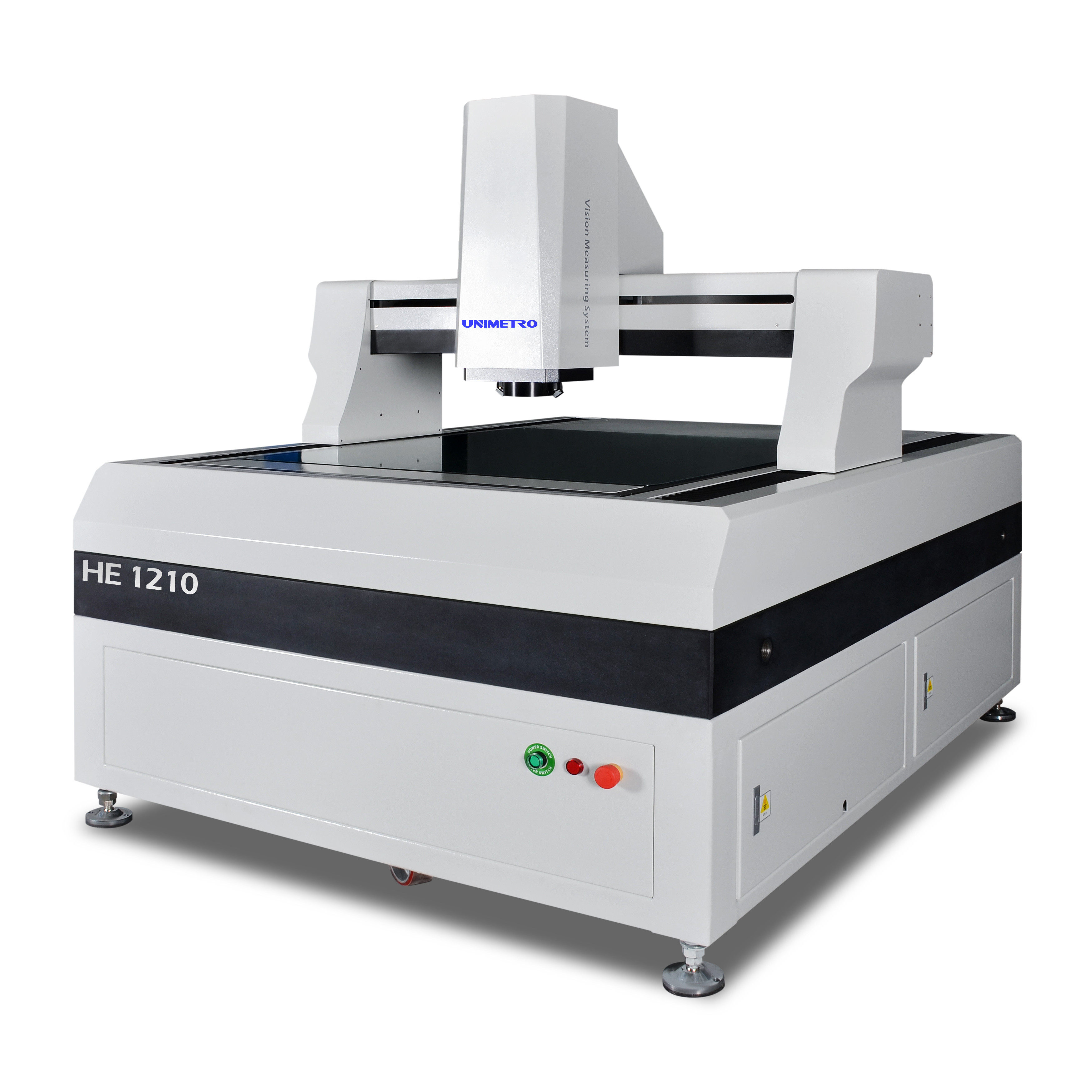

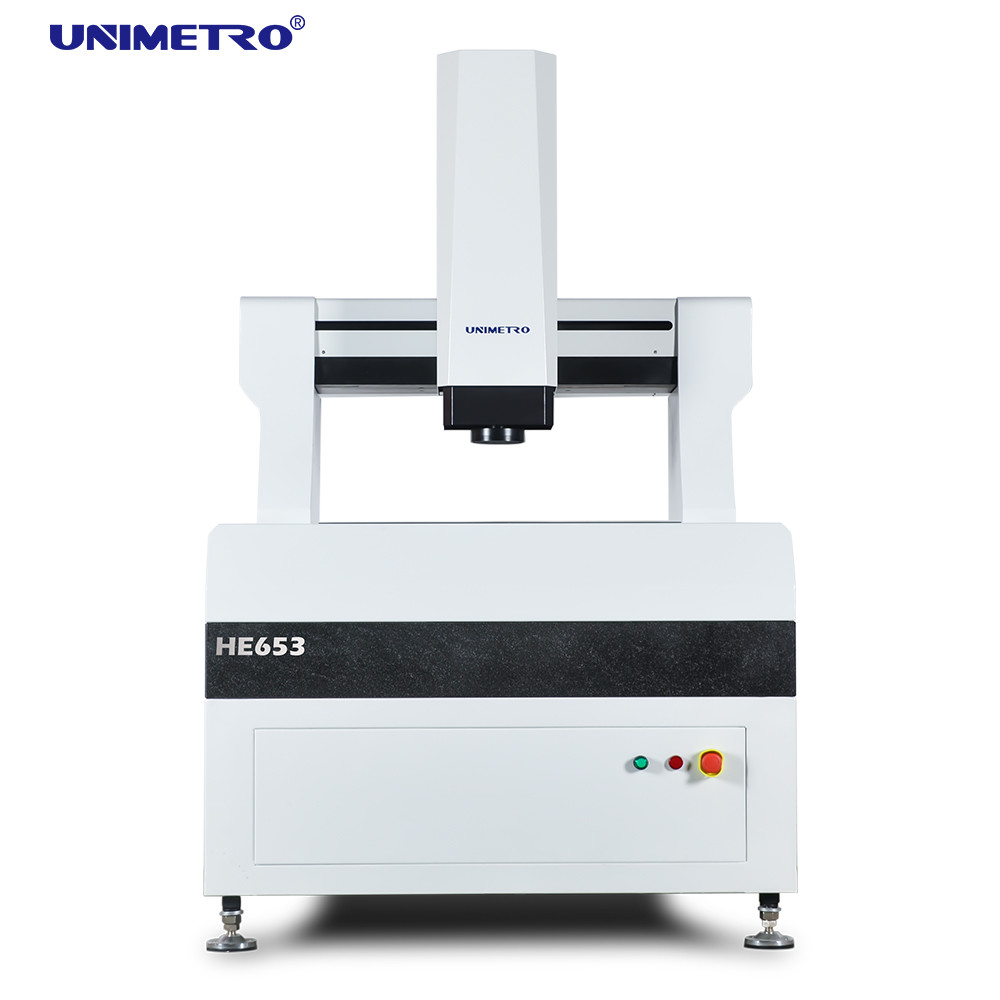

The HE series high accuracy gantry type vision measurement machine combines high accuracy and high efficiency, offers high speed measuring for the geometric elements of different kinds of parts. The HE series is widely used in varies industries and products as PCB, copper clad laminate, large glasses, LCD modules, and insulation materials etc.
Finite elements analysis is introduced in the designing process of the HE series, ensures high rigidity and accurate mechanical structure. The machine base is using closed frame movable bridge type structure, which is simple and offers high loading capability and the best motion performance.
000 grade granite machine base, offers high rigidity, corrosion resistance and high stability.
The work stage is able to preset multiple products fixturing solution, also multiple lens combination is for option, satisfy different measuring requirement from different customers.
Full close loop motion control system ensures the best movement and positioning performance.
With the finite element analysis and the 000 grade granite, we get the most reasonable and optimized machine frame design, which ensures high rigidity and reliability.
The HE series high efficiency large size vision measurement machine is using UWC motion controller and high torque motors, offers high performance motion control, the high acceleration and fast locating offers high efficiency in the measuring process.
UWC large size vision measurement machine solution package, Panasonic motors for option

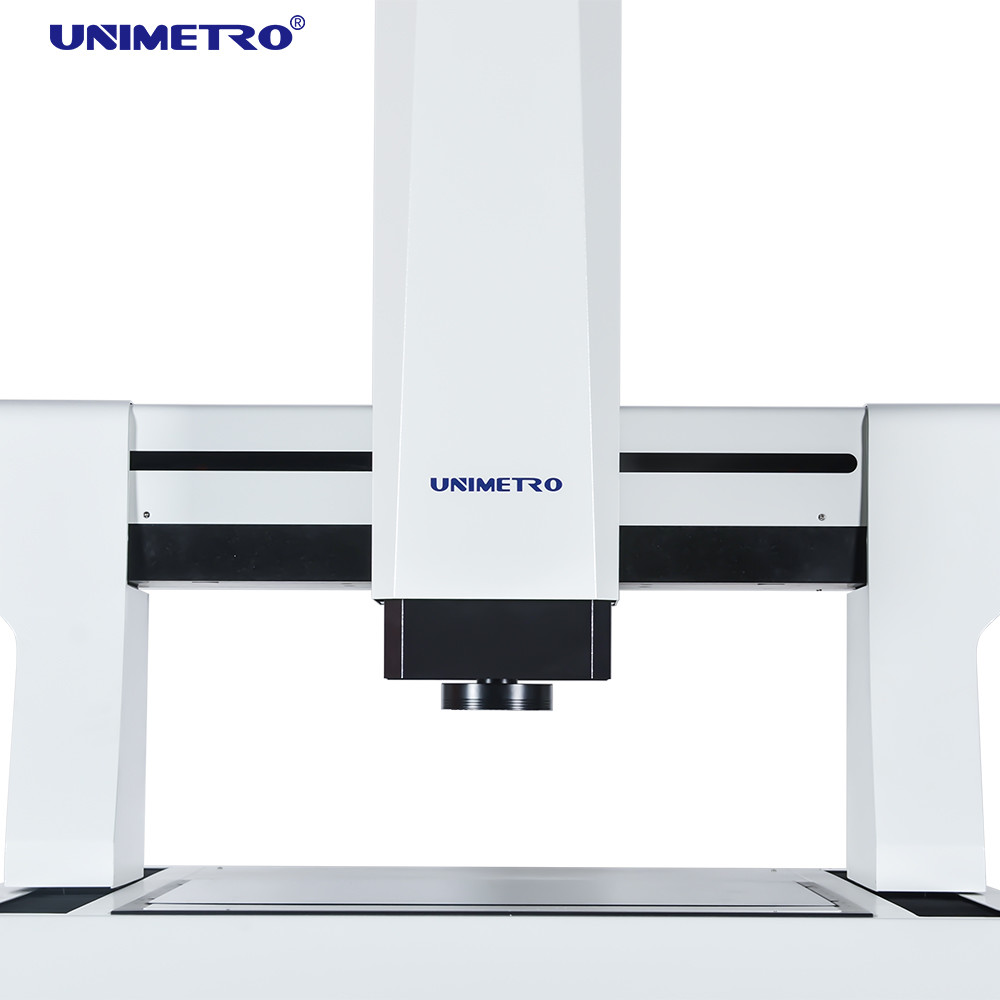

The machine frame is with moving gantry structure which ensures a simpler, smarter structure with higher loading and better movement Performance.
Detailed Images
X/Y axis use accurate liner guide way, Z axis uses high performance cross rail with the original German friction driven group.
Renishaw linear scales included, with high accuracy, stability and long life cycle.
According to users’ requirements the working stage is able to preset with multiple type of products fixtures, also multiple lens and cameras combination option are available, gives more flexibility to users.
With the powerful Rational-Vue software users can achieve complicated measuring programs easily. In the mass production the HE series vision measurement machine can be a powerful measuring instrument.
Parameters
| Model |
HE 652 |
HE862 |
HE1080 |
HE1210 |
HE1512 |
HE1812 |
| X,Y Travel(mm) |
500*600 |
600*800 |
800*1000 |
1000*1200 |
1200*1500 |
1200*1800 |
|
Z-axis Travel(mm) |
200(can be raised according to the requirements of customers) |
|||||
|
Load Capacity |
approx. 35 kg |
|||||
| Dimension (mm) |
1700*1180*1750 |
1700*1280*1750 |
1900*1480*1750 |
2100*1680*1750 |
2500*1880*1750 |
2700*1880*1750 |
| Weight(kg) |
1500 |
1800 |
2900 |
3200 |
4400 |
4800 |
|
Resolution |
0.5μm(0.1um for option) |
|||||
|
Camera |
2M HD GIGA digital camera |
|||||
|
Zoom Lens |
professional auto zoom lens Zoom lens magnification: 1~10X |
|||||
|
Video Magnification |
18~195X (According to the different models of the selected camera, its magnification will change; the actual magnification is subject to the measured data) |
|||||
|
FOV |
8.1~1.3mm (According to the different matching schemes of camera and lens, the field of view will change accordingly, and the actual field of view is subject to the measured data) |
|||||
|
Accuracy* |
≤ (3+L/200)μm |
|||||
|
Illumination |
Programmable 5-ring 8 sections LED surface illumination (40 sections ring light,Co-axial light,movable multi color ring light for option) |
|||||
Optional solutions
|
Illumination:
|
Lens:
|
Touch probe:
|
Laser sensor
|
|
4/8/40 sections LEDsurface ring light
48 sections 4 colors LED ring light Movable 4 colors LED ring light |
Manual dented zoom lens
Auto zoom lens Manual dented zoom lens with co-axial light Auto zoom lens with co-axial light |
Renishaw MCP kits
Measuring error<=0.75µm Renishaw PH6+TP20 Measuring error<=0.35µm |
KEYENCE not-contact laser sensor
White light measuring sensor |
Company Information
Our Client&Agent
| FAQ |
|---|
| Q1: Are you a factory or trading company ? |
| A1: We are a factory and giving you the quickest reply in 24 hours. |
| Q2: What's your company mainly in? |
| A2: We are mainly produce Vision measuring machine,Coordinate measuring machine ,CMM&VMM fixturesetc. |
| Q3: How to Choose the Appropriate Specification? |
| A3: As long as you tell us variety and size of product to be measured, our professional team would advise you of measuring instrument of suitable specifications. |
| Q4: Do you accept customized service? |
| A4: Be sure! We can provide not only typical machines, but also the machines customized to customer's needs. |
| Q5: What is your warranty period? |
| A5: Our product warranty period is 1 year. Our product quality is very stable, and we have improved a lot on some breakable parts. You can rest assured of our product quality. |
