Heavy-Duty Holding Fixture – CNC Fixture Clamps for CMM Machine Checking Accuracy

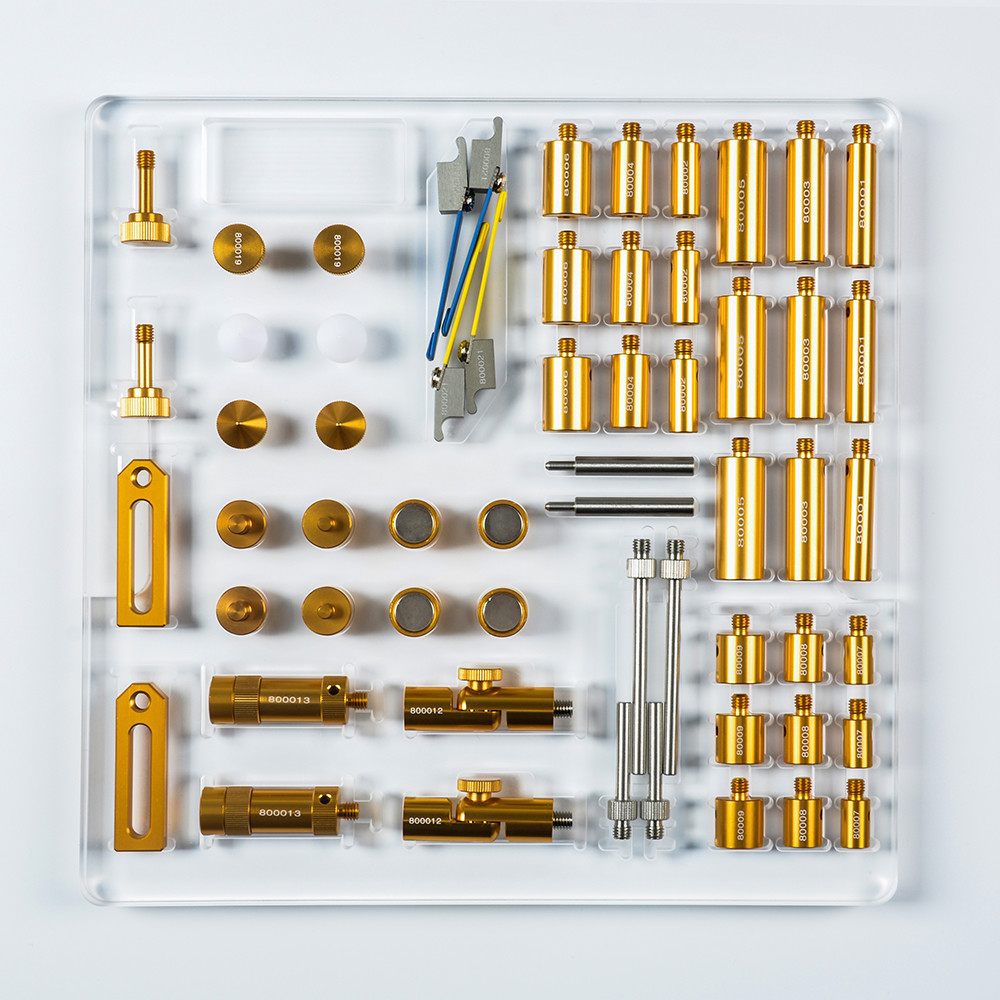

The Flexfix series fixturing components are engineered to securely hold components with minimal necessary force and without requiring special tools. The comprehensive kit includes various components for supporting, clamping, and pressing applications. The intelligent design prevents damage or distortion to measured parts while enabling flexible fixturing combinations for diverse part geometries. These components facilitate clear probe paths for efficient 3D coordinate measurement.

Multiple base plate sizes are available for the Flexfix series CMM fixtures, providing versatile application options for different CMM sizes and accommodating various component fixturing requirements. The manufacturing process involves CNC machining, precision grinding, anodized coating, and laser marking to ensure high accuracy, exceptional flatness, and reliable performance. Customized sizes and thread hole patterns are available beyond standard offerings.
