Name: Versatile 3D Optical CMM Fixturing Kits: Baseboards, Tension Springs, and Supporting Rods
Brand: Unimetro Precision Machinery Co., Ltd
SKU: Flexfix
Price: 20,500.00 USD
Availability: InStock

Detail Information

Features:	Flexible, Original	Product Name:	CMM Fixture Kits
Material:	Aluminum	Accessories:	108pcs Component
Application:	CMM Machine	Service:	OEM, ODM
Highlight:	Coordinate Measurement Cmm Fixturing Kit , Aluminum Cmm Fixturing Kit , 108pcs Cmm Fixturing Kit

Product Description

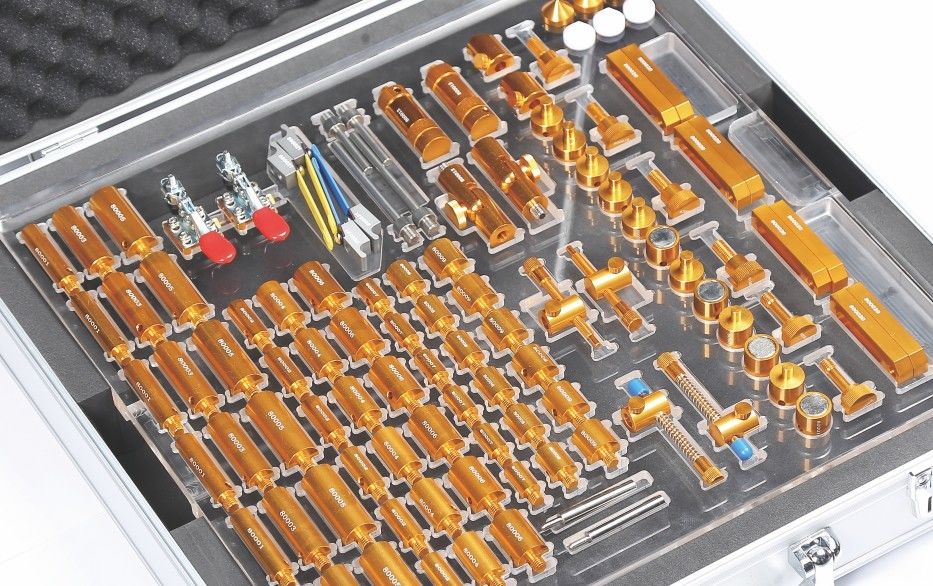

Versatile 3D Optical CMM Fixturing Kits

Complete aluminum CMM fixture kits with 108 pieces for coordinate measuring machines, designed to hold components firmly with minimal necessary force.

Product Overview

The Flexfix series fixturing components are engineered to securely hold components with minimal necessary force and without special tools. These versatile components include supporting, clamping, and pressing elements designed to prevent damage or distortion on measured parts. The flexible design enables users to create various fixturing combinations for different parts while ensuring clear probe paths for 3D measurement.

Kit Components & Specifications

Product Name	Mark	Quantity
12*50mm standoff	80001	6
12*30mm standoff	80002	6
16*50mm standoff	80003	6
16*30mm standoff	80004	6
20*50mm standoff	80005	6
20*30mm standoff	80006	6
12*20mm standoff	80007	6
16*20mm standoff	80008	6
20*20mm standoff	80009	6
Pusher damp	800010	2
Screw pusher damp	800011	2
Adjustable pivot joint	800012	2
Adjustable jack stand	800013	2
Magnet	800014	4
Pin Standoff	800015	2
Adaptor	800016	6
Baseboard screw	800017	2
V post	800018	2
Screws	800019	2
Adjustable slide	800020	8
Tension clamp	800021	4
Hold down clamp	800022	2
Short tension damp support	800023	2
Long tension clamp support	800024	2
Cone	800025	3
Nylon cone	800026	3
Screwdriver	800027	1

CMM Base Plates

400*300mm, MS Threaded holes
400*400mm, MS Threaded holes
500*500mm, MS Threaded holes
600*600mm, MS Threaded holes
Other customized sizes available

Multiple base plate sizes are available for the Flexfix series CMM fixtures, providing wide application range for different CMM sizes and satisfying various component fixturing requirements. The manufacturing process includes CNC machining, precision grinding, anodize coating, and laser marking to ensure high accuracy, flatness, and reliability. Customized sizes and thread holes are also available.

Company Information

Our Clients & Agents

Frequently Asked Questions

Q1: Are you a factory or trading company?

A1: We are a factory and provide responses within 24 hours.

Q2: What does your company mainly produce?

A2: We specialize in vision measuring machines, coordinate measuring machines, and CMM & VMM fixtures.

Q3: How to choose the appropriate specification?

A3: Our professional team will advise you on suitable specifications based on the variety and size of products to be measured.

Q4: Do you accept customized service?

A4: Yes, we provide both standard machines and customized solutions tailored to customer needs.

Q5: What is your warranty period?

A5: Our product warranty period is 1 year. We have improved breakable parts and maintain stable product quality.

Tag:

Place of Origin:	China
Brand Name:	UNIMETRO
Certification:	ISO
Model Number:	Flexfix

Minimum Order Quantity:	1set
Price:	Negotiable
Packaging Details:	carton
Delivery Time:	3-5days
Payment Terms:	T/T,D/A,D/P,Western Union,MoneyGram,L/C
Supply Ability:	100 set/month
