Aluminum CMM Fixtures Kits 108pcs For Coordinate Measurement Machine

Basic Information
Place of Origin: China
Brand Name: UNIMETRO
Certification: ISO
Model Number: Flexfix
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: carton
Delivery Time: 3-5days
Payment Terms: T/T, D/A, D/P, Western Union, MoneyGram, L/C
Supply Ability: 100 set/month
Detail Information
Features: Flexible, Original Product Name: CMM Fixture Kits
Material: Aluminum Accessories: 108pcs Component
Application: CMM Machine Service: OEM, ODM
High Light:

Coordinate Measurement Cmm Fixturing Kit

,

Aluminum Cmm Fixturing Kit

,

108pcs Cmm Fixturing Kit


Product Description

Alumilum CMM Fixture Kits 108pcs for Coordinate Measuring Machine

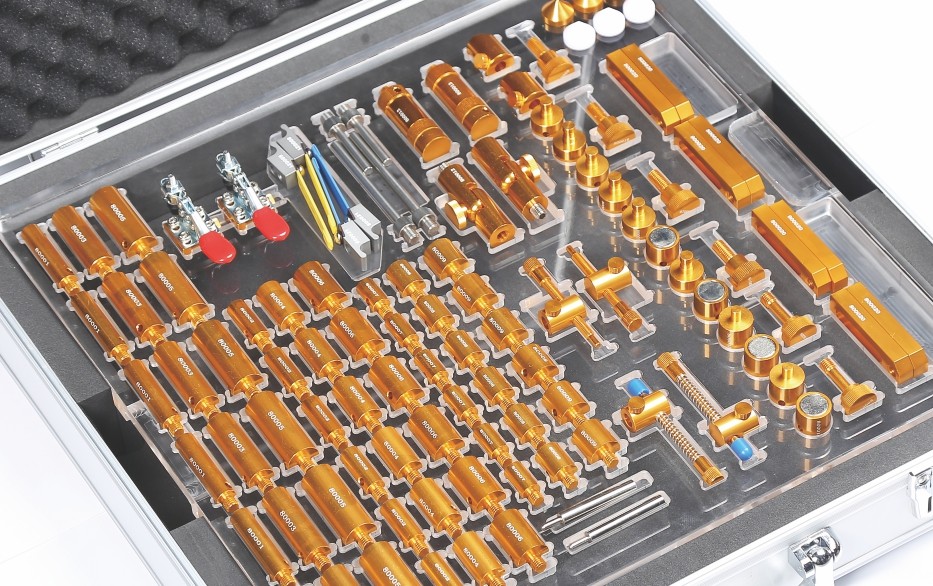

Aluminum CMM Fixtures Kits 108pcs For Coordinate Measurement Machine 0

Overview



The Flexfix series Fixturing components are designed to hold components firmly with the minimum necessary force and without any special tools, all components are with different function including supporting, clamping or pressing. The reasonable design allows to avoid damage or distortion on the measuring part. With these flexible components users are able to create different type of fixturing combination for varies of parts. Also代is easy to set up a clear probe path of 3D measuring



Aluminum CMM Fixtures Kits 108pcs For Coordinate Measurement Machine 1





Parameters



Product Name

Mark

QTY

12*50mm standoff

80001

6

12*30mm standoff

80002

6

16*50mm standoff

80003

6

16*30mm standoff

80004

6

20*50mm standoff

80005

6


20*30mm standoff

80006

6


12*20mm standoff

80007

6


16*20mm standoff

80008

6


20*20mm standoff

80009

6


Pusher damp

800010

2


Screw pusher damp

800011

2


Adjustable pivot joint

800012

2


Adjustable jack stand

800013

2


Magnet

800014

4


Pin Standoff

800015

2


Adaptor

800016

6


Baseboard screw

800017

2


V post

800018

2


Screws

800019

2


Adjustable slide

800020

8


Tension clamp

800021

4


Hold down clamp

800022

2


Short tension damp support

800023

2


Long tension clamp support

800024

2


Cone

800025

3


Nylon cone

800026

3


Screwdriver

800027









CMM base plates



400*300mm, MS Threaded holes

400*400mm, MS Threaded holes

500*500mm, MS Threaded holes

600*600mm, MS Threaded holes Other customized sizes

Aluminum CMM Fixtures Kits 108pcs For Coordinate Measurement Machine 2



Multiple sizes of base plates are available for option for the Flexfix series CMM fixtures. Which allows wide range of application for different size of CMM and also satisfying different size of components fixtu ring requirement
A complex manufacturing process is required for the CMM fixtures base plates which includes CNC machining, precision grinding, anodise coating, and laser marking, to make the plates with high accuracy, flatness and reliability. And except the standard sizes we also offer customized sizes and threads holes.
