Detail Information

Material:	Aluminum And Spring Steel	Color:	Golden
Surface Processing:	Color Anodizing	12*50mm Standoff:	80001
12*30mm Standoff:	80002	16*50mm Standoff:	80003
Highlight:	Aluminum CMM Fixture Components , Spring Steel CMM Fixture Components , Color Anodizing CMM Fixture Kits

Product Description

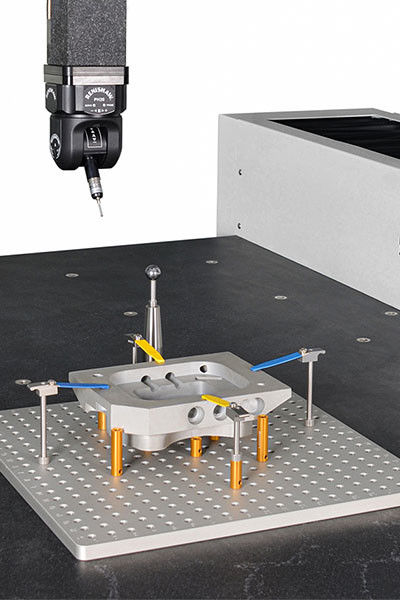

Modular CMM Fixture Kits with Aluminum Baseboard & Tension Spring Supporting Rods

Separate CMM Fixture Kit Components

Expand your application capabilities with individual components for our CMM fixture kits. The tension spring supporting rods are among our most popular components. Please reference our coding system and contact our service department for model consultation.

Component Specifications

Product Name	Mark	QTY
12*50mm standoff	80001	6
12*30mm standoff	80002	6
16*50mm standoff	80003	6
16*30mm standoff	80004	6
20*50mm standoff	80005	6
20*30mm standoff	80006	6
12*20mm standoff	80007	6
16*20mm standoff	80008	6
20*20mm standoff	80009	6
Pusher damp	800010	2
Screw pusher damp	800011	2
Adjustable pivot joint	800012	2
Adjustable jack stand	800013	2
Magnet	800014	4
Pin Standoff	800015	2
Adaptor	800016	6
Baseboard screw	800017	2
V post	800018	2
Screws	800019	2
Adjustable slide	800020	8
Tension clamp	800021	4
Hold down clamp	800022	2
Short tension damp support	800023	2
Long tension clamp support	800024	2
Cone	800025	3
Nylon cone	800026	3
Screwdriver	800027

Company Information

Our Clients & Agents

Frequently Asked Questions

Q1: Are you a factory or trading company?

A1: We are a factory and provide responses within 24 hours.

Q2: What does your company primarily manufacture?

A2: We specialize in Vision Measuring Machines, Coordinate Measuring Machines, and CMM & VMM fixtures.

Q3: How to Choose the Appropriate Specification?

A3: Our professional team will recommend suitable measuring instrument specifications based on your product variety and size requirements.

Q4: Do you accept customized service?

A4: Yes, we provide both standard machines and customized solutions tailored to customer needs.

Q5: What is your warranty period?

A5: Our products come with a 1-year warranty. We have enhanced durability in breakable components, ensuring reliable product quality.

Tag:

Place of Origin:	China
Brand Name:	UNIMETRO
Model Number:	FlexFix

Minimum Order Quantity:	1
Price:	Discussible
Packaging Details:	Paper box
Delivery Time:	5 work days
Payment Terms:	T/T
Supply Ability:	100 per month
