Name: Aluminum CMM Holding Fixtures with 400mm Baseboard for Coordinate Measuring Machines
Brand: Unimetro Precision Machinery Co., Ltd
SKU: 100400
Price: 20,500.00 USD
Availability: InStock

Aluminum CMM Holding Fixtures with 400mm Baseboard for Coordinate Measuring Machines

Basic Information

Place of Origin:	China
Brand Name:	UNIMETRO
Model Number:	100400

Minimum Order Quantity:	1
Price:	Discussible
Packaging Details:	Paper box
Delivery Time:	5 work days
Payment Terms:	T/T
Supply Ability:	30 per month

Get Best Price Contact Now

Detail Information

Flatness:	0.02 Mm	Material:	Aluminum
Surface Processing:	Hard Anodizing	Color:	Black
Pitch:	13 Mm	Dimension:	400*400mm
Highlight:	Hard Anodizing CMM Holding Fixture , Baseboard CMM Holding Fixture , 400MM CMM Fixture Kits

Product Description

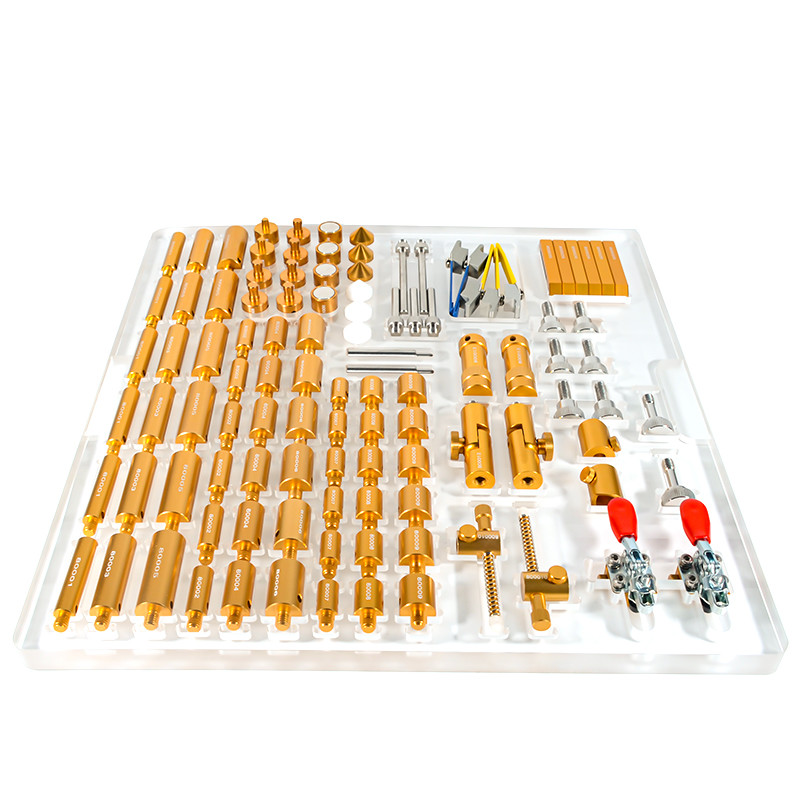

Aluminum CMM Holding Fixtures with 400mm Baseboard

Coordinate Measuring Machine Fixture Kits

Our FlexFix series coordinate measuring machine fixtures feature a 400*400mm M8 base board designed to accommodate various workpiece sizes, from tiny components to large, heavy workpieces.

The FlexFix series delivers exceptional precision with flatness tolerance up to 0.04mm, meeting strict quality requirements for accurate coordinate measurement applications.

Manufactured from solid aluminum material, our base boards undergo aging processes and precision grinding. The surface features hard anodizing treatment to ensure superior rigidity and long-term dimensional accuracy.

Product Specifications

Model 100400:
Dimensions: 400*400mm
Pitch: 13mm
Thickness: 12mm
Base Type: M8

Custom base board dimensions available for OEM applications. Contact our service team to discuss your specific requirements.

Manufacturing Excellence

Global Partnerships

Frequently Asked Questions

Are you a factory or trading company?

We are a factory and provide responses within 24 hours.

What does your company specialize in?

We manufacture vision measuring machines, coordinate measuring machines, and CMM/VMM fixtures.

How to choose the appropriate specification?

Our professional team will recommend suitable measuring instruments based on your product variety and size requirements.

Do you accept customized service?

Yes, we provide both standard machines and custom solutions tailored to customer needs.

What is your warranty period?

Our products come with a 1-year warranty. We've enhanced durability on breakable components to ensure reliable performance.
