Aluminum CMM Fixture Kits (108pcs)

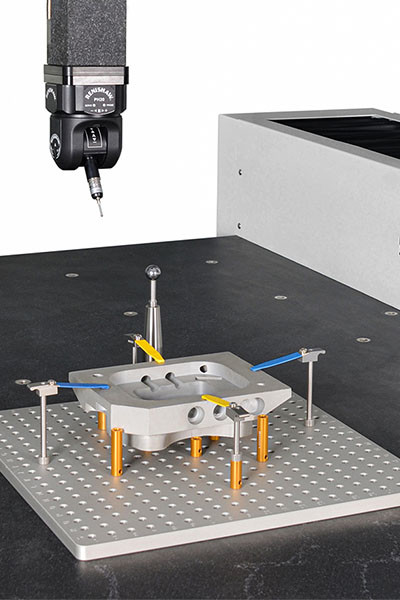

Modular baseboards and components for coordinate measuring machines providing flexible, repeatable, and standardized fixturing solutions.
Applications
The FlexFix fixture kits are widely used across various industries including electronics, aerospace, automotive, plastics, and medical care. Compatible with all sizes and models of CMM and VMM equipment.
Modular Fixturing System
Designed and developed by UNIMETRO to improve reproducibility and accuracy of inspection processes. Provides quick, repeatable fixturing set-ups for components of any size, shape, or material.
Features high-accuracy aluminum fixture plates with M8 threaded fittings in various standard sizes. Complex manufacturing process ensures system accuracy and reliability. Tool-free assembly increases throughput and avoids inspection delays.
Kit Selection
Each kit includes one baseboard and a comprehensive set of components. Select base plate size based on CMM machine dimensions and measuring requirements.
Fixture Components
Components are designed to hold parts firmly with minimal necessary force, avoiding damage or distortion. Includes supporting, clamping, and pressing elements for flexible fixturing combinations and clear probe paths.
Base Plates
Multiple sizes available to accommodate different CMM machines and component requirements. Manufactured using CNC machining, precision grinding, anodise coating, and laser marking for high accuracy and flatness.
Features alphanumeric grid pattern with visible part numbers for fully documented and reproducible set-ups.
Available Plate Sizes
- 400*300mm, M8 Thread holes
- 400*400mm, M8 Thread holes
- 500*500mm, M8 Thread holes
- 600*600mm, M8 Thread holes
- Other customized sizes available
Kit Components & Specifications
| Product Name |
Mark |
QTY |
| 12*50mm standoff | 80001 | 6 |
| 12*30mm standoff | 80002 | 6 |
| 16*50mm standoff | 80003 | 6 |
| 16*30mm standoff | 80004 | 6 |
| 20*50mm standoff | 80005 | 6 |
| 20*30mm standoff | 80006 | 6 |
| 12*20mm standoff | 80007 | 6 |
| 16*20mm standoff | 80008 | 6 |
| 20*20mm standoff | 80009 | 6 |
| Pusher damp | 800010 | 2 |
| Screw pusher damp | 800011 | 2 |
| Adjustable pivot joint | 800012 | 2 |
| Adjustable jack stand | 800013 | 2 |
| Magnet | 800014 | 4 |
| Pin Standoff | 800015 | 2 |
| Adaptor | 800016 | 6 |
| Baseboard screw | 800017 | 2 |
| V post | 800018 | 2 |
| Screws | 800019 | 2 |
| Adjustable slide | 800020 | 8 |
| Tension clamp | 800021 | 4 |
| Hold down clamp | 800022 | 2 |
| Short tension damp support | 800023 | 2 |
| Long tension clamp support | 800024 | 2 |
| Cone | 800025 | 3 |
| Nylon cone | 800026 | 3 |
| Screwdriver | 800027 | |
Frequently Asked Questions
Q1: Are you a factory or trading company?
A1: We are a factory and provide responses within 24 hours.
Q2: What does your company mainly produce?
A2: We specialize in vision measuring machines, coordinate measuring machines, and CMM & VMM fixtures.
Q3: How to choose the appropriate specification?
A3: Our professional team will recommend suitable specifications based on your product variety and measurement requirements.
Q4: Do you accept customized service?
A4: Yes, we provide both standard machines and customized solutions tailored to customer needs.
Q5: What is your warranty period?
A5: Our products come with a 1-year warranty. We have improved breakable parts for enhanced product stability and quality.
