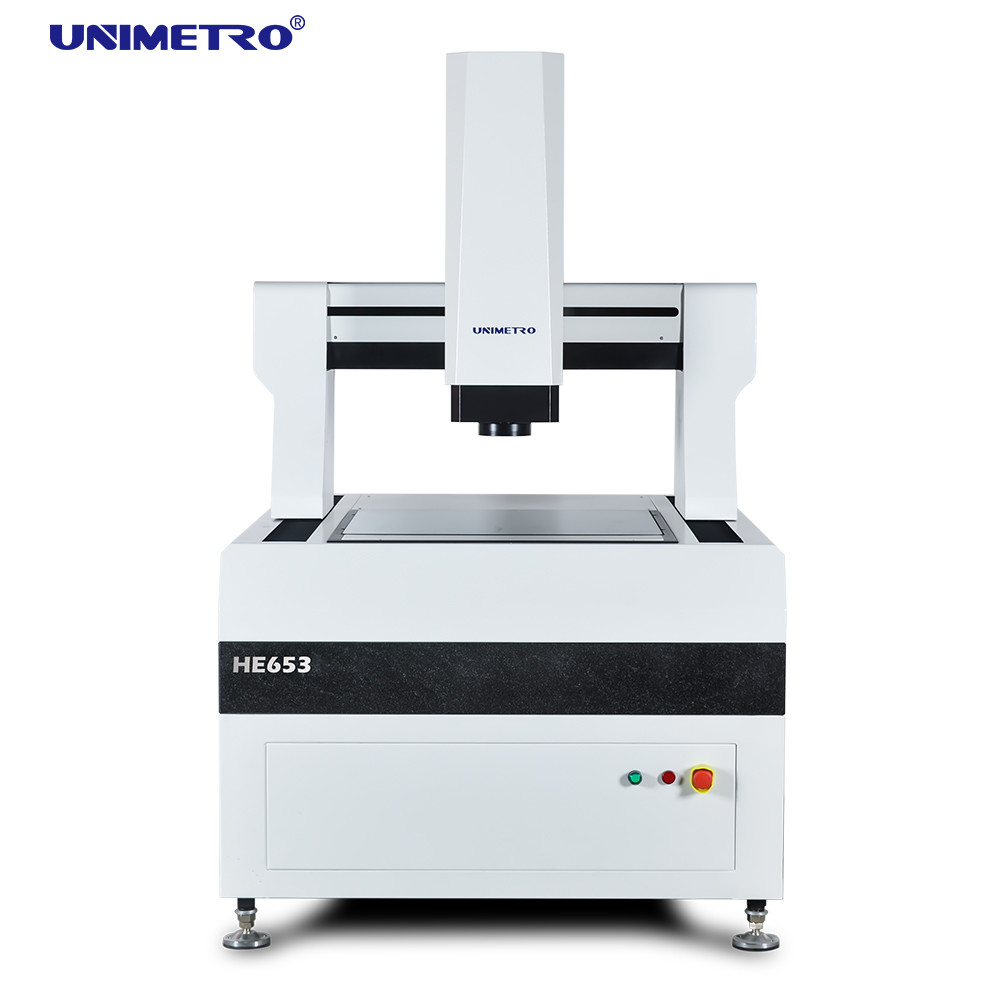

High-Resolution Vision Measurement System with Movable Gantry Structure

The HE series high-accuracy gantry-type Visual Measurement Systems combine precision and efficiency, offering high-speed measurement for geometric elements of various parts. These systems are widely used across multiple industries including PCB, copper clad laminate, glass panels, LCD modules, and insulation materials.

Finite element analysis was incorporated into the HE series design process, ensuring high rigidity and precise mechanical structure. The machine base utilizes a closed-frame movable bridge type structure, providing simplicity, high loading capacity, and optimal motion performance.

• Movable gantry structure with fixed workpiece during measurement
• Four-axis CNC full-automatic closed-loop control for complete automation
• 000 grade granite base and beam for stability and reliability
• Open grating ruler with 0.1 μm resolution for high precision and stability
• Precision linear guide rail, grinding grade ball screw, and AC servo motor ensure positioning accuracy
• High-resolution color camera for clear observation and stable measurement
• 6.5x continuous automatic zoom lens with accurate automatic zoom and single-pixel correction
• Programmable 5-ring 8-zone LED surface light source and transmission parallel LED contour light source with 256-level intelligent brightness adjustment
• Imported contact probe for 3D measurement capability
• Inmeasuring4.2 automatic image measurement software with independent property rights, powerful and user-friendly

Our large vision measuring machine is supported by powerful software capabilities:

• External-Array RationalVue composite measuring software provides powerful 2D/3D composite measuring functions
• Simple and intuitive operation interface for efficient measurement processes
• Automatic measurement program setup for efficient and rapid batch measurement
