Image Dimension Measurement System With Genesis Series And Flashpro Ultra-High Speed Detection Vision Software

Multiple Products Placed Randomly Image Measurement Machine

Descrition

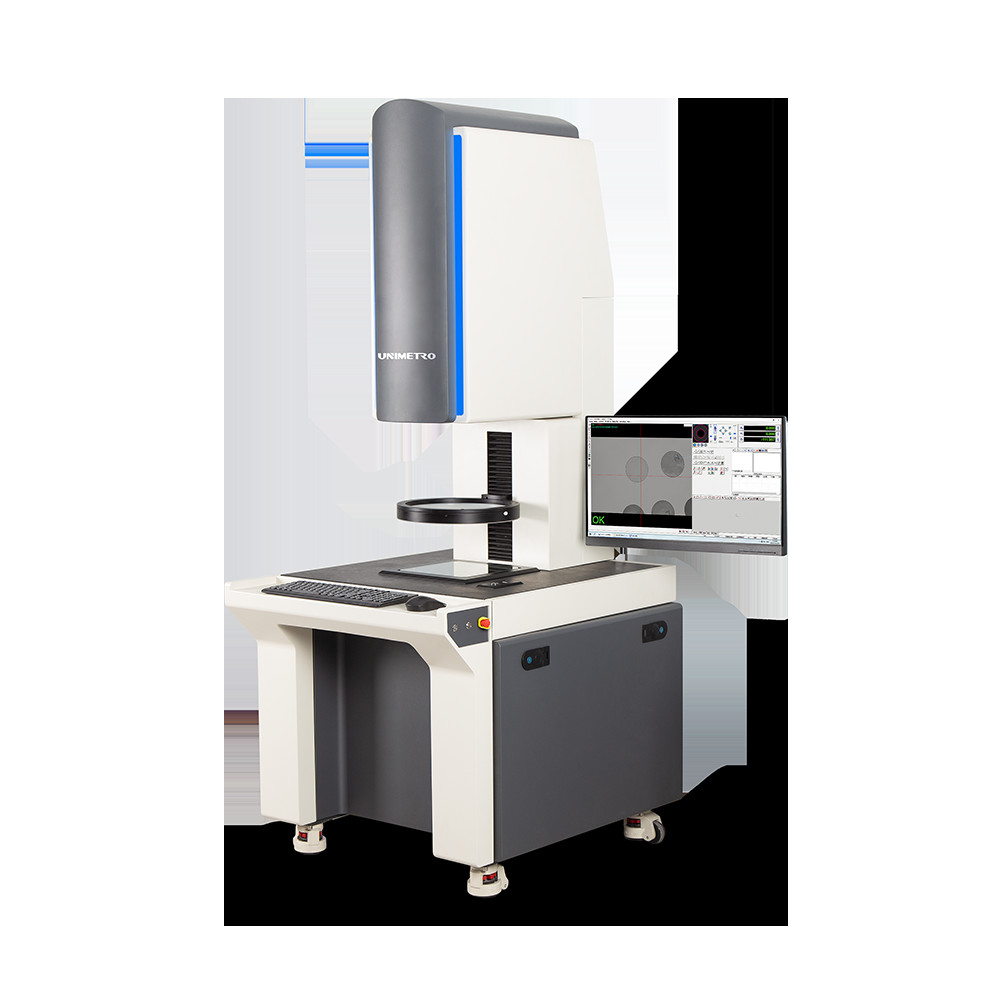

The Genesis series fast image mosaic measuring instrument combines the fast image stitching measurement technology with the traditional image measurement technology. It is equipped with a large field of vision telecentric lens and a fully automatic zoom telecentric lens. At the same time, it realizes the functions of fast measurement and large magnification fine measurement, and supports the measurement function of placing multiple pieces at will, so that users can obtain the use experience and efficiency of one click measuring instrument and traditional image measuring instrument on one machine.

Software Function

Genesis series, together with flashpro ultra-high speed detection vision software, provides subversive rapid measurement function. The software has made many groundbreaking changes in fast image processing, concurrent algorithm, precision compensation, system framework and so on.

● Complete image measurement software functions: including the measurement of various 2D element points, lines, circles, arcs, polylines and splines; Complete coordinate system, structure and tolerance calculation function;
● Import, export and offline programming functions of CAD;
● High precision sub-pixel interpolation and lens distortion compensation;
● Target recognition and image matching module;
● Support socket communication interface.

Parameters

Company Information

Our Client&Agent

FAQ
Q1: Are you a factory or trading company ?
A1: We are a factory and giving you the quickest reply in 24 hours.
Q2: What's your company mainly in?
A2: We are mainly produce Vision measuring machine,Coordinate measuring machine ,CMM&VMM fixturesetc.
Q3: How to Choose the Appropriate Specification?
A3: As long as you tell us variety and size of product to be measured, our professional team would advise you of measuring instrument of suitable specifications.
Q4: Do you accept customized service?
A4: Be sure! We can provide not only typical machines, but also the machines customized to customer's needs.
Q5: What is your warranty period?
A5: Our product warranty period is 1 year. Our product quality is very stable, and we have improved  a lot on some breakable parts. You can rest assured of our product quality.
