One-Touch Dimension Measurement System: High-Resolution Imaging & Rapid Results

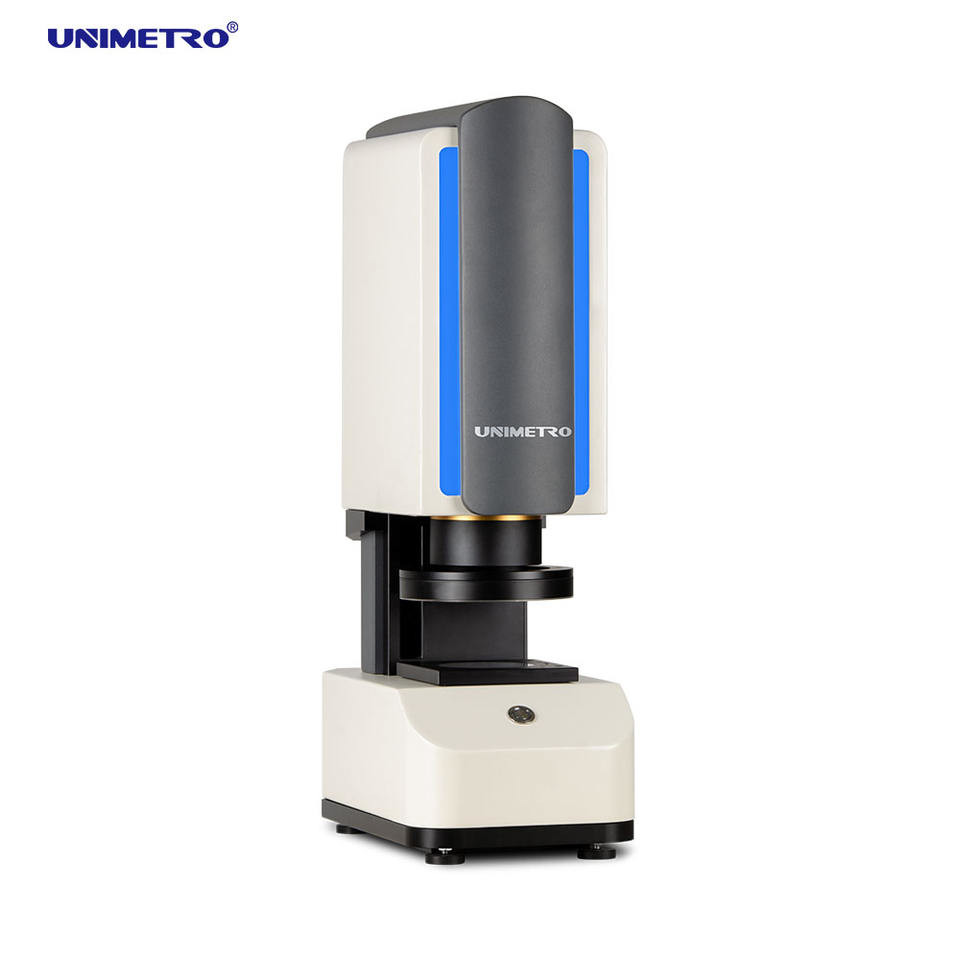

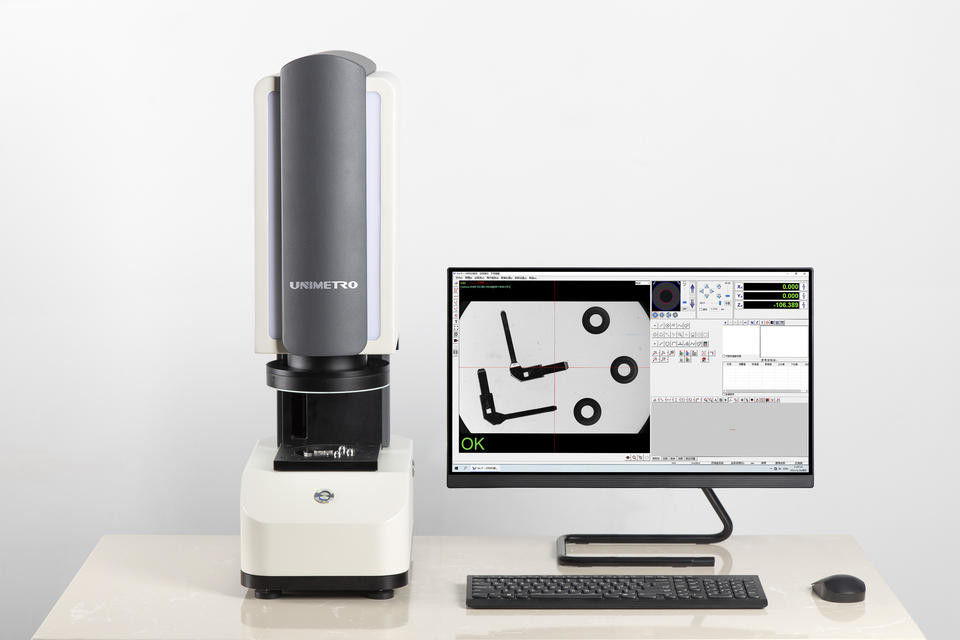

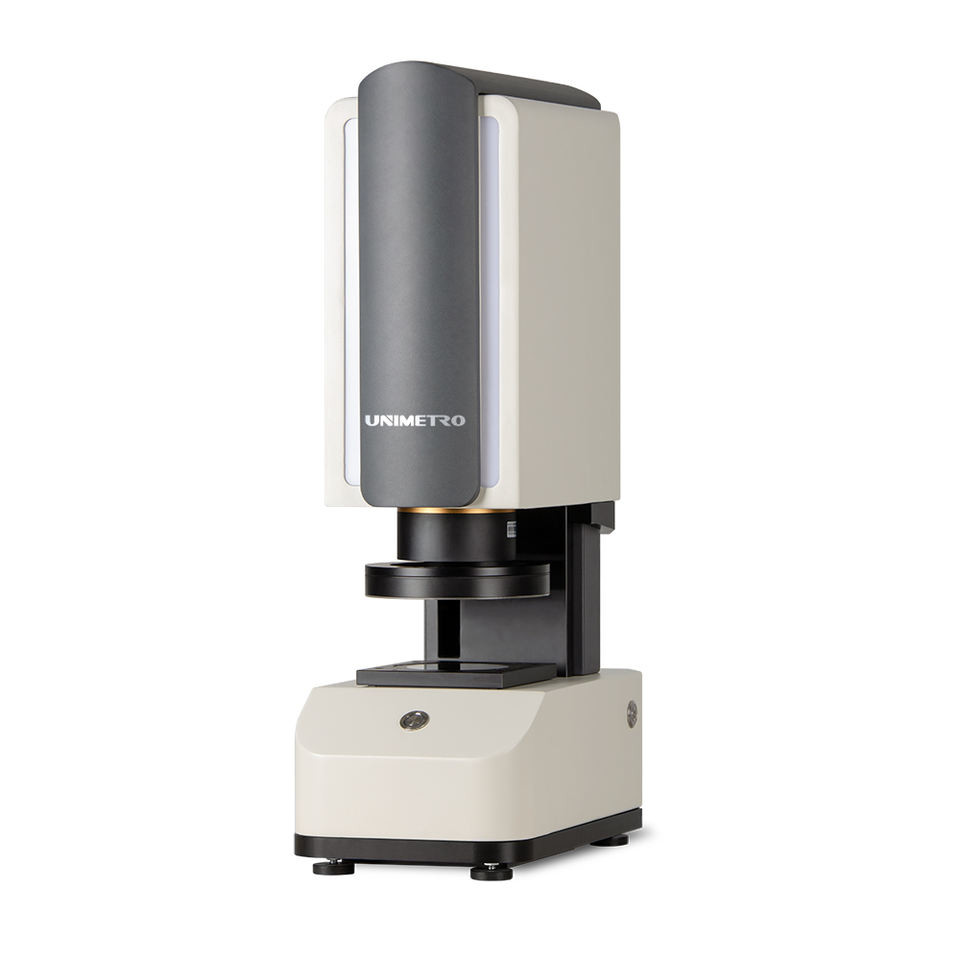

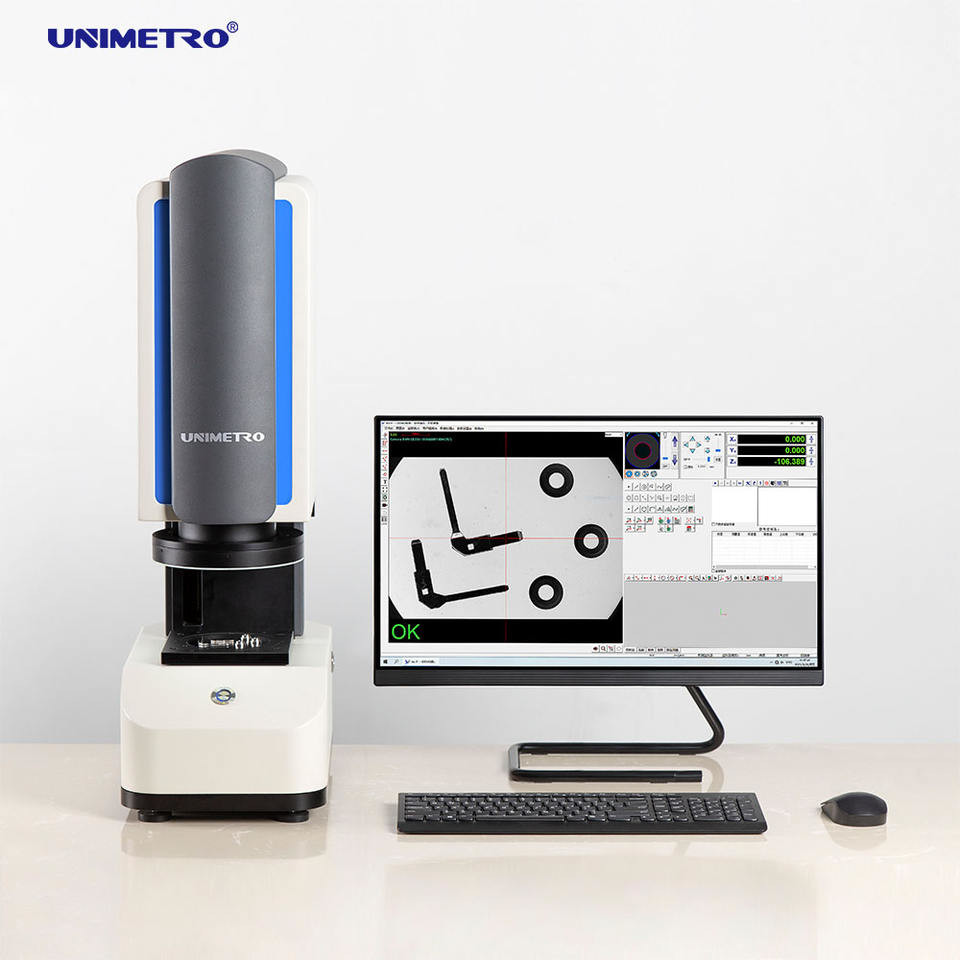

AVANT 100 Large FOV Video Measurement System
The A100 Large FOV Video Measurement System represents UNIMETRO's innovative image measurement technology. Unlike traditional 2D video measurement systems that rely on grating ruler displacement sensors and high-magnification lenses, this system delivers precision through advanced optical and digital processing.

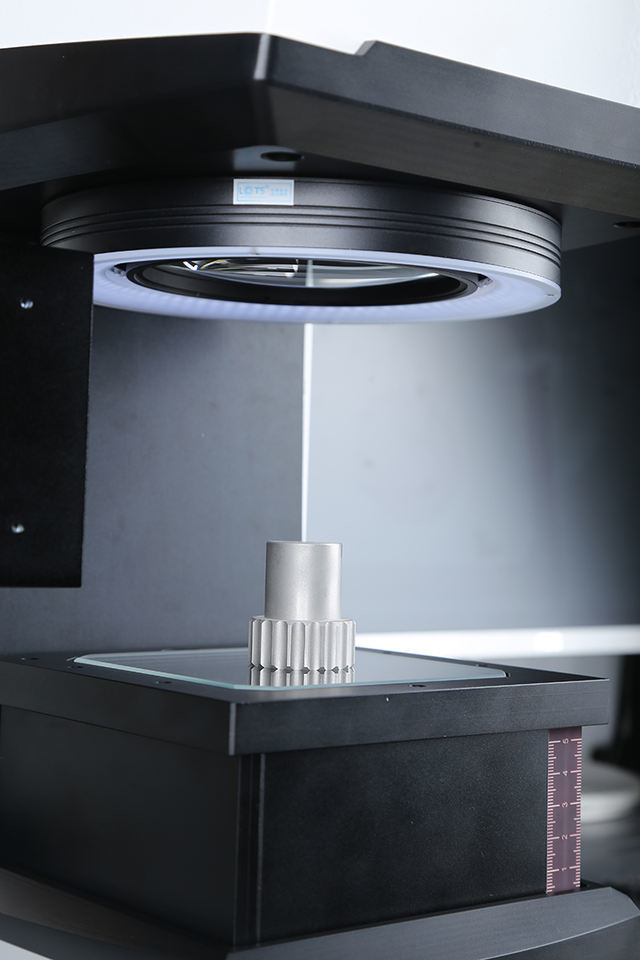

Featuring a simplified structure, the system utilizes a telecentric zoom lens with wide viewing angle and large depth of field, combined with a high-pixel CCD camera and powerful background software. This eliminates the need for traditional displacement sensors while maintaining exceptional accuracy.
Through high-speed digital processing and precision image analysis algorithms, the system completes dimensional tolerance evaluation with a single keystroke. Ideal for applications in machinery, electronics, mold making, injection molding, hardware, rubber, low-voltage electrical appliances, magnetic materials, precision stamping, connectors, terminals, mobile phones, household appliances, printed circuit boards, medical equipment, watches, and cutting tools.
System Features & Advantages
Overcoming Traditional Measurement Limitations
Traditional measuring instruments like projectors, tool microscopes, image measuring instruments, contour measuring instruments, and vernier calipers often present challenges including complex operation, difficult focusing processes, time-consuming coordinate table movements, human error, lengthy batch measurement times, and complicated data management.
Fast and Efficient Operation
- Products can be placed freely on the workbench without additional fixtures for positioning
- Rapid measurement capability - up to 512 parts measured simultaneously
- Enhanced batch measurement efficiency with quick, accurate CNC mode operation
Accurate and Consistent Results
- One-click operation delivers precise, consistent measurement results for any operator
- Software auto-focus eliminates deviation from manual focus adjustment
- Automatic measurement position identification ensures unified, stable results every time
Easy and Simple Operation
- Quick startup with minimal training required, improving workforce efficiency
- Simple operation interface enables operators to quickly locate and use functions
- Virtual lines and points creation for expanded measurement requirements
Workflow: Import DXF templates → Place workpiece without positioning → One-click measurement (button press or space bar)
Large FOV Video Measurement System Applications
Company Information
Our Clients & Agents
Frequently Asked Questions
Q1: Are you a factory or trading company?
A1: We are a factory and provide responses within 24 hours.
Q2: What does your company primarily manufacture?
A2: We specialize in vision measuring machines, coordinate measuring machines, CMM & VMM fixtures, and related equipment.
Q3: How to choose the appropriate specification?
A3: Our professional team will recommend suitable specifications based on your product variety and measurement requirements.
Q4: Do you accept customized services?
A4: Yes, we provide both standard machines and custom solutions tailored to specific customer needs.
Q5: What is your warranty period?
A5: Our products come with a 1-year warranty. We've enhanced durability on breakable components, ensuring reliable product quality.
