Mold Industry Coordinate 3D Measuring Machine Powerful Software 0.1um Resolution

Basic Information
Place of Origin: China
Brand Name: UNIMETRO
Certification: CE
Model Number: HE
Minimum Order Quantity: 1
Price: Discussible
Packaging Details: Wood Case
Delivery Time: 20 work days
Payment Terms: T/T
Supply Ability: 10 per month
Detail Information
Power Voltage: 220V Air Pressure: 0.7-1.0Mpa
Filter Accuracy: 0.3 Um Air Supply: 0.12-0.45m³/min
Working Temperature: 18-22°C Hourly Temperature Cycle: 1 °C/H
Max 3D Acceleration: 900mm/s Max 3D Speed: 520mm/s
High Light:

CMM 3D Measuring Machine


0.1um 3D Measuring Machine


Mold 3D Coordinate Measuring Machine

Product Description

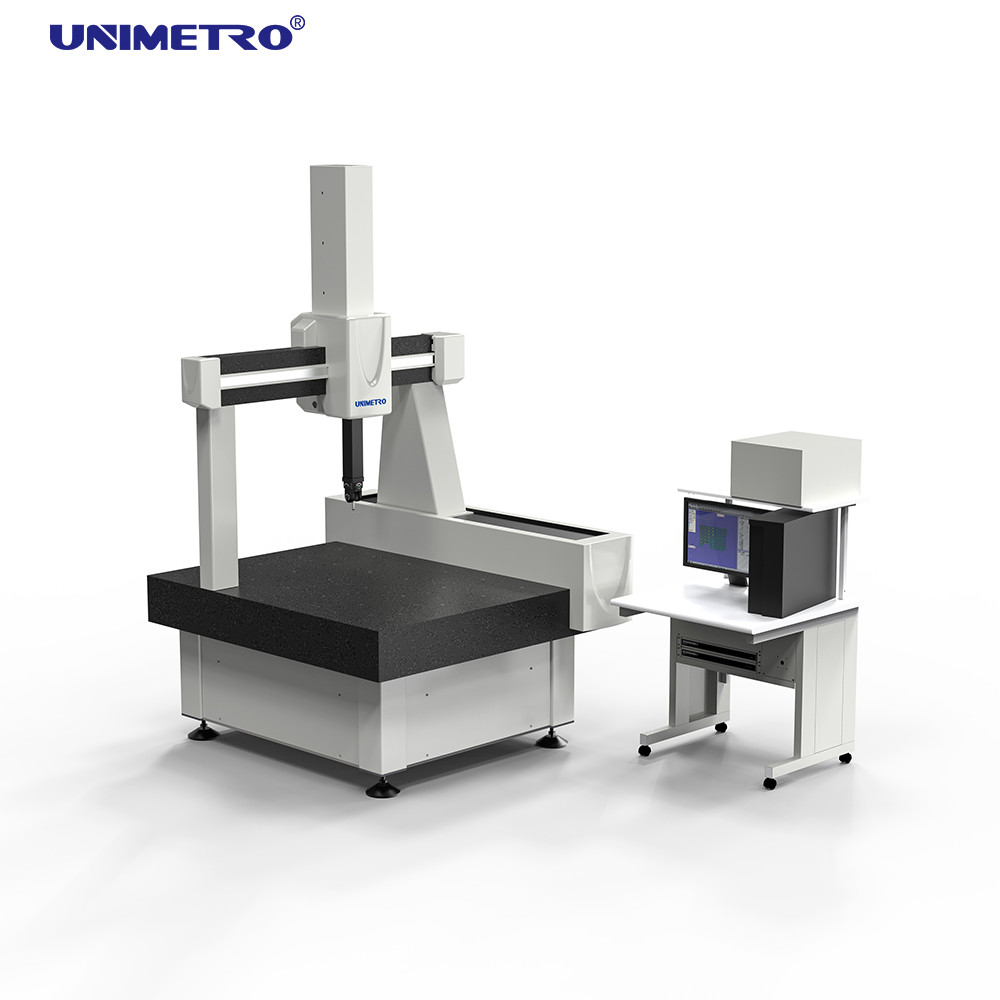

Mold Industry Coordinate 3D Measuring Machine Powerful Software 0.1um Resolution



“Helium” is characterized by the highest precision machine which is UNIMETRO wholly developed and designed. Each part is selected strictly in the period of manufacturing and make sure that all parts are connected perfectly and opportunely in the period of assembly. The acceptance of measuring machines takes place according to ISO 10360-2. In doing so, two standardized acceptance procedures are used. All measuring machines are measured with an ultra precision laser. Afterwards, a test conforming to standards with DKD-certified solid measures such as gauge blocks, ball plates, etc. is conducted. Therefore, the machine customers use at last is real high quality,high precision and German Technology.


Measuring area Overall dimension Max Part Weight
X=710mm, Y=1016mm, Z=610mm 1460 X 1800 X 2700 mm 1000kg
Machine weight MPEe MPEp
2380kg ≤ 1.8+L/350 (μm) ≤ 2.3μm
Scale resolution Max 3D Speed Max 3D Acceleration
0.5um 520mm/s 900mm/s


Patent double passive vibration damping:
High quality granite worktable:
Enclosed guides in all axes:
Friction “automatic rectifying” transmission:
Imported key parts:
RENISHAW optical scale:
Air bearing surround guide way in all 4 sides:
Small holes technology:


Rational-DMIS Rational - DMIS is a newly developed large-scale integrated 3D measurement software package. In addition to the development and design of studio software, which takes into account the requirements of beginners for easy learning and use of the software and the functional requirements of high-level users for the software, more importantly, it has become a model for CMM measurement software standardization. Rational DMIS programs are designed with the full and native DMIS kernel until version 5.0 of DMIS, which is totally different from the so-called "support DMIS" (the kernel is not DMIS). As we all know, DMIS has become an ISO standard (ISO 22093:2003)

Mold Industry Coordinate 3D Measuring Machine Powerful Software 0.1um Resolution 0


Probe head :MH20i manual head by RENISHAW

Repeatability of position Positioning steps Rotating axis
+0.5 μm 15° +180°
Swing axis : Total number of positions : Operational temperature :
0°- 90° 140mm 10-40℃
Probe :TP20 SF module Probe: M2 probe assembly
Number Name Specifications Qty
A-5004-7585 Probe extension rod 10mm 1
A-5004-7586 Probe extension rod 20mm 2
A-5000-2280 Probe extension rod 240mm 1
A-5000-7805 Ball probe Φ0.7×10mm 2
A-5000-7806 Ball probe Φ1×10mm 2
A-5000-3603 Ball probe Φ2×10mm 2
A-5000-3604 Ball probe Φ3×10mm 2
A-5000-4161 Ball probe Φ4×10mm 1
A-5000-2286 Ball probe Φ5×10mm 1
  Probe spanner   2
Total: 10 Type   16pc
