Name: Articulated Arm Contour and Roughness Measurement System for Bearing Surfaces
Brand: Unimetro Precision Machinery Co., Ltd
SKU: SPR1000
Price: 20,500.00 USD
Availability: InStock

Detail Information

Sensor:	Digital Type Contour Sensor&Standard No-head Roughness Sensor	Sorftware:	CMS Contour Measurement System&RMW Surface Roughness Measurement And Anlysis System
Applicant:	Articulated Arm Bearing ,Optical Grade Germanium Crystal,Seal Ring,Turbo Seal Etc	Contour Accuracy:	±2´
Roughness:	Rsk,Rku,Rsm,Rsm,Rs,RΔq,Rk,Rpk,Rvk,Mr1,Mr2,Rmr	Rating Length:	λcX2,3,4,5,6,7
X-axis:	0.1~10mm/s	Z-axis:	0.5-10mm/s
Highlight:	10mm/s Contour Measuring Instrument , Rsk Roughness Contour Measuring Instrument , Rku Roughness Measuring Instrument

Product Description

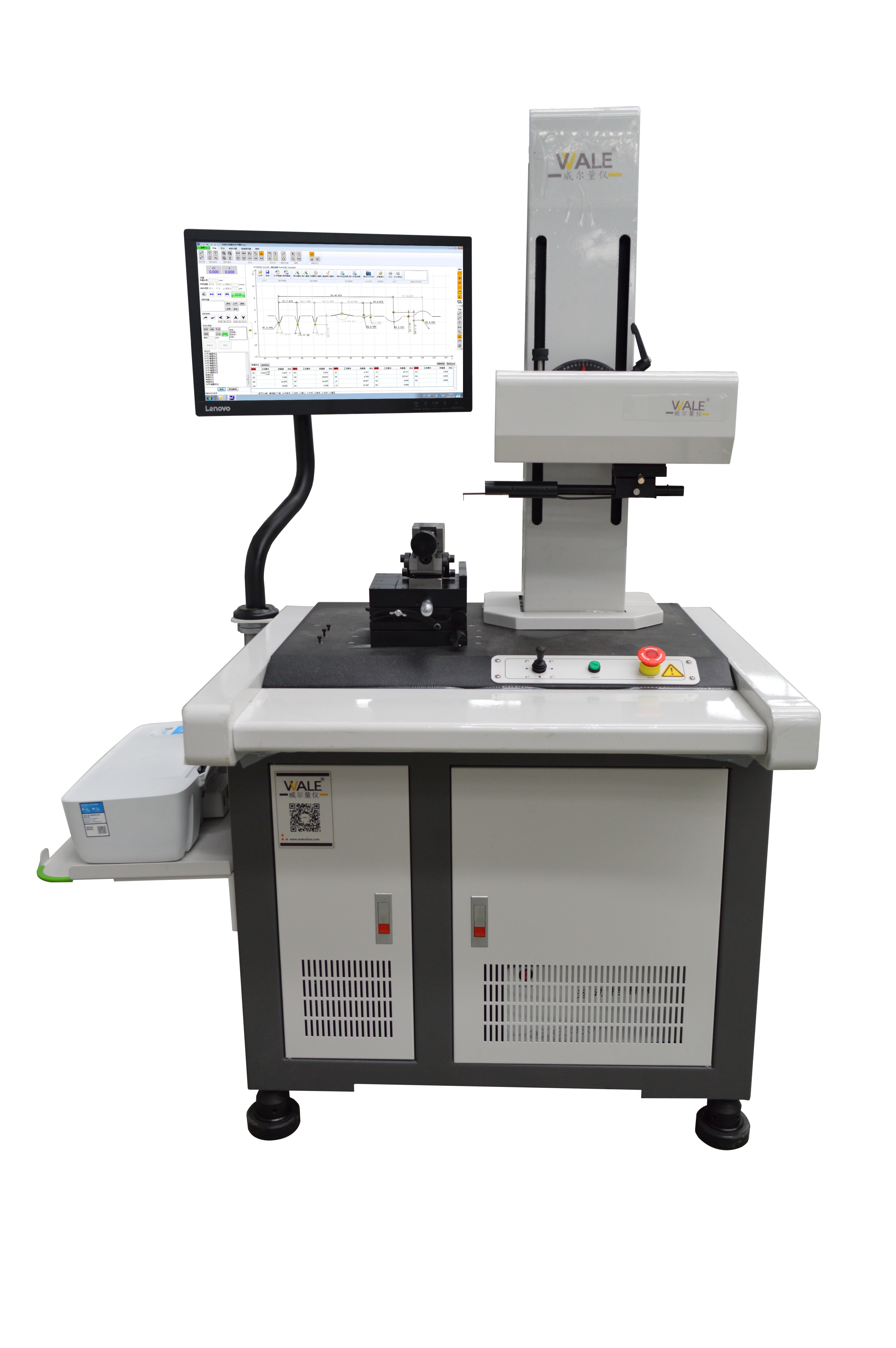

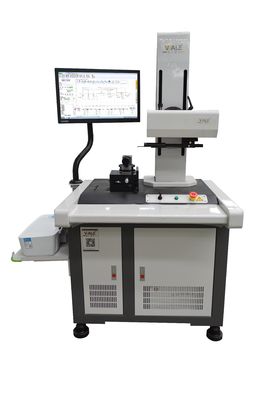

Articulated Arm Contour and Roughness Measurement System for Bearing Surfaces

Surface Roughness Contour Tester

A comprehensive roughness profile measurement analysis system for precision surface evaluation of bearing surfaces and other high-profile components.

Surface Measurement Elements

All surfaces require analysis of these critical elements:

Dimensions: Surface functional shapes defined by linear relationships between radius, angle, distance, and features
Shape: Deviation from target surface shape (plane, sphere, cone, etc.), typically caused by machine error
Roughness: Surface texture variations caused by cutting tools or machining processes
Waviness: Non-ideal machine effects caused by vibration, insufficient rigidity, or other unstable process factors

SPR1000 Series - Standard Type

Features dual sensor technology with digital contour sensor and inductive standard roughness sensor for combined contour and roughness measurement in one machine.

Technical Specifications

Specification	PR1103G-sdk
Measuring Range X-axis	100mm
Measuring Range Z-axis	320mm
Measuring Range Z1-axis	C:±12.5mm/R:±420µm
Contour Accuracy Z1 Linear Precision	±(1.5+\|0.2H\|)µm
Arc Accuracy	±(2+R/8)µm
Angle Accuracy	±2´
Straightness	0.8µm/100mm
Roughness Accuracy Linear Precision	±4%
Residual Noise	≤0.02µm
Duplicate Value	1δ≤2nm
Cutoff Wavelength	0.025, 0.08, 0.25, 0.8, 2.5, 8mm
Rating Length	λcX2,3,4,5,6,7
Drive Speed X-axis	0.1~10mm/s
Drive Speed Z-axis	0.5-10mm/s

Measurement Functions

Profile Measurement

Line elements of various workpiece surfaces, point features, distance measurements, parallelism, perpendicularity, angle, groove depth, groove width, radius, straightness analysis, convexity analysis, and profile analysis.

Roughness Parameters

Ra, Rp, Rv, Rz(jis), R3z, RzDIN, Rzj, Rmaz, Rc, Rt, Rq, Rsk, Rku, Rsm, Rs, RΔq, Rk, Rpk, Rvk, Mr1, Mr2, Rmr

Waviness Parameters

Wa, Wt, Wp, Wv, Wz, Wq, Wsm, Wsk, Wku, Wmr

Original Contour Parameters

Pa, Pt, Pp, Pv, Pz, Pq, Psm, Psk, Pku, Pmr

Measurement Applications

Real-world measurement examples demonstrating system capabilities:

Articulated arm bearing surface analysis

Optical grade germanium crystal surface evaluation

Seal ring surface contour and roughness analysis

Turbo seal component surface measurement

System Components

P Series Digital Contour Sensor

Resolution: 0.02-0.2µm
Range: ±7.5-±30µm
Linear precision: ±(1.5+|0.6H|)µm
Measuring power: 1.2kg
Feature: Maintains excellent linearity across large measurement ranges

Drive Systems

Rail travel: 100-150mm
Number interval: 0.2~2µm
Contour straightness: 0.5µm/100mm
Roughness residual value: ≤0.02µm
Maximum moving speed: 10mm/s
Minimum measurement speed: 0.1mm/s
Options: DS standard driver or DC ceramic driver
Application: Meets part-level contour measurement accuracy requirements and roughness measurement needs for Ra greater than 0.1 microns

Roughness Testing Overview

This roughness tester provides rapid and accurate determination of surface texture and surface roughness of materials, displaying both roughness depth (Rz) and mean roughness value (Ra) in micrometers or microns (µm).
