Surface Roughness and Contour Tester for Articulated Arm Bearings
The SPR1000 Series Surface Roughness Contour Tester is a precision measurement system designed for comprehensive surface analysis of industrial components including articulated arm bearings, optical grade germanium crystals, seal rings, and turbo seals.
Surface Measurement Fundamentals
All surfaces can be measured across four key elements that define their functional characteristics:
- Dimensions: Linear relationships between radius, angle, distance, and surface features
- Shape: Deviation from target geometry (plane, sphere, cone) typically caused by machine error
- Roughness: Surface texture resulting from cutting tools or machining processes
- Waviness: Non-ideal machine effects from vibration, insufficient rigidity, or process instability
SPR1000 Series Characteristics
Standard configuration with optimal cost-efficiency. Features dual sensor technology combining digital contour sensing with inductive roughness measurement for comprehensive surface analysis in a single machine.

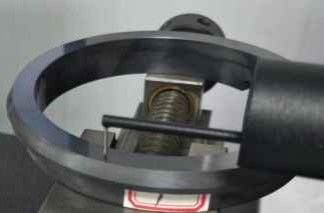

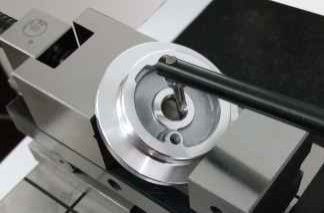

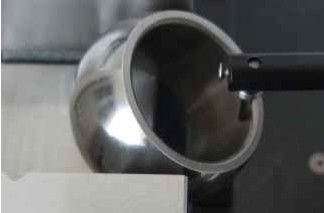

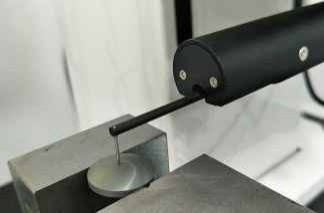

Measurement Applications
Technical Specifications
| Specification |
Value |
| Model Number |
PR1103G-sdk |
| Measuring Range X-axis |
100mm |
| Measuring Range Z-axis |
320mm |
| Measuring Range Z1-axis |
C:±12.5mm/R:±420μm |
| Contour Accuracy Z1 Linear Precision |
±(1.5+|0.2H|)μm |
| Arc Accuracy |
±(2+R/8)μm |
| Angle Accuracy |
±2′ |
| Straightness |
0.8μm/100mm |
| Roughness Linear Precision |
±4% |
| Residual Noise |
≤0.02μm |
| Duplicate Value |
1δ≤2nm |
| Cutoff Wavelength |
0.025, 0.08, 0.25, 0.8, 2.5, 8mm |
| Rating Length |
λcX2,3,4,5,6,7 |
| X-axis Drive Speed |
0.1~10mm/s |
| Z-axis Drive Speed |
0.5-10mm/s |
Measurement Capabilities
Profile Analysis: Line elements, point features, distances between points and lines, position analysis including distance, parallelism, perpendicularity, angle, groove depth, groove width, radius, straightness analysis, convexity analysis, and profile analysis.
Roughness Parameters: Ra, Rp, Rv, Rz(jis), R3z, RzDIN, Rzj, Rmaz, Rc, Rt, Rq, Rsk, Rku, Rsm, Rs, RΔq, Rk, Rpk, Rvk, Mr1, Mr2, Rmr
Waviness Parameters: Wa, Wt, Wp, Wv, Wz, Wq, Wsm, Wsk, Wku, Wmr
Original Contour Parameters: Pa, Pt, Pp, Pv, Pz, Pq, Psm, Psk, Pku, Pmr
System Components
P Series Digital Contour Sensor
- Resolution: 0.02-0.2µm
- Range: ±7.5-±30µm
- Linear Precision: ±(1.5+|0.6H|)µm
- Measuring Force: 1.2kg
- Maintains excellent linearity across large measurement ranges
Drive System Options
- Rail Travel: 100-150mm
- Number Interval: 0.2~2µm
- Contour Straightness: 0.5µm/100mm
- Roughness Residual Value: ≤0.02µm
- Maximum Speed: 10mm/s
- Minimum Speed: 0.1mm/s
- Standard drive meets part-level contour measurement requirements
Column Components
- Range: 320~420mm / 520~620mm (selectable)
- Maximum Speed: 10mm/s
- Minimum Speed: 0.5mm/s
- Positioning Accuracy: 0.01mm
- Lightweight frame design ensures long-term stability without deformation
Platform Components
- Material: Marble construction
- Specifications: 500×800mm, 500×1000mm
- One-piece design with compact structure for easy maintenance
Frequently Asked Questions
Are you a factory or trading company?
We are a factory and provide responses within 24 hours.
What does your company primarily manufacture?
We specialize in Vision Measuring Machines, Coordinate Measuring Machines, CMM & VMM fixtures, and related equipment.
How to choose the appropriate specification?
Our professional team will recommend suitable specifications based on your product variety and measurement requirements.
Do you accept customized service?
Yes, we provide both standard machines and custom solutions tailored to specific customer needs.
What is your warranty period?
Our products come with a 1-year warranty. We have enhanced durability on breakable components to ensure product reliability.
