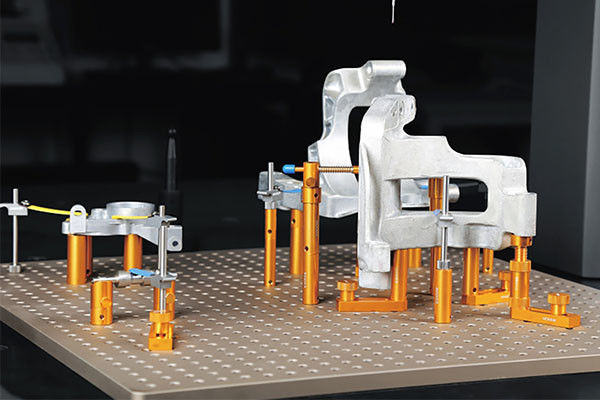

Flexible Fixture & CNC Fixture Clamps for CMM Machine Checking Precision

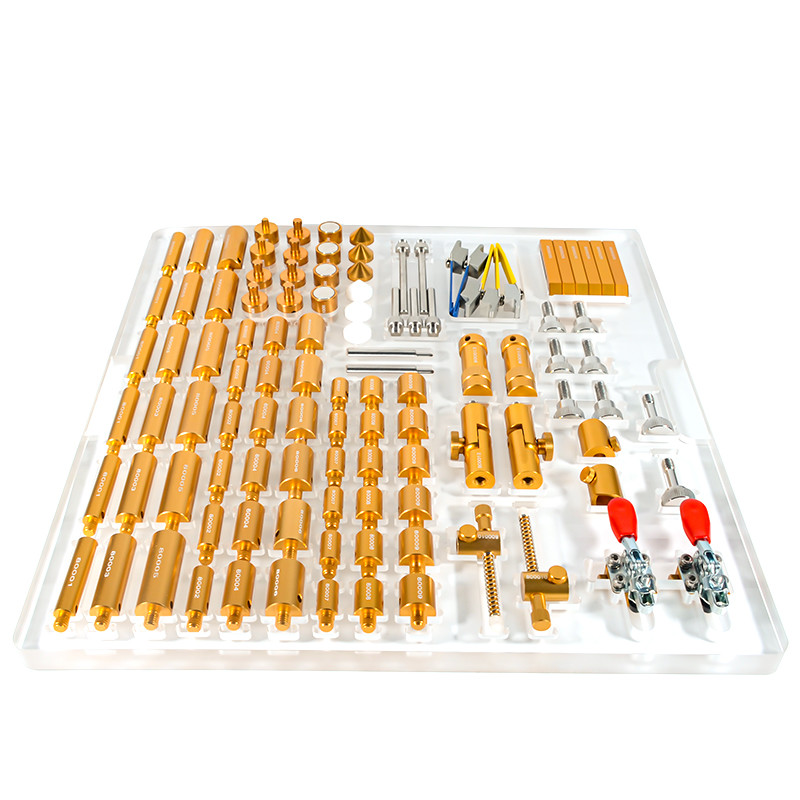

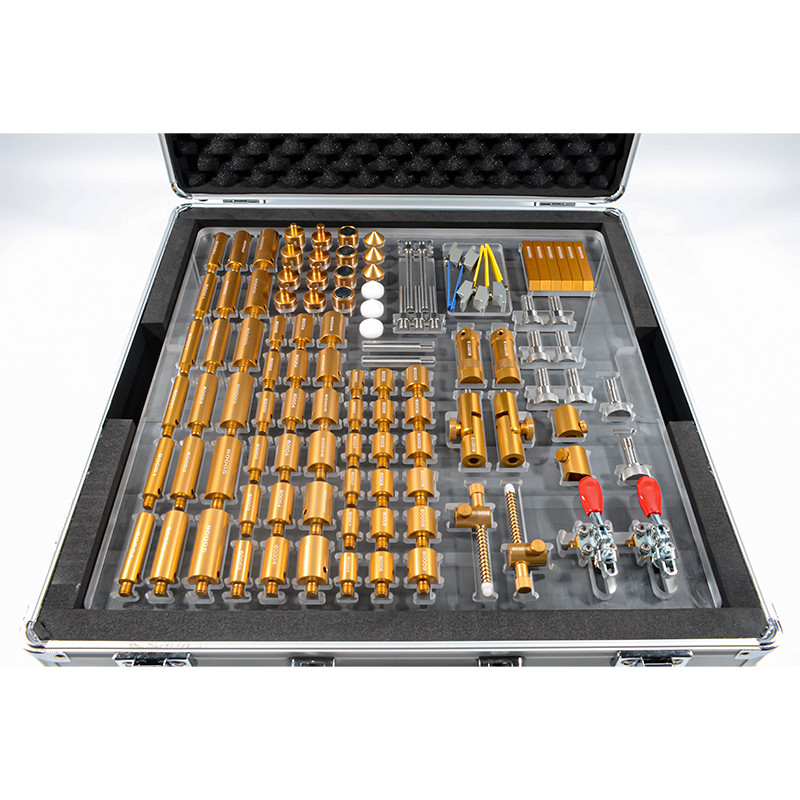

The Flexfix series of CMM fixture components are engineered to securely fix components with minimal necessary force without requiring special tools. All components serve specific functions including support, clamping, or pressing. The intelligent design prevents damage or deformation of measured parts. Primarily designed for three-coordinate machine measurement applications, these fixtures offer flexible combination options, simple operation, and exceptional cost performance.

Multiple sizes of base plates are available for the Flexfix series CMM fixtures, providing wide application range for different CMM sizes and accommodating various component fixturing requirements.

The manufacturing process for CMM fixture base plates involves complex procedures including CNC machining, precision grinding, anodized coating, and laser marking to ensure high accuracy, exceptional flatness, and reliable performance. In addition to standard sizes, we offer customized dimensions and thread hole patterns.

The fixture plates feature an alphanumeric grid pattern with clearly visible part numbers for each fixturing component. This enables users to fully define and document set-ups by recording assembly and location details, allowing quick and accurate reproduction of identical configurations for subsequent inspections.
