Detail Information

Model:	AVANT 190	Product Name:	Large FOV One-Button Precise Video Measuring Machine
Dimension:	8129642076mm	Repeatability:	±3（Coordinate Table Not Moving）
Display Resolution:	0.1um	Warranty:	12 Months
Weight:	530KG	Broad Vision:	195*130mm
Highlight:	Large FOV Video Measuring Machine , Precise Video Measuring Machine

Product Description

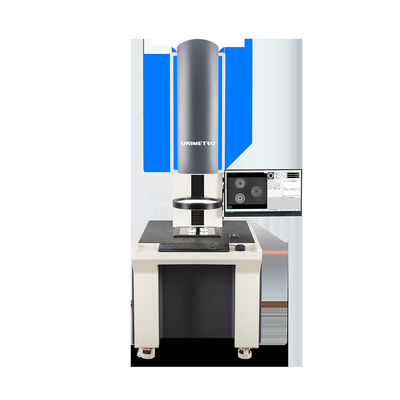

Large FOV One-Button Precise Video Measuring Machine

Describing

AVANT 190 image dimension measurement instrument is a new type of image measurement technology from UNIMETRO. It is different from the traditional 2D vision measurement instrument, it no longer needs a linear scale displacement sensor as a precision standard, and it does not need to enlarge the product image through a large focal length lens to ensure measurement accuracy.

Large FOV One-Button Precise Video Measuring Machine 0

Parameters

Product Name		Large FOV One-Button Precise Video Measuring Machine
Model		AVANT190
Image sensor		20MP HD color digital camera
External display		24'
Light receiving lens		Single/double telecentric lens
Illumination	Drop shot system	Single zone ring directional lighting (white light)
	Transmission	Parallel transmission illumination (white light)
Broad Vision(mm)		195*130mm
Repeatability	Broad vision	±3(Coordinate table not moving)
Measurement Software		INS/F
Display resolution	0.1um
Z-direction electric coordinate table	Moving range	100mm
Dimension	8129641076mm
Weight	530KG
Power Supply	110-240VAC,50/60HZ

Features

Fast & efficient:
1) The product can be placed arbitrarily without additional fixtures to fix and position.
2 Fast measurement, up to 512 locations can be measured at the same time.
3 To make batch measurement more efficient, batch measurement can be carried out quickly and accurately in CNC mode.

Accurate & consistent:
1) With just one button, anyone can easily obtain accurate and consistent measurement results.
2) Software auto focus, no deviation caused by focus adjustment.
3) Automatically identify the measurement location, obtain uniform and stable measurement results.

Easy to operate:
1) Anyone can get started quickly, saving manual training time and improving work efficiency.
2) Simple operation interface, the operator can quickly find the corresponding function and measure it.
3) Virtual lines and virtual points can be created to meet more measurement requirements.

Application

Plastic parts

Electronic parts

Gear parts

Rubber parts

Metal parts

Bearing

Stamping molds

Phone parts

etc.

Large FOV One-Button Precise Video Measuring Machine 1

Company Information

Our Client&Agent

FAQ
Q1: Are you a factory or trading company ?
A1: We are a factory and giving you the quickest reply in 24 hours.
Q2: What's your company mainly in?
A2: We are mainly produce Vision measuring machine,Coordinate measuring machine ,CMM&VMM fixturesetc.
Q3: How to Choose the Appropriate Specification?
A3: As long as you tell us variety and size of product to be measured, our professional team would advise you of measuring instrument of suitable specifications.
Q4: Do you accept customized service?
A4: Be sure! We can provide not only typical machines, but also the machines customized to customer's needs.
Q5: What is your warranty period?
A5: Our product warranty period is 1 year. Our product quality is very stable, and we have improved a lot on some breakable parts. You can rest assured of our product quality.

Tag:

Place of Origin:	Guangdong, China
Brand Name:	UNIMETRO
Certification:	CE,ISO
Model Number:	AVANT190

Minimum Order Quantity:	1set
Price:	Negotiable
Packaging Details:	Wooden case+ Vacuum package
Delivery Time:	10days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	50sets per month
