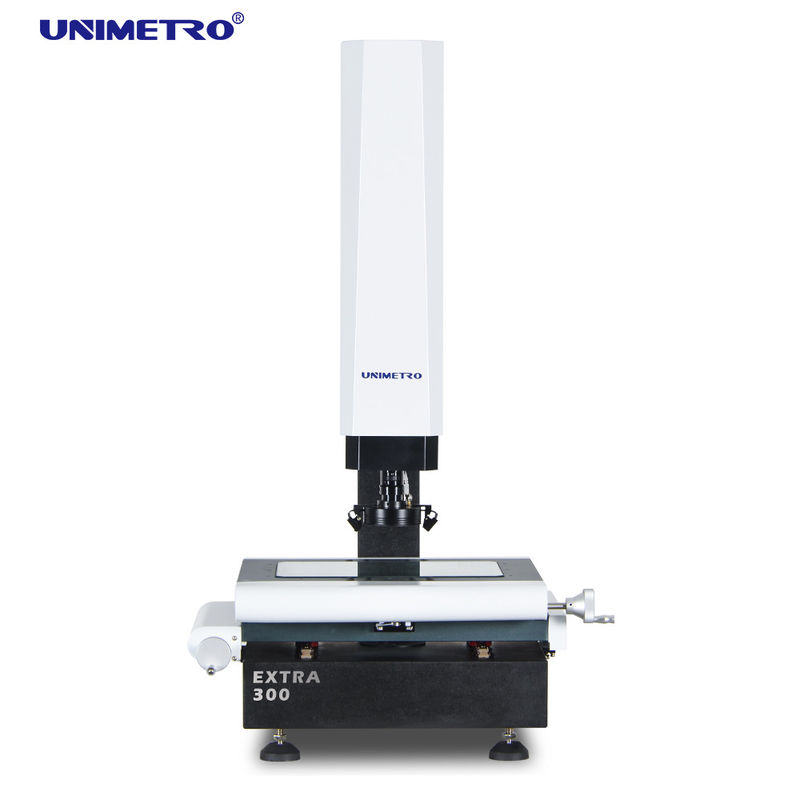

Visual Measurement Machine

Our pcb vision measuring machine has below feature:

Granite base and column, excellent stability;

The Z-axis adopts high-precision linear guide and servo motor control system to realize automatic focusing, eliminate the error of artificial focusing, and improve the measurement accuracy and stability;

Aluminum work stage,make the motion control fast reacting and flexible;

Programmable 3-ring 4-section LED surface light source, transmission parallel LED contour light source system, and the built-in light adjustment module of the software can freely control the brightness of light in 3 rings and 4 zones.





Hardeare configuation

The configuations of our vision pcb vision measuring machine are as below:

◉ 3 axis 0.5um resolution linear scales

◉ High performance Auto focus function
◉ Compatible with Renishaw touch probe
◉ Aluminum work stage and hard anodizing
◉ 3 rings 8 section LED ring light software control and programmable
◉ Parallel light path LED contour light software control and programmable
◉ 1.2M pixel HD digital camera
◉ Integrated core control box
◉ Z axis motorized control
◉ HIWIN linear guide way
◉ Manual pulse generator for Z axis movement control
◉ With Laser indicators for auxiliary positioning and focusing
◉ 0.7-4.5X manual dented zoom lens with magnification signal feedback sensor





Features

Our pcb vision measuring machine can add probe to realize 3d function
◉ Easy calibration

◉ Multiple angle touching

◉ Fast coordinates system setting

◉ Compatible to full line of Renishaw stylis

◉ CAD module supported(Optional)

◉ 3D drawing output
◉ Star probe compatible
◉ 3D dimension measuring
◉ Image and touch probe combine measuring
◉ Probe rack supported(Optional)
High Precision Pcb Vision Measurement Machine Vmm Machine automatic focusing 1

Our pcb vision measuring machine 's parameter are as below chart shows:

  Extra200 Extra300 Extra400 Extra500
Dimension(mm)(LxWxH) 550*540*930 600*740*980 700*840*980 800*940*980
Measuring range(mm)(XxYxZ) 200*100*150 300*200*200 400*300*200 500*400*200
Measuring Accuracy(μm) 2.5+L/100 3.0+L/100
Repeatability(μm) 2.5 3
Weight(kg) 140 190 240 290
Image and Measuring Camera 1.2M pixel HD digital camera
Lens 0.7-4.5X manual dented zoom lens with maganification signal feedback sensor
Magnification 18-195X(For reference only.With different camera and lens the magnification will be different.)
Field of View 8.1mm~1.3mm
Working distance 80mm
Linear scale resolution 0.5μm(0.1μm optional)
Driving system X, Y axis manual control, Z axis close-loop CNC control and AUTO FOCUS function available
Illumination Programmable 4 sections Led ring surface light,parallel LED contour light 8 sections LED ring light,co-axial light,for option.





High Precision Pcb Vision Measurement Machine Vmm Machine automatic focusing 2

INSPECT 3D VISION MEASURING SOFTWARE

The UNIMETRO INSPECT3D software is with user friendly UI, easy to learn,
powerful function, allows the users to achieve fast and precise measuring.
The software is offering full English language UI, also allows new language development.


High Precision Pcb Vision Measurement Machine Vmm Machine automatic focusing 3

◉ Input CAD file and measure

◉ Parts array and macro measuring
◉ Auto focus and height measuring
◉ Navigating function helps fast locating
◉ Powerful geometric measuring function
◉ Multiple data reports and graphical data output function
◉ Flexible user program
◉ Creating reference elements
◉ Powerful edge detecting function
◉ Supporting multiple external accessories
◉ Auto calculation of the elements geometrical tolerance
◉ Measuring complicated production fast and conveniently
High Precision Pcb Vision Measurement Machine Vmm Machine automatic focusing 4
High Precision Pcb Vision Measurement Machine Vmm Machine automatic focusing 5
