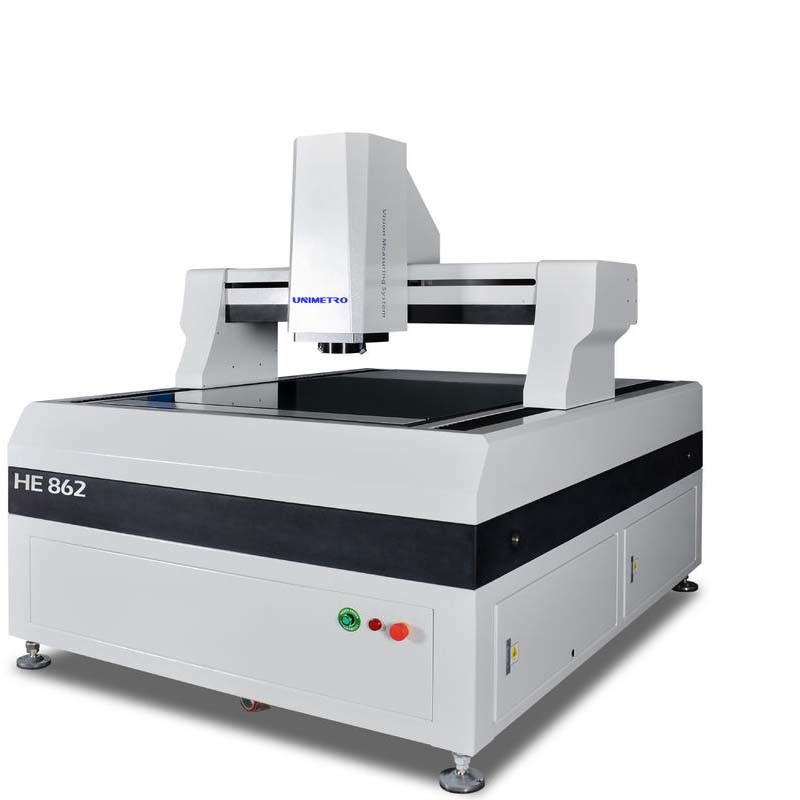

High Resolution Vision Measurement Machine For Plastic Injection Industrial or Factory

High Precision Optical Measurement Equipment For Plate Glass

Vision measurement machine is an instrument used for accurate physical dimension measuring,accuracy up to micron level,Which is an optical measuring instrument using the camera to capture the image of the work piece, analyse the image pixel and calculate the 2D dimension with the measuring software. It is a popular model fit for most of the accurate 2D dimension measuring application and end users from different industries, as Mold, Electronics, Semi conductor, Plastic Injection, 3C products, Medical care, Aviation...etc.It is an important instrument used in your products quality control process,ensuring your products dimension accuracy, makes your products more competitive.

Features

>> Movable gantry structure and the workpiece is fixed when measuring;
>> Four axis CNC full-automatic closed-loop control, full-automatic measurement;
>> 000 grade granite base and beam, stable and reliable;
>> Open grating ruler with resolution of 0.1 um, high precision and good stability;
>> Precision linear guide rail, grinding grade ball screw and Panasonic AC servo motor ensure the stability of positioning accuracy of machine motion system;
>> High resolution color camera to meet the requirements of clear observation and stable measurement;
>> 6.5x continuous automatic zoom lens, accurate automatic zoom, one pixel correction is enough;
>> The programmable 5-ring 8-zone LED surface light source and transmission parallel LED contour light source system can realize 256 level brightness adjustment intelligently;
>> The imported contact probe is configured to realize 3D measurement;
>> Immeasuring4.2 automatic image measurement software with independent property rights is provided as standard, which is powerful and easy to use;

Optical Measurement Equipment Optional Multi-sensor For 3D Measurement

>> Illumination:4/8/40 sections LED surface ring light; 48 sections 4 colors LED ring light; Movable 4 colors LED ring light
>> Lens:Manual dented zoom lens; Auto zoom lens,Manual dented zoom lens with co-axial light; Auto zoom lens with co-axial light.
>> Touch probe:Renishaw MCP kits,Measuring error <=0.75um; Renishaw PH6+TP20,Measuring error<=0.35um.
>> Laser sensor:KEYENCE non-contact laser sensor; White light measuring sensor.

Parameters

Company Information

Our Client&Agent

FAQ
Q1: Are you a factory or trading company ?
A1: We are a factory and giving you the quickest reply in 24 hours.
Q2: What's your company mainly in?
A2: We are mainly produce Vision measuring machine,Coordinate measuring machine ,CMM&VMM fixturesetc.
Q3: How to Choose the Appropriate Specification?
A3: As long as you tell us variety and size of product to be measured, our professional team would advise you of measuring instrument of suitable specifications.
Q4: Do you accept customized service?
A4: Be sure! We can provide not only typical machines, but also the machines customized to customer's needs.
Q5: What is your warranty period?
A5: Our product warranty period is 1 year. Our product quality is very stable, and we have improved  a lot on some breakable parts. You can rest assured of our product quality.
