Viedo Measurement Instrument With An Extremely Wide Measurement Range That Has Been Certified By IOS

High-Efficiency Big Measuring Range Image Measuring Instrument / VMM

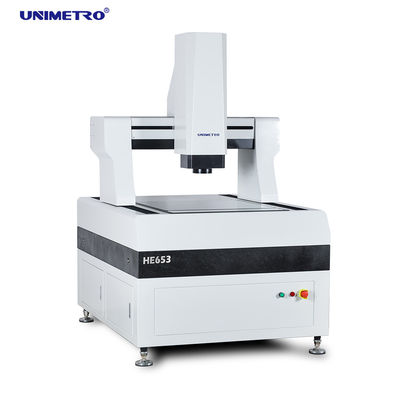

He series gantry type full automatic Image Measuring Instrument is specially designed for high-precision and large-scale measurement. It adopts fully closed mobile bridge structure to keep the measurement work fixed. It combines high-precision and high-efficiency organically to effectively detect the geometric parameters of various products. It is mainly used in the industries like: PCB circuit board, copper clad laminate, flat glass, liquid crystal module, knife mould, insulating material, precision sheet metal and so on.


Hardware Features

>> Adopted whole closed frame moving bridge structure , fixed the measuring workpiece , large bearing capacity , and good performance performance.
>> Introduce finite element analysis technology into mechanical design to ensure high rigidity and high precision mechanical structure.
>> Grade 000 granite marble base, high strength, corrosion resistance and good stability.
>> Aluminum oxide surface treatment worktable --- fast and flexible action control, durable and beautiful.

Configuration

>> Open grating ruler, resolution 0.1um, high precision and good stability.
>> Precision linear guide rail, ball screw of grinder and AC servo motor ensure the stability of positioning accuracy of machine system.
>> 2M pixel high-definition color Giga digital camera fits the requirements of clear observation and stable measurement.
>> 6.5X high-definition optical lens, accurate automatic zoom, fast once pixel calibration.

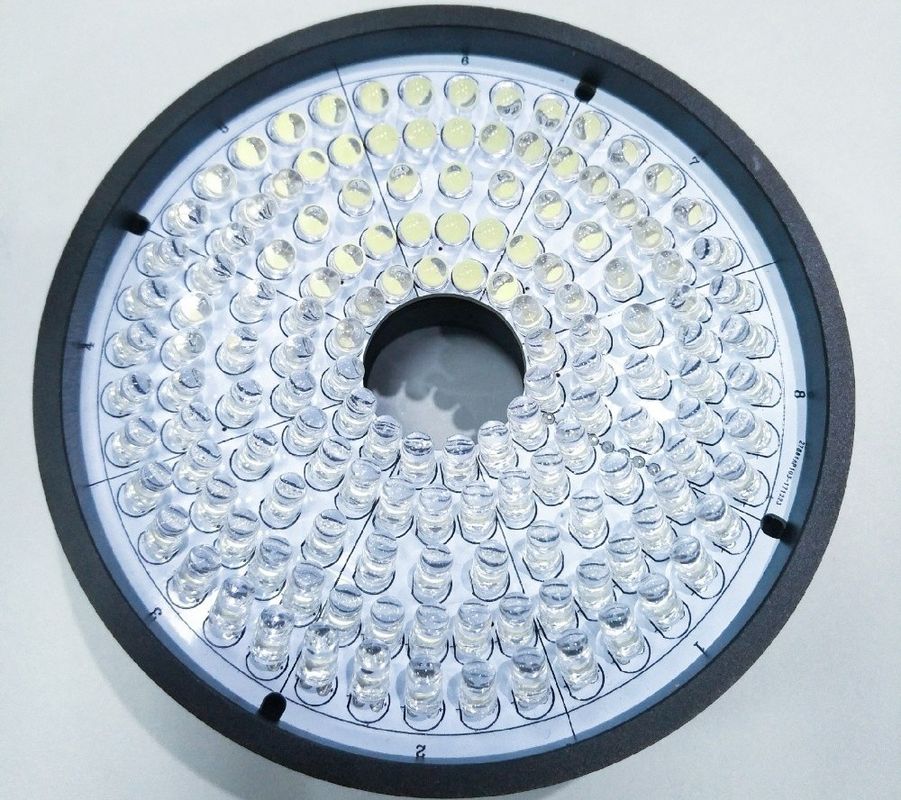

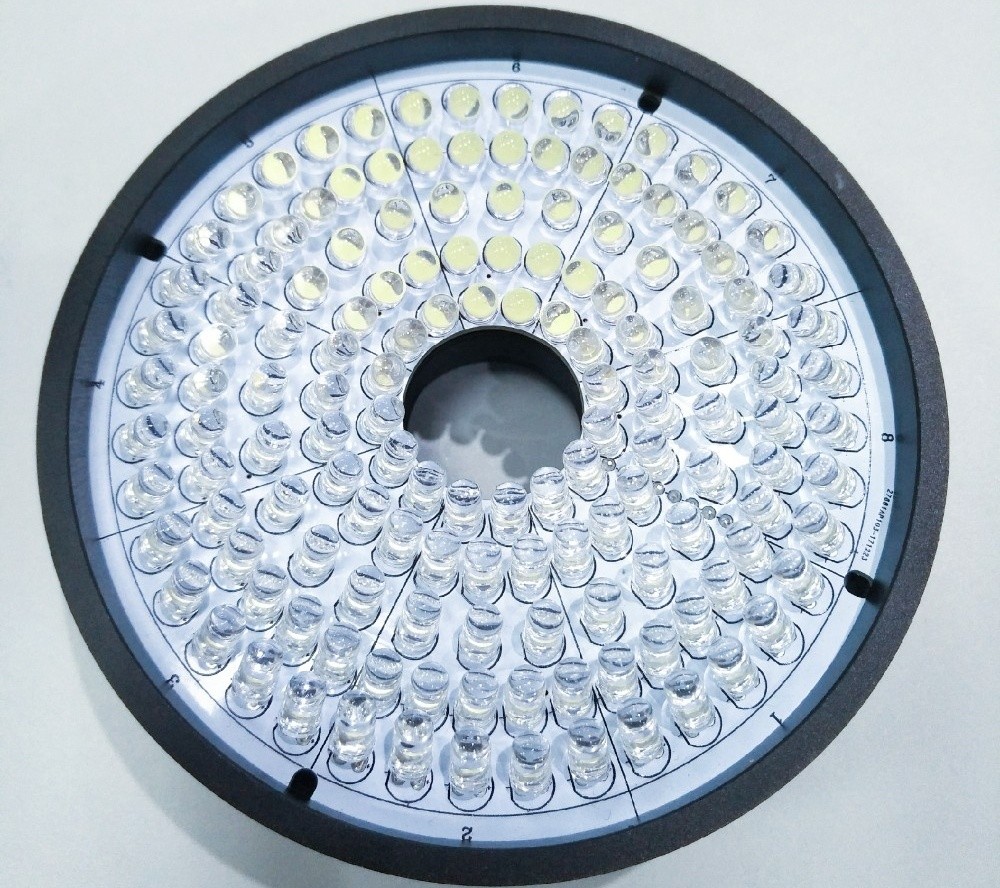

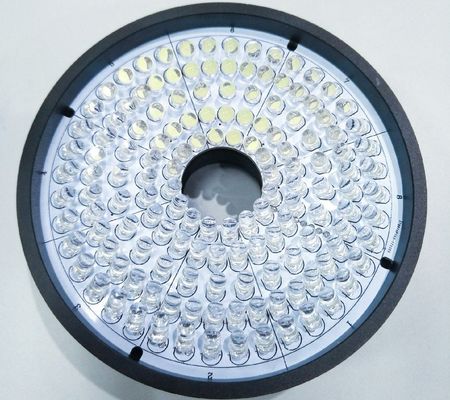

>> Programmable 8 sections LED surface light source with parallel LED contour light source(Green or White).
>> CNC control,close-loop AC Servo driving system,joystick,mouse or keyboard control.

Image Measuring Instrument Optional Multi-sensor For 3D Measurement

Illumination:4/8/40 sections LED surface ring light; 48 sections 4 colors LED ring light; Movable 4 colors LED ring light

Lens:Manual dented zoom lens; Auto zoom lens,Manual dented zoom lens with co-axial light; Auto zoom lens with co-axial light.

Touch probe:Renishaw MCP kits,Measuring error <=0.75um; Renishaw PH6+TP20,Measuring error<=0.35um.

Laser sensor:KEYENCE non-contact laser sensor; White light measuring sensor.

Parameters

Company Information

Our Client&Agent

FAQ
Q1: Are you a factory or trading company ?
A1: We are a factory and giving you the quickest reply in 24 hours.
Q2: What's your company mainly in?
A2: We are mainly produce Vision measuring machine,Coordinate measuring machine ,CMM&VMM fixturesetc.
Q3: How to Choose the Appropriate Specification?
A3: As long as you tell us variety and size of product to be measured, our professional team would advise you of measuring instrument of suitable specifications.
Q4: Do you accept customized service?
A4: Be sure! We can provide not only typical machines, but also the machines customized to customer's needs.
Q5: What is your warranty period?
A5: Our product warranty period is 1 year. Our product quality is very stable, and we have improved  a lot on some breakable parts. You can rest assured of our product quality.
