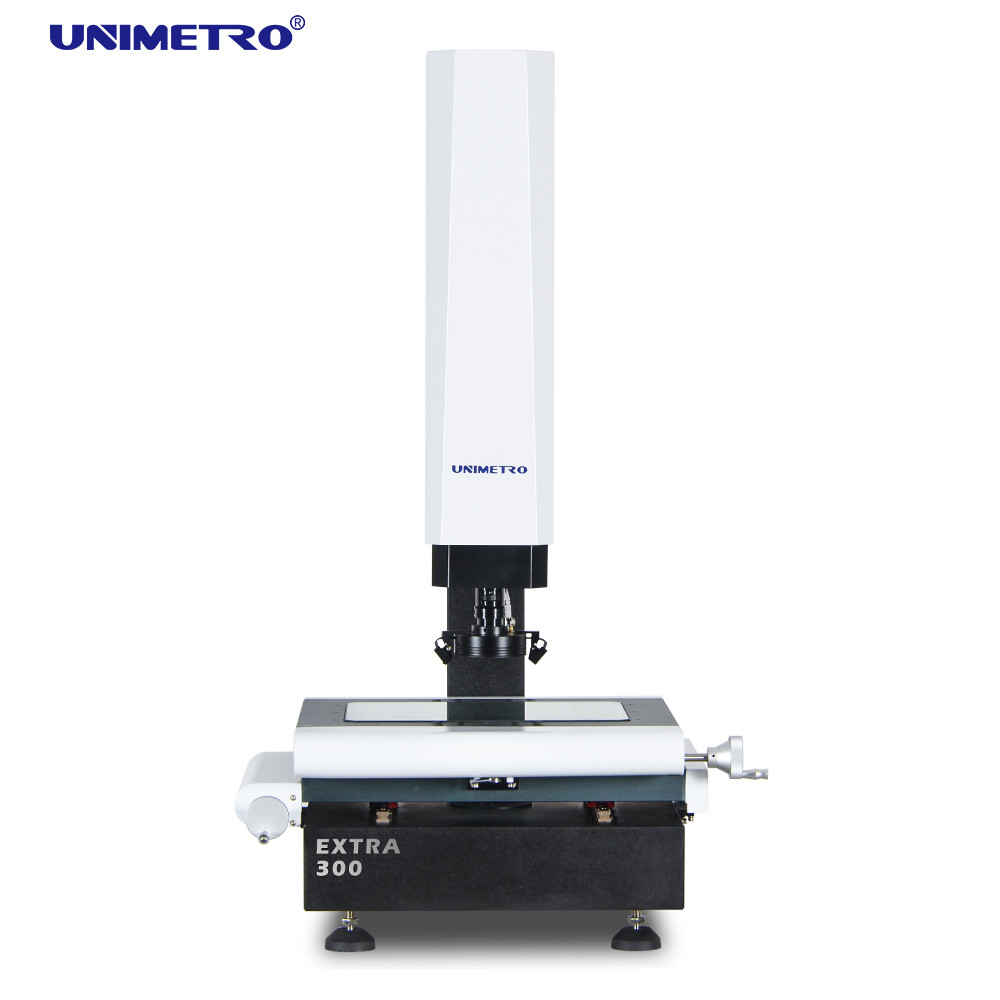

Name: Manual Operation Of 2D VMM Machine, Equipped With Z-Axis Automatic Focusing Function
Brand: Unimetro Precision Machinery Co., Ltd
SKU: EXTRA
Price: 20,500.00 USD
Availability: InStock

Detail Information

Product Name:	Vision Measuring Machine	Z Axis Movement:	Motorized
Z Axis Movement Control:	Keyboard, Software	Focus:	Automatic
X,Y Movement:	Manual	Dimension:	600740980mm
Measuring Range:	300200200mm	Measuring Accuracy:	2.5+L/100um
Repeatability:	2.5um	Weight:	190kg
Linear Scale Resolution:	0.5um(0.1um For Option)	CCD Camera:	HD CCD Camera
Highlight:	2d VMM Machine , Manual VMM Machine , 190kg VMM Machine

Product Description

Manual 2d VMM Machine Can Input DAD Drawing With Z axis Auto Focus

VMM Machine Describtion

1) VMM Machine is an instrument used for accurate physical dimension measuring, accuracy up to micron level.
2) VMM Machine an optical measuring instrument using the camera to capture the image of the work piece, analyse the image pixel and calculate the 2D dimension with the measuring software.
3) EXTRA series VMM Machine is an important instrument used in your products quality control process. It ensures your products dimension accuracy, makes your products more competitive.
4) EXTRA Series VMM Machine is designed and developed by UNIMETRO, which is a popular model fit for most of the accurate 2D dimension measuring application and end users from different industries, as Mold, Electronics, Semi conductor, Plastic Injection, 3C products, Medical care, Aviation...etc.
5) The Z axis of EXTRA series VMM Machine is configured with close loop servo motor system, to achieve high accuracy movement control and auto focus function, users are able to control the Z axis movement and image focusing in the software or keyboard, highly increase the measuring efficiency.

Application Area

a. Mould industry
b. Automobile manufacturing
c. Medical industry
d. Mechanical manufacturing
e. 3C digital industry
f. PCB production
Etc.

Hardware Configuration

◉ 3 axis 0.5um resolution linear scales

◉ High performance Auto focus function

◉ Compatible with Renishaw touch probe

◉ Aluminum work stage and hard anodizing

◉ 3 rings 8 section LED ring light software control and programmable

◉ Parallel light path LED contour light software control and programmable

◉ 1.2M pixel HD digital camera

◉ Integrated core control box

◉ Z axis motorized control

◉ HIWIN linear guide way

◉ Manual pulse generator for Z axis movement control

◉ With Laser indicators for auxiliary positioning and focusing

◉ 0.7-4.5X manual dented zoom lens with magnification signal feedback sensor

◉ Easy calibration

◉ Multiple angle touching

◉ Fast coordinates system setting

◉ Compatible to full line of Renishaw stylis

◉ CAD module supported(Optional)

◉ 3D drawing output

◉ Star probe compatible

◉ 3D dimension measuring

◉ Image and touch probe combine measuring

◉ Probe rack supported(Optional)

Parameters

Model		EXTRA 200	EXTRA 300	EXTRA 400	EXTRA 500
Dimension(mm)(LWH)		500540930	600740980	700840980	800940980
Measuring range (mm)(XYZ)		200100150	300200200	400300200	500400200
Measuring Accuracy (μm)		2.5+L/100	2.5+L/100	2.5+L/100	3+L/100
Repeatability (μm)		2.5	2.5	2.5	3
Weight (kg)		140kg	190kg	240kg	290kg
Image and Measuring	CCD	200mm (can be raised according to the requirements of customers)
	Lens	Manual dented zoom lens 0.7-4.5X/Auto zoom lens 1-10X
	Magnification	18-195X ( For reference only. With different camera and lens the magnification will be different. )
	Field of View	8.1~1.3mm
	Working distance	108mm
Linear scale resolution		0.5 μm( 0.1μm for option )
Driving system		X , Y axis manual conrol , Z axis close-loop CNC control and AUTU FOCUS funtion available
Illumination		Programmable 4 sections LED ring surface light , parallel LED contour light , 8 sections LED ring light , co-axial , for option

Software Functions

The UNIMETRO INSPECT3D software is with user friendly UI, easy to learn,

powerful function, allows the users to achieve fast and precise measuring.

The software is offering full English language UI, also allows new language development.

◉ Input CAD file and measure

◉ Parts array and macro measuring

◉ Auto focus and height measuring

◉ Navigating function helps fast locating

◉ Powerful geometric measuring function

◉ Multiple data reports and graphical data output function

◉ Flexible user program

◉ Creating reference elements

◉ Powerful edge detecting function

◉ Supporting multiple external accessories

◉ Auto calculation of the elements geometrical tolerance

◉ Measuring complicated production fast and conveniently

Company Information

Our Client&Agent

FAQ
Q1: Are you a factory or trading company ?
A1: We are a factory and giving you the quickest reply in 24 hours.
Q2: What's your company mainly in?
A2: We are mainly produce Vision measuring machine,Coordinate measuring machine ,CMM&VMM fixturesetc.
Q3: How to Choose the Appropriate Specification?
A3: As long as you tell us variety and size of product to be measured, our professional team would advise you of measuring instrument of suitable specifications.
Q4: Do you accept customized service?
A4: Be sure! We can provide not only typical machines, but also the machines customized to customer's needs.
Q5: What is your warranty period?
A5: Our product warranty period is 1 year. Our product quality is very stable, and we have improved a lot on some breakable parts. You can rest assured of our product quality.
