Helium Type 700*1000*600mm 3D CMM Se-mi Manual Coordinate Measuring Machine

Basic Information
Place of Origin: China
Brand Name: UNIMETRO
Certification: CE,ISO
Model Number: Helium
Minimum Order Quantity: 1
Price: Discussible
Packaging Details: Wooden case
Delivery Time: 3~5 weeks
Payment Terms: T/T, L/C
Supply Ability: 40
Detail Information
Product Name: CMM Coordinate Measuring Machine Material: Marble Base
Measuring Range: 710 X 1016 X 610 Mm Overrall Diamension: 1460 X 1800 X 2700 Mm
Machine Weight: 2380kg MPEe: ≤ 1.8+L/350 (μm)
MPEp: ≤ 2.3μm Scale Resolution: 0.5um

Product Description

Helium Type 700*1000*600mm 3D CMM Se-mi Manual Coordinate Measuring Machine



“Helium” is characterized by the highest precision machine which is UNIMETRO wholly developed and designed. Each part is selected strictly in the period of manufacturing and make sure that all parts are connected perfectly and opportunely in the period of assembly. All measuring machines are measured with an ultra precision laser. Afterwards, a test conforming to standards with DKD-certified solid measures such as gauge blocks, ball plates, etc. is conducted. Therefore, the machine customers use at last is real high quality,high precision and German Technology.


TECHNICAL PARAMETERS

Measuring area : X=710mm, Y=1016mm, Z=610mm

Overall dimension: 1460 X 1800 X 2700 mm

Max Part Weight: 1000kg

Machine weight: 2380kg

MPEe: ≤ 1.8+L/350 (μm)

MPEp: ≤ 2.3μm

Scale resolution: 0.5um

Max 3D Speed: 520mm/s

Max 3D Acceleration: 900mm/s



* Patent double passive vibration damping:

* High quality granite worktable:

* Enclosed guides in all axes:

* Friction “automatic rectifying” transmission:

* Imported key parts:

* RENISHAW optical scale:

* Air bearing surround guide way in all 4 sides:

* Small holes technology:




Rational - DMIS is a newly developed large-scale integrated 3D measurement software package. In addition to the development and design of studio software, which takes into account the requirements of beginners for easy learning and use of the software and the functional requirements of high-level users for the software, more importantly, it has become a model for CMM measurement software standardization.
Rational DMIS programs are designed with the full and native DMIS kernel until version 5.0 of DMIS, which is totally different from the so-called "support DMIS" (the kernel is not DMIS). As we all know, DMIS has become an ISO standard (ISO 22093:2003)

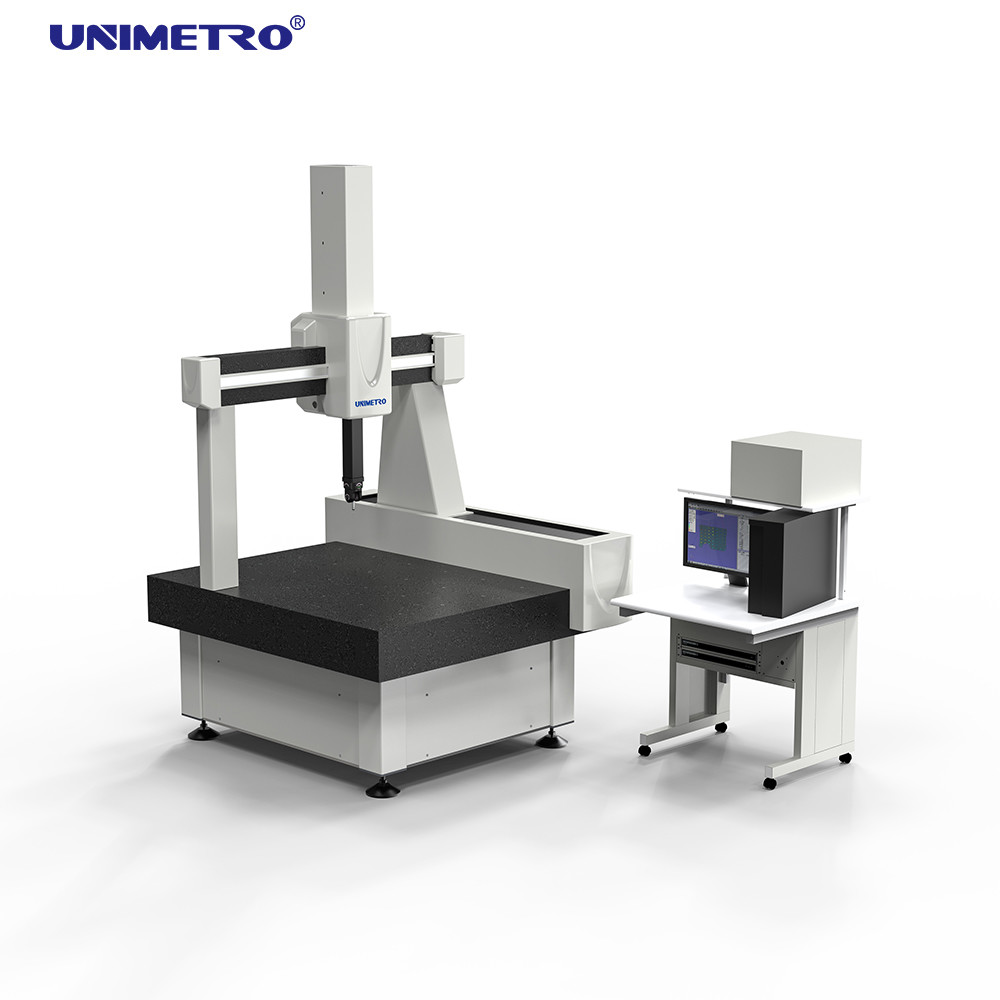

Helium Type 700*1000*600mm 3D CMM Se-mi Manual Coordinate Measuring Machine 0


PROBE FUNCTION

Probe head :MH20i manual head by RENISHAW


 Helium Type 700*1000*600mm 3D CMM Se-mi Manual Coordinate Measuring Machine 1


Repeatability of position:                           +0.5 μm

Positioning steps:                                         15°

Rotating axis :                                            +180°

Swing axis :                                               0°- 90°

With EM2 maximum extension:                140mm

Operational environment temperature:     10-40℃


Probe :TP20 SF module


Probe: M2 probe assembly

Number Name Specifications Qty
A-5004-7585 Probe extension rod 10mm 1
A-5004-7586 Probe extension rod 20mm 2
A-5000-2280 Probe extension rod 40mm 1
A-5000-7805 Ball probe Φ0.7×10mm 2
A-5000-7806 Ball probe Φ1×10mm 2
A-5000-3603 Ball probe Φ2×20mm 2
A-5000-3604 Ball probe Φ3×10mm 2
A-5000-4161 Ball probe Φ4×20mm 1
A-5000-2286 Ball probe Φ5×50mm 1
  Probe spanner   2
Total: 10 Type   16 pc
