Name: Semi-Automatic Vision Measuring Machine Designed for Electronics
Brand: Unimetro Precision Machinery Co., Ltd
SKU: EXTRA
Price: 20,500.00 USD
Availability: InStock

Detail Information

Dimension:	600740980mm	Measuring Range:	300200200mm
Measuring Accuracy:	2.5+L/100um	Repeatability:	2.5um
Weight:	190kg	Linear Scale Resolution:	0.5um(0.1um For Option)
Highlight:	Semi Auto Vision Measurement Machin , 2.5um Repeatability Vision Measurement Machine

Product Description

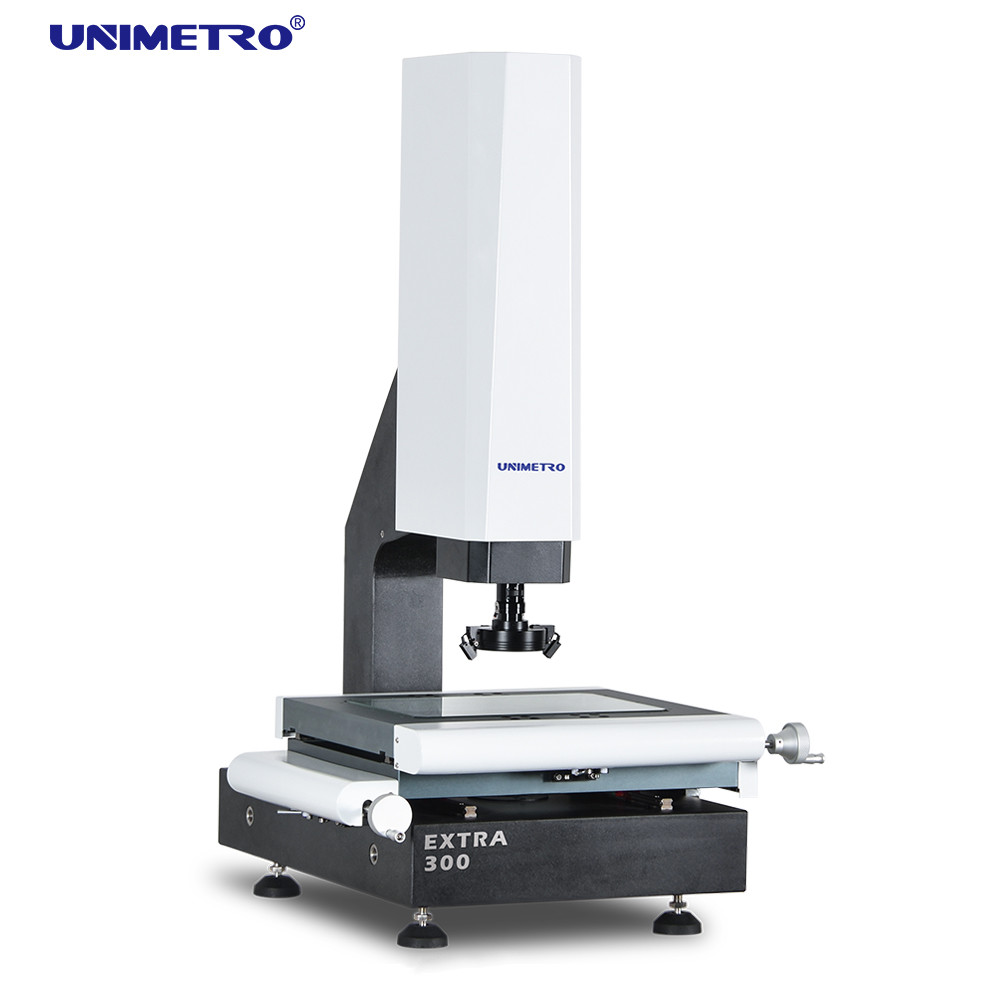

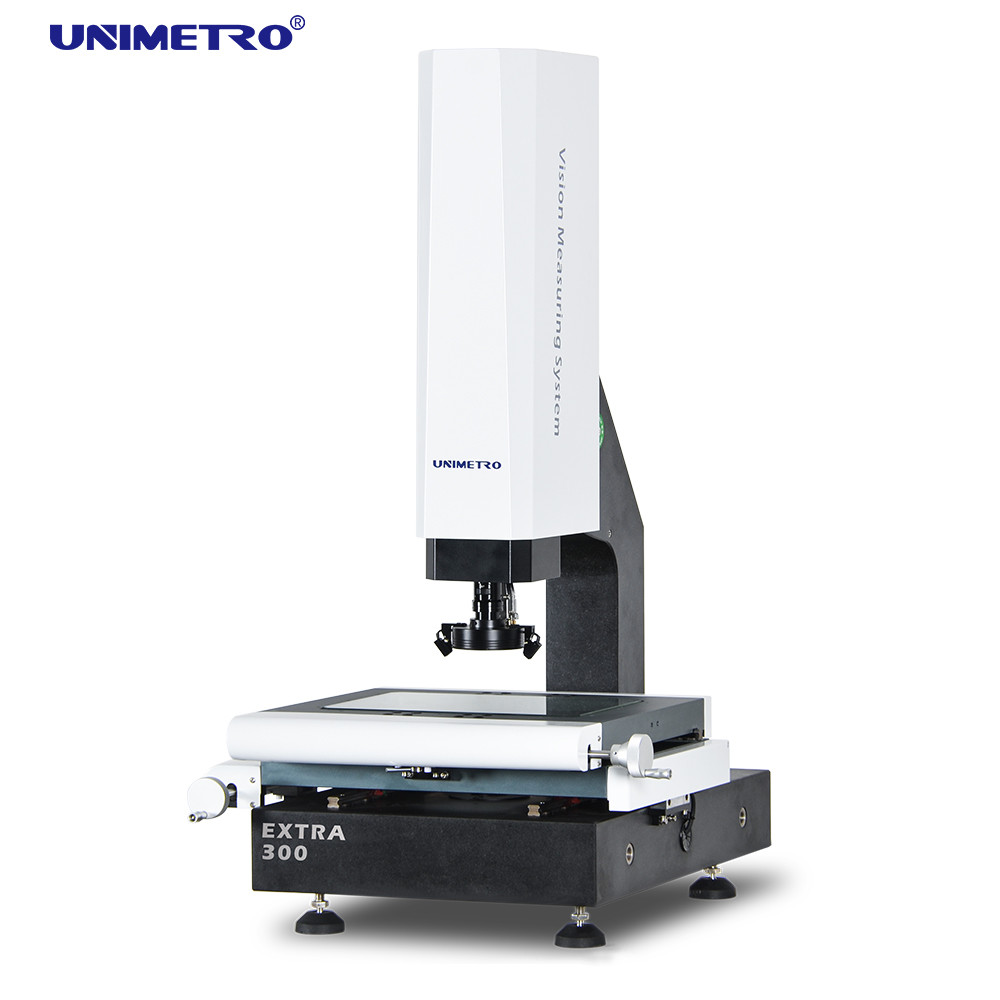

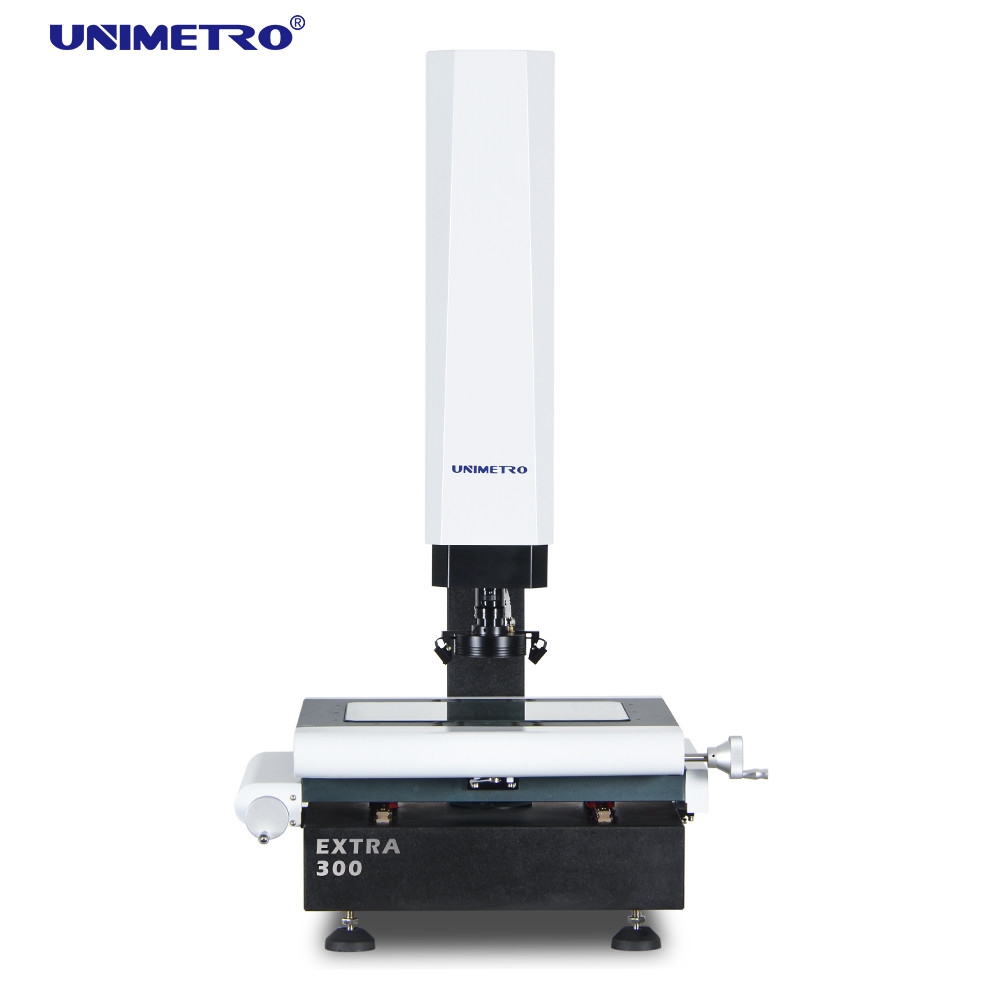

Semi-Automatic Vision Measuring Machine Designed for Electronics

Semi-Auto Optics Instruments With Z Axis Auto Focus

Application Overview

The EXTRA Series vision measurement machine is a precision optical instrument designed for accurate physical dimension measuring with micron-level accuracy. Utilizing advanced camera technology and sophisticated software analysis, it captures workpiece images and calculates precise 2D dimensions for quality control applications.

Ensures product dimension accuracy for enhanced competitiveness
Popular model suitable for various accurate 2D dimension measuring applications
Serves multiple industries including Mold, Electronics, Semiconductor, Plastic Injection, 3C products, Medical care, and Aviation

Key Features & Benefits

Z-axis configured with closed-loop servo motor system for high accuracy movement control and auto focus function
Manual pulse generator for fine Z-axis adjustment with micron-level precision
High-performance auto focus function enables fast, stable focusing and non-contact height measuring
Manual dented zoom lens with magnification signal feedback sensor for automatic parameter selection
1.2M pixel HD digital camera for high-quality imaging and increased measuring accuracy
High-accuracy linear guide way for superior dynamic performance

Target Industries

Mould Industry

Automobile Manufacturing

Medical Industry

Mechanical Manufacturing

3C Digital Industry

PCB Production

Hardware Configuration

3 axis 0.5μm resolution linear scales

High performance Auto focus function

Compatible with Renishaw touch probe

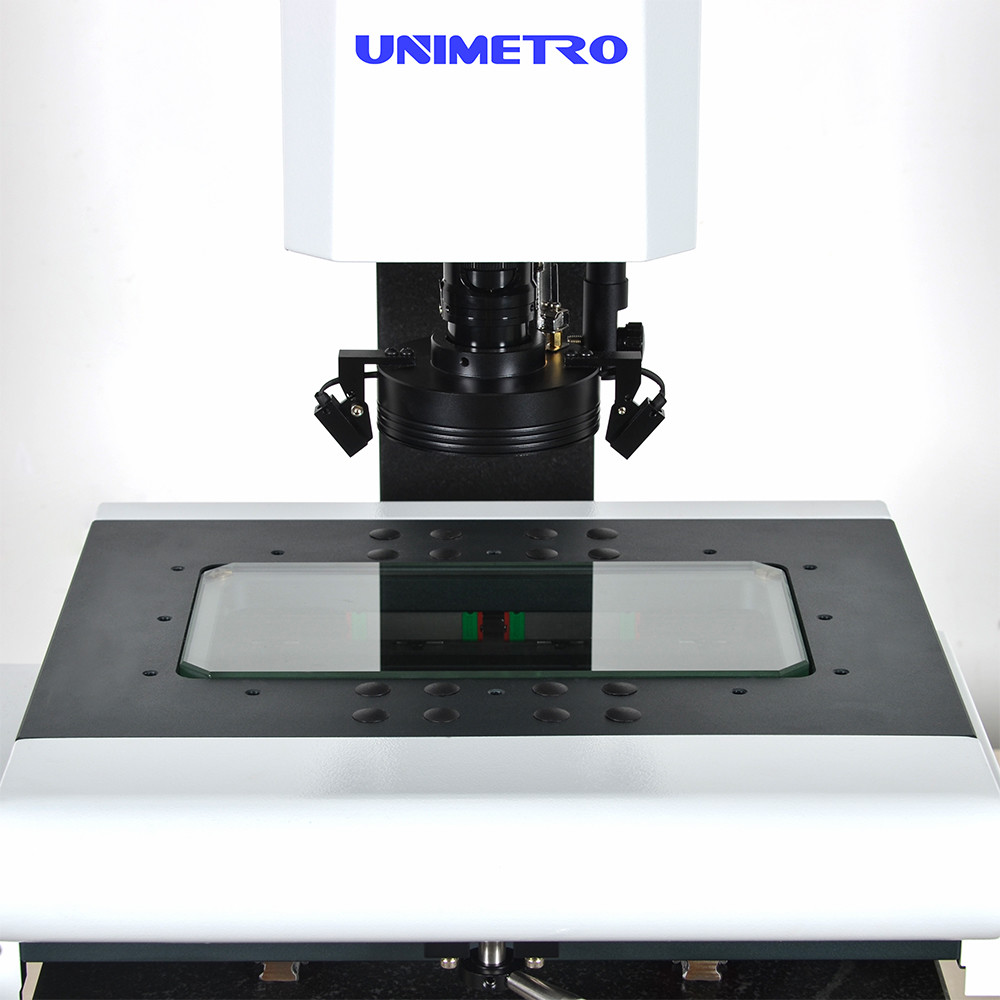

Aluminum work stage with hard anodizing

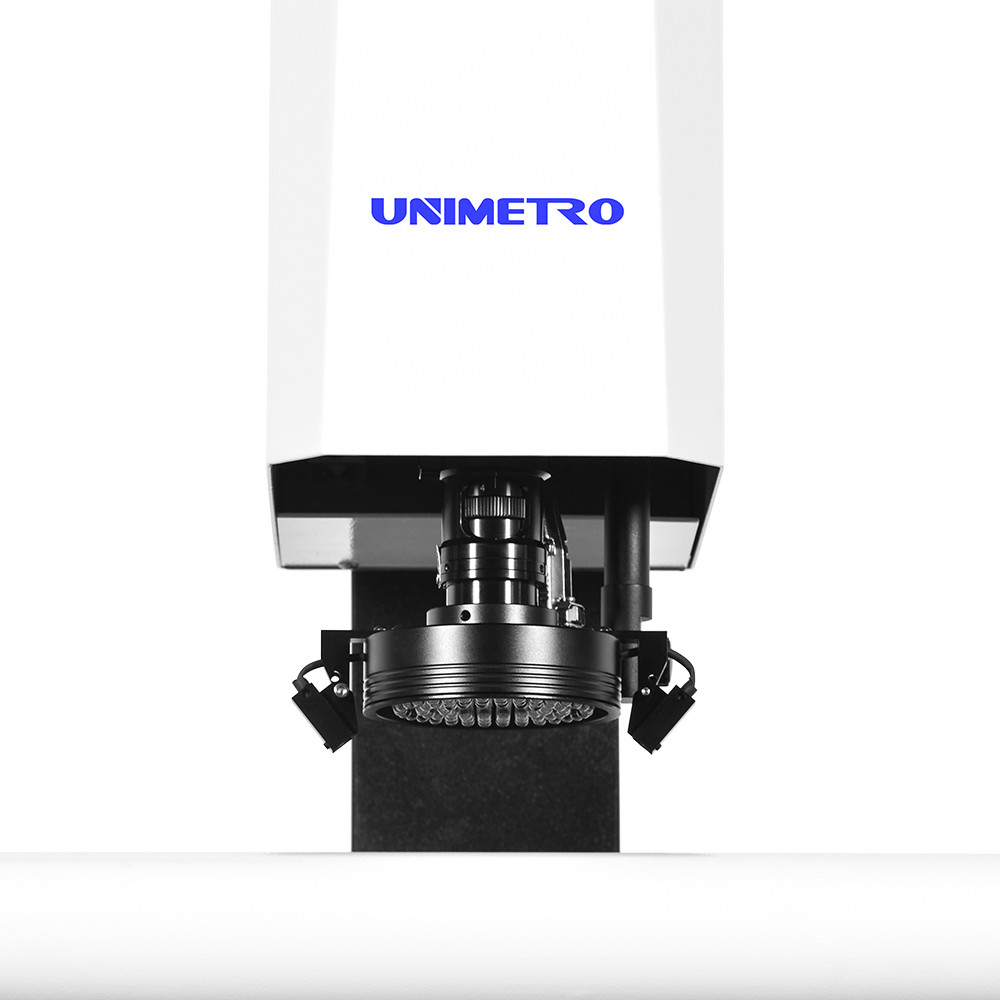

3 rings 8 section LED ring light software control

Parallel light path LED contour light

1.2M pixel HD digital camera

Integrated core control box

Z axis motorized control

HIWIN linear guide way

Manual pulse generator for Z axis control

Laser indicators for auxiliary positioning

0.7-4.5X manual dented zoom lens with feedback sensor

Advanced Features

Easy calibration

Multiple angle touching

Fast coordinates system setting

Compatible with Renishaw stylus full line

CAD module supported (Optional)

3D drawing output

Star probe compatible

3D dimension measuring

Image and touch probe combine measuring

Probe rack supported (Optional)

Technical Parameters

Model	EXTRA 200	EXTRA 300	EXTRA 400	EXTRA 500
Dimension (mm) (L×W×H)	500×540×930	600×740×980	700×840×980	800×940×980
Measuring range (mm) (X×Y×Z)	200×100×150	300×200×200	400×300×200	500×400×200
Measuring Accuracy (μm)	2.5+L/100	2.5+L/100	2.5+L/100	3+L/100
Repeatability (μm)	2.5	2.5	2.5	3
Weight (kg)	140	190	240	290

Image & Measuring Specifications

CCD: 200mm (customizable per customer requirements)
Lens: Manual dented zoom lens 0.7-4.5X / Auto zoom lens 1-10X
Magnification: 18-195X (Reference only - varies with camera and lens combination)
Field of View: 8.1~1.3mm
Working distance: 108mm
Linear scale resolution: 0.5 μm (0.1μm optional)
Driving system: X, Y axis manual control, Z axis close-loop CNC control with AUTO FOCUS function
Illumination: Programmable 4 sections LED ring surface light, parallel LED contour light, 8 sections LED ring light, co-axial (optional)

Software Capabilities

Powerful software functionality enables fast and precise measuring with full English language UI and support for additional language development.

CAD file input and measurement

Parts array and macro measuring

Auto focus and height measuring

Navigation function for fast locating

Powerful geometric measuring function

Multiple data reports and graphical output

Flexible user programming

Reference elements creation

Advanced edge detection

Multiple external accessories support

Automatic geometrical tolerance calculation

Fast measurement of complex productions

Place of Origin:	China
Brand Name:	UNIMETRO
Certification:	CE,ISO
Model Number:	EXTRA

Minimum Order Quantity:	1
Price:	Discussible
Packaging Details:	Wooden case
Delivery Time:	5~15days
Payment Terms:	L/C,T/T
Supply Ability:	40
