Name: Bridge-Type CMM High Precision CNC Control System Granite Platform 3D Measuring Equipment
Brand: Unimetro Precision Machinery Co., Ltd
SKU: FLY Series
Price: 20,500.00 USD
Availability: InStock

Detail Information

Power:	Electronic	General Use:	Electrics,plastic,mold,machinery,connectors And Mobile
Function:	Measuring And Inspection	Weight:	900KG
Warranty:	1 Year
Highlight:	coordinate measuring machines , optical coordinate measuring machine

Product Description

Bridge-Type CMM Measuring Equipment with Electronic 3D Coordinate Measurement

Electronic 3D Coordinate Measuring Machine / Bridge-Type CMM Measuring Equipment

FLY Type Technical Scheme
UCC+ Visual DMIS CNC CAD+ PH10T+TP20

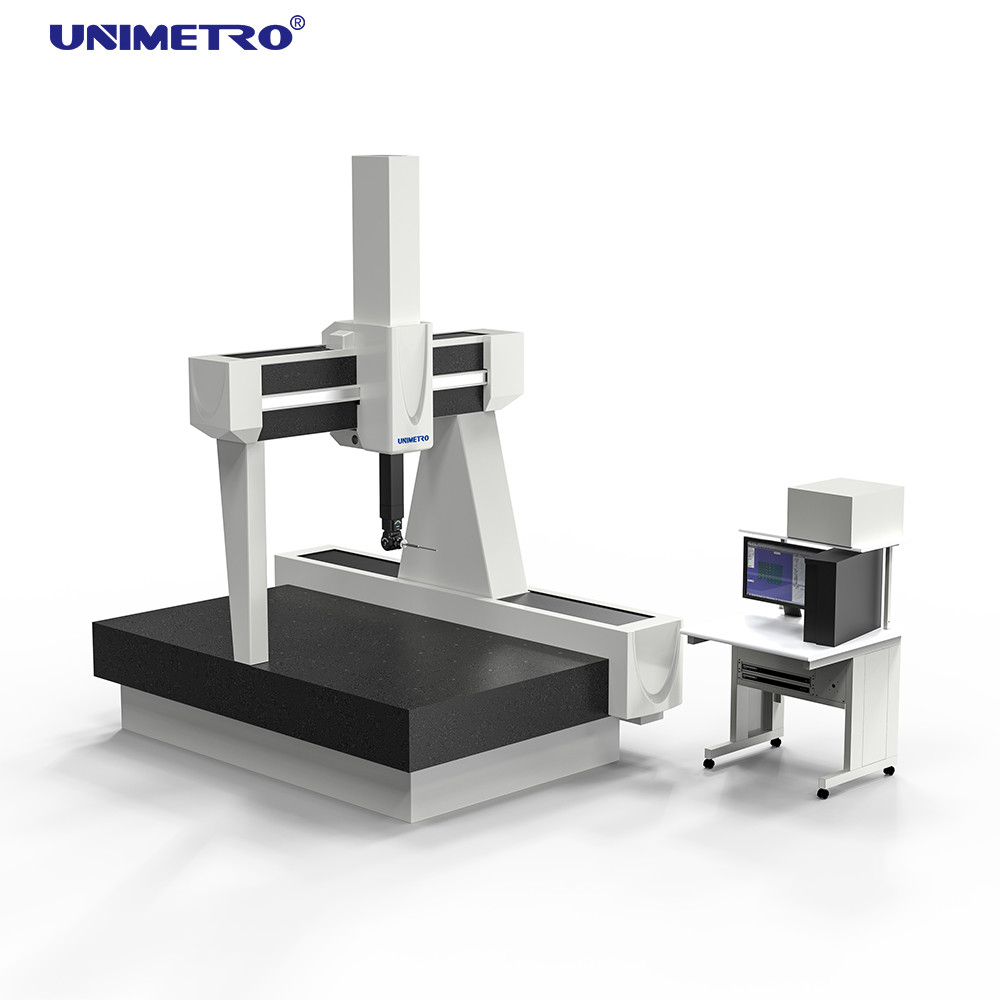

The FLY series is a gantry mobile fully-automatic coordinate measuring machine manufactured by our company. It features powerful functionality, stable performance, high precision, simple operation, fast and efficient operation, and convenient maintenance. The control system and software functions are at an advanced international level. Compared with other product series, this series offers simple structure, strong bearing capacity, open workspace for workpiece placement, and convenient loading/unloading.

Key Features

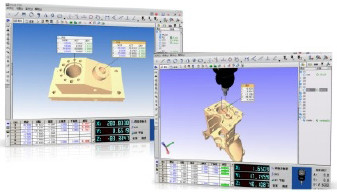

Visual DMIS CNC CAD+ Measurement Software: PTB-certified software with Chinese and English language support, providing advanced technology, comprehensive functionality, stable performance, and simple operation.
Host Construction: Utilizes grade 00 special high-quality granite platform and three-axis guide rails, precision-cast aviation aluminum alloy columns, RENISHAW high-precision grating system, SMC precision air filter and automatic detection control, international brand DC servo motors, German FESTO pneumatic components, high-quality air bearings, non-linear spring system from Germany, Gates high-performance synchronous belts, precision ball bearings from the United States, and automotive-grade industrial finish.
Control System: RENISHAW UCC control system specifically designed for CNC CMM, employing separation of control and application layers for high accuracy and efficiency. Uses Ethernet interface for computer communication without additional expansion cards, ensuring high reliability.

Technical Specifications

MODEL	FLY	654	866	1086
Measuring Range (mm)
X-AXIS	500	600	800	800
Y-AXIS	600	800	1000	1200
Z-AXIS	400	600	600	600
Dimensions (mm)
Length	1420	1740	1940	2140
Width	1135	1420	1620	1620
Height	2310	2760	2760	2760
Air Supply (MPa)	0.6~0.8
MPEe (µm)	1.5+L/300 2.3+L/300	1.7+L/300 2.6+L/250	1.7+L/300 2.7+L/250	1.7+L/300 2.7+L/250
Max. Loading (kg)	500	800	1000	1000
Weight (kg)	900	1300	1700	1900

Product Images

Our Clients & Agents

Frequently Asked Questions

Q1: Are you a factory or trading company?

A1: We are a factory and provide responses within 24 hours.

Q2: What does your company mainly produce?

A2: We primarily manufacture Vision Measuring Machines, Coordinate Measuring Machines, CMM & VMM fixtures, and related equipment.

Q3: How to Choose the Appropriate Specification?

A3: Our professional team will recommend suitable specifications based on your product variety and measurement requirements.

Q4: Do you accept customized service?

A4: Yes, we provide both standard machines and custom solutions tailored to customer needs.

Q5: What is your warranty period?

A5: Our products come with a 1-year warranty. We have enhanced durability on breakable parts and maintain stable product quality.
