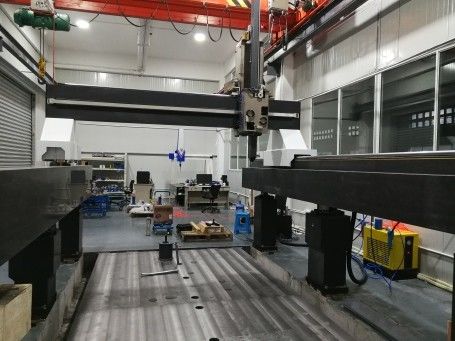

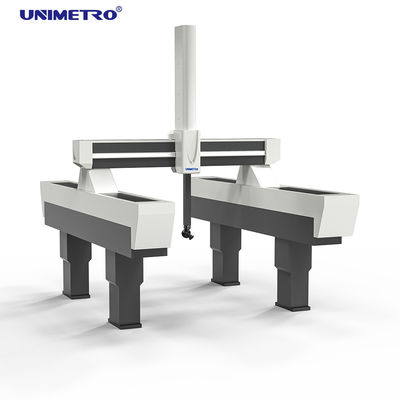

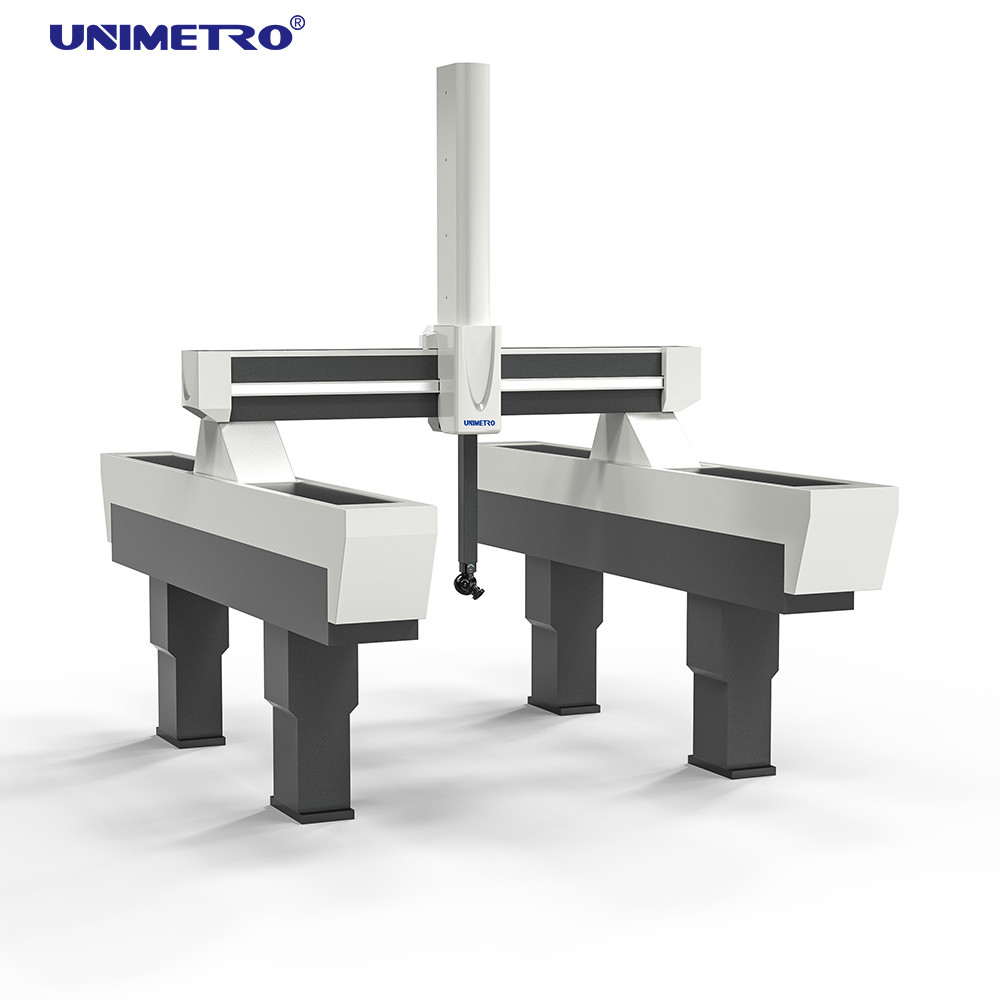

Gantry-Style CMM with High Precision Grating Ruler, Fully Enclosed Granite Guideways, and Four-Sided Air-Floating Rail for Automotive Inspection

The Xe series gantry-type three-coordinate measuring instrument features an overhead laser structure design, delivering high precision performance ideal for measuring jacks and complex part structures. Available with optional trigger probes, analog scanning probes, or scanning probes to meet diverse measurement requirements.

This system provides effective solutions for companies dealing with large-scale structural parts, addressing challenging measurement problems across various industrial applications.

Software System: Rational-DMIS Advanced version (CAD) with manual and disk

Control System: RENISHAW control system with MCU joystick

Probe Options: RENISHAW MH20i/MCP/PH10T+TP20/PH10M+TP200/PH10M+SP25M/PH10MQ+SP25M

Probe Stylus: RENISHAW M2 M3 stylus

High repeatability: One-way repeatability ≤1μm

• Automobile engine and gearbox parts
• Aviation blades, engines and aircraft parts
• General Precision Engineering
• Pharmaceutical Manufacturing

• Three-axis guideway - fully enclosed, all granite material: Enclosed guide rails protect against dust erosion and environmental contamination. All three axes are granite construction for corrosion resistance and consistent thermal expansion coefficients.
• Grating ruler - Renishaw high precision grating ruler: Features Renishaw's latest high-precision Tonic grating ruler for exceptional measurement accuracy.
• Air-floating guide rail - surrounded design on all sides: Four-sided air-floating guide rail structure with multiple air pressure regulating valves and air bearings for maximum stability during movement.

Rational-DMIS is a comprehensive 3D measurement software package developed with both beginners and advanced users in mind. The software features a native DMIS kernel (version 5.0) and complies with ISO standard 22093:2003, setting the standard for CMM measurement software.
