Motorized Zoom Lens Industrial Lens Servo Motor Controller Auto Focus Control

Basic Information
Place of Origin: China
Brand Name: UNIMETRO
Model Number: UNIL-AZ
Minimum Order Quantity: 1
Price: Discussible
Packaging Details: Paper box
Delivery Time: 5 work days
Payment Terms: T/T
Supply Ability: 50 per month
Detail Information
Motor: DC Servo Control Mode: Full Close-loop
Operation System: Win XP / Win 7 Controller Axis: Single Axis Or Double Axis
Communication: RS232 Or USB
High Light:

Telecentric Zoom Lens

,

machine vision Lens


Product Description



Motorized Zoom Industrial Lens Servo Motor Controller Auto Focus Control

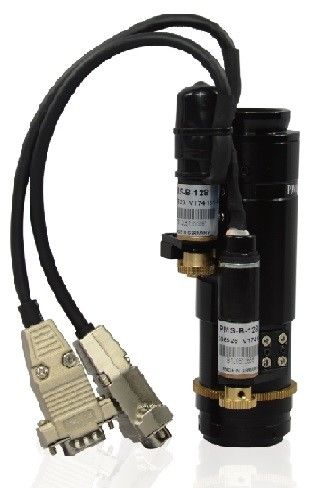

Motorized zooming and controller


To satisfy the requirement of fast and precise measuring and rapid locating during the measuring processing, based on years of optical design experience and automation control technology, we have developed the UNIL-AZ series optical motorized zoom lens and the controller.


                                           Motorized Zoom Lens Industrial Lens Servo Motor Controller Auto Focus Control 0




Features


● High zooming speed and high repeatability.
● Using high performance DC servo, full close-loop control.
● Supporting Win XP / Win 7 operation system.
● Motorized zooming and focusing.
● The mechanical parts remain the stability even in the environment of vibration.

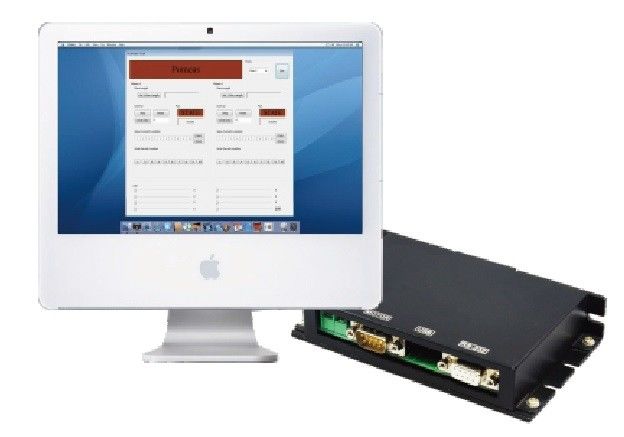

Motorized lens controller

● All the motorized zoom lens supported.
● Full integration motion control.
● The motion control system is able to achieve single axis or double axis control through RS232 or USB.
● Offering software original codes for OEM platform.


Motorized Zoom Lens Industrial Lens Servo Motor Controller Auto Focus Control 1



Advantage of motorized zoom lens

● Electronic fixing magnification function:

● Combining the sensor technology and the microscope system optic technology, the auto zoom series products is able to identify the magnification information of the lens in realtime through the host computer, users do not need to calibrate when changing the magnification. Users can achieve fluent measuring because of avoiding the magnification selecting error.


Motorized Zoom Lens Industrial Lens Servo Motor Controller Auto Focus Control 2


Co-axial EPI illumination

● Using infinity parallel lighting system, illumination without shadow.
● The even illuminating design offers amplification effect with higher quality.
● The co-axial illumination offers clear observing image when using high resolution cameras.


Motorized zooming

● High speed zooming and focusing, high repeatability, using hih performance DC servo motor, full close-loop control.
● The motion controller achieves single axis or double axis control through 9 PINs RS232 interface.
● Keep stable in vibrating environment.


Motorized Zoom Lens Industrial Lens Servo Motor Controller Auto Focus Control 3 Motorized Zoom Lens Industrial Lens Servo Motor Controller Auto Focus Control 4


Dented zooming

● High accuracy zooming, high repeatability.
● 15 section mechanical locating.
● Using high rigidity alloy material, ling life cycle, stable mechanical structure.


Fine adjusting device

● Fine combination, able to adjust the focusing within 0mm-3mm (12mm) range.
● Combination of outstanding curve and optical design.
● Zero gap precise coordination, no effect to the image in any position.


Motorized Zoom Lens Industrial Lens Servo Motor Controller Auto Focus Control 5 Motorized Zoom Lens Industrial Lens Servo Motor Controller Auto Focus Control 6
