Surface Shape Measuring Machine With Preferential price

Surface Shape Measuring Machine With Preferential price

  • Surface Shape Measuring Machine With Preferential price
Surface Shape Measuring Machine With Preferential price
Product Details:
Place of Origin: China
Brand Name: UNIMETRO
Certification: CE,ISO
Model Number: SE1000
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Discussible
Packaging Details: Wooden Case
Delivery Time: 15~20 work days
Payment Terms: L/C, T/T
Supply Ability: 30
Contact Now
Detailed Product Description

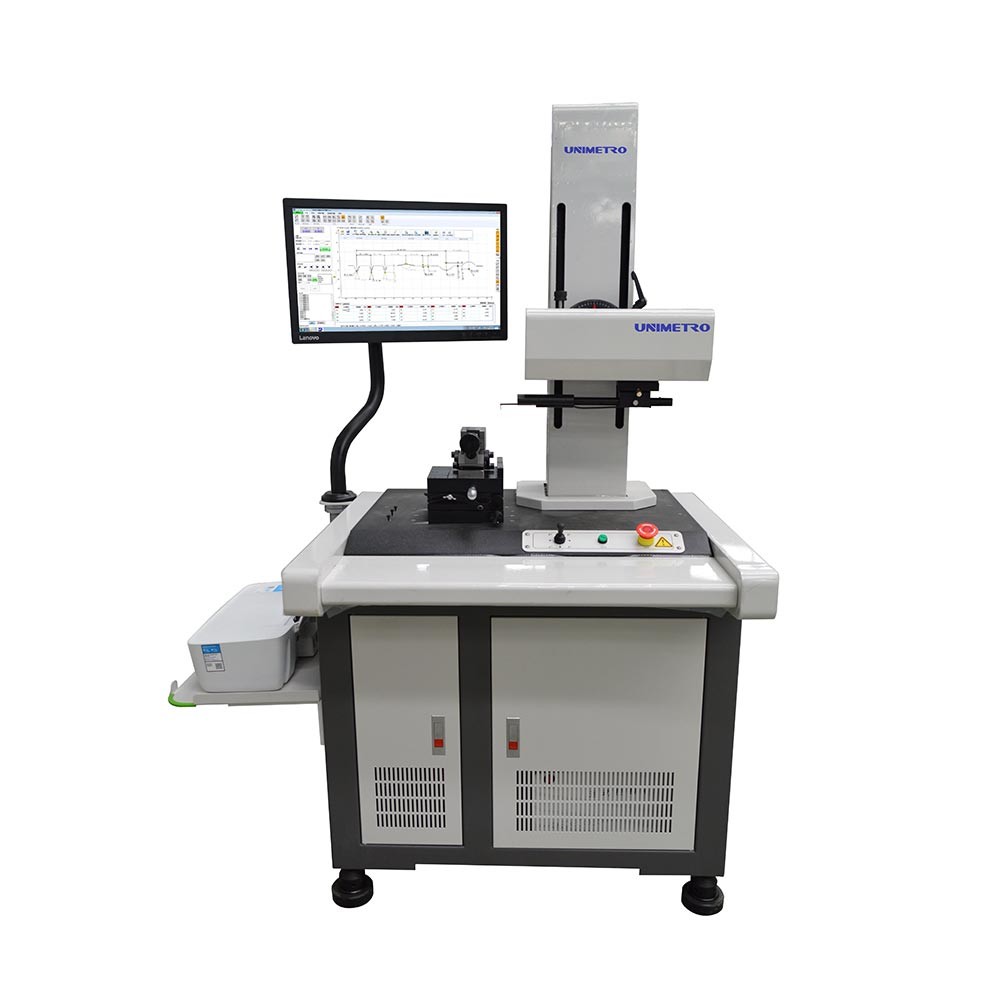

Product Name: Surface Shape Measuring Machine Driver Measurement: 100mm
Driver Resolution Ratio: 0.2um Sensor Measurement: +-0.5~+-5mm
Sensor Resolution Ratio: 65536:1 Column: 320mm
Z1 Linear Accuracy: ≤±0.15%f.s. Pt5: ±0.3μm

Surface Shape Measuring Machine



Characteristic:

● Standard type, low cost
● Standard Inductive Profile Sensor
● High Precision Profile Measurement with Small Range



Surface Shape Measuring Machine Measurement Function

◆ Size: Including horizontal distance, vertical distance, linear distance, radius, diameter

Inclusion angle: Including horizontal angle, vertical angle, angle

Position tolerance: Including parallelism and perpendicularity

Shape tolerance: Including straightness, convexity, arc profile

Auxiliary Generation: Including Auxiliary Points, Auxiliary Lines and Auxiliary Circles



Surface Shape Measuring Machine Measurement Range

Item Measurement Resolution ratio
Driver 100mm 0.2μm
Sensor ±0.5mm~±5mm 65536:1
Column 320mm -



Surface Shape Measuring Machine Technical Specifications

Technical Specifications Z1 Linear Accuracy1 ≤±0.15%f.s.
Pt5 ±0.3μm
Angle3 ±2′
Straightness4 0.5μm/100mm
Motion Control X-axis drive mode Electricity
Z-axis drive mode Electricity
X-axis drive speed 0.1~10mm/s
Z-axis drive speed 0.5-10mm/s

Note: 1. H is the measuring height in horizontal position; 2. 2 mm < R < 10 mm standard ball, sampling arc angle is 120 degrees; 3. 60 degree, 90 degree angle block, corner sampling length is 5 mm; 4. lambda C is 2.5 mm, measuring speed is less than 0.3 mm/s; 5. 2 mm < R < 10 mm standard ball, sampling arc angle is 120 degrees 6. above parameters are all measured at 20 ~5 C, step temperature is not more than 2 C/h. 7. The maximum RMS of ground vibration is less than 50 HZ 2.5 um/s/>50 HZ 5.0 um/s.



Surface Shape Measuring Machine Equipment Configuration



Category Part name Specification No. Quantity
Host part One-in-One Standard Machine Table cp-mp1 1 set
Standard column cp-cn-sb 1 set
Standard Driver cp-d-sspm 1 set
Standard Inductive Profile Sensor cp-ztr-ic-01 1 set
Electrical control system cp-mc 1 set
signal processing system cp-sip 1 set
Software CMS 1 set
Enclosure Computer cp-01 1 set
Printer pr-1 1 set
Standard Adjustment Table cp-br-150 1 set
Precision sinusoidal platform clamp fq-4 1 set
Hold-all tb-10 1 set
Calibration standard parts   1 set
Spring quick disassembly straight rod sq-2-18-163.5-s 1 pc
Single-section needle D-2-18-17 1 pc
